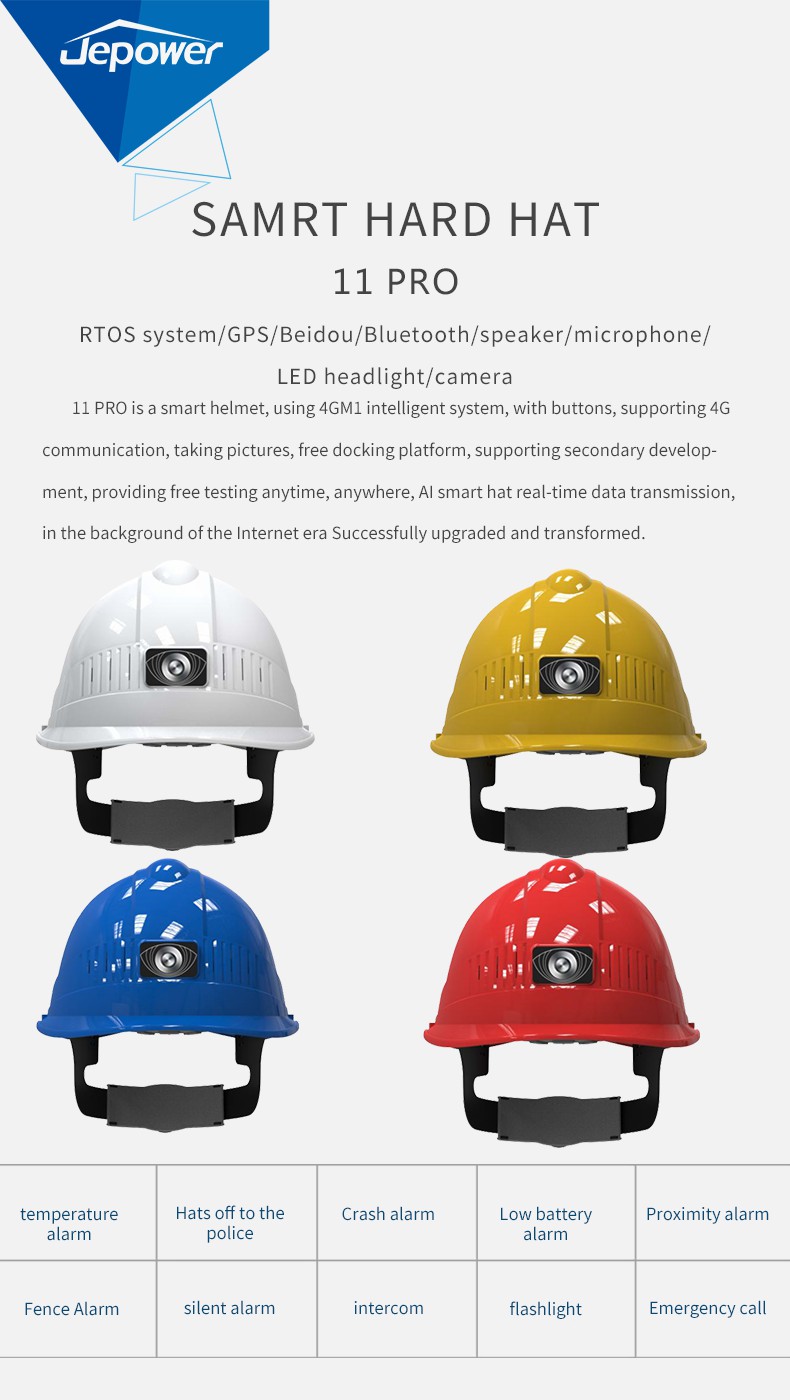

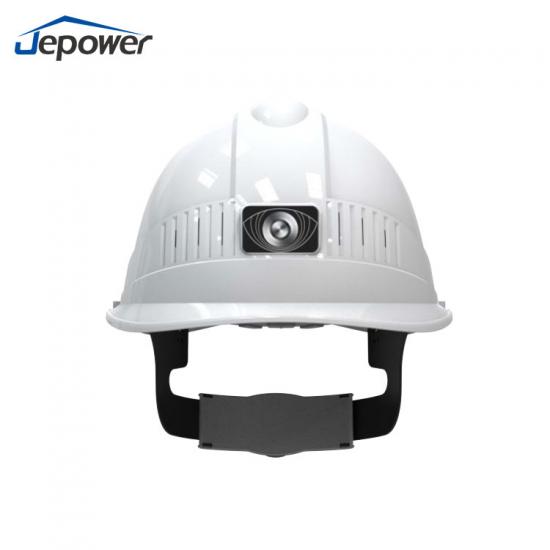

model：11Pro android/4G/call/position/Hazard Alert/video/game camera smart hard hat
Brand:
JepowerItem NO. :
11ProProduct Origin:
guanzghouColor:
white yellow blue redShipping Port:
guangzhouLead Time：
75G smart hard hat construction With Camera Live Streaming Camera For Construction sensorabs camera gps smart hard hats

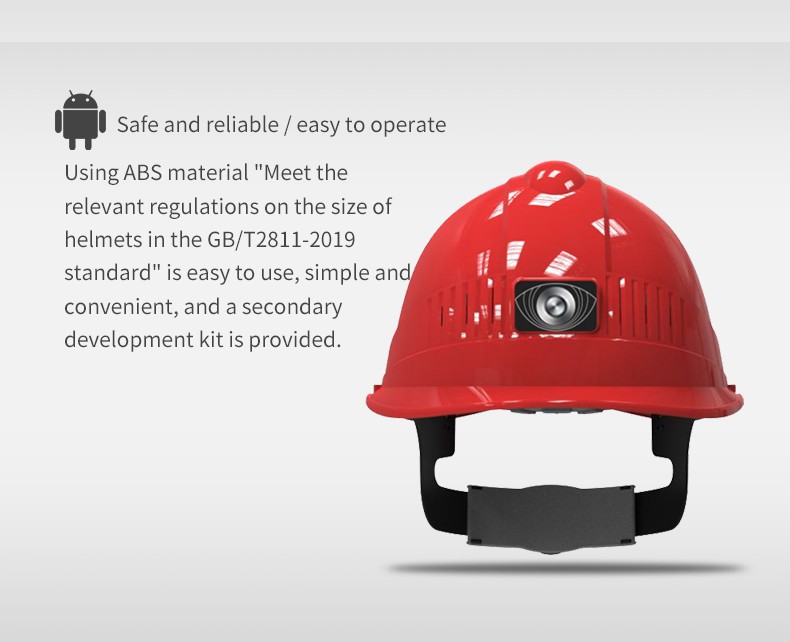

11 Pro smart hard hat is designed according to GB/T2811-2019 standard
Smart hard hat can take pictures Bluetooth, 4G, lighting, positioning wifi microphone
Smart hard hat can also be used for temperature alarm, cap removal alarm, impact alarm, low battery alarm, electronic fence, silent alarm, battery query, video recording, photo taking, intercom, video call, LED lights, etc.
Near battery alarm (Al voice wake-up onand off, whether the buzzer sounds depends on whether the helmet isworn or not)
Explosion proofsupport EX Ib llCT4

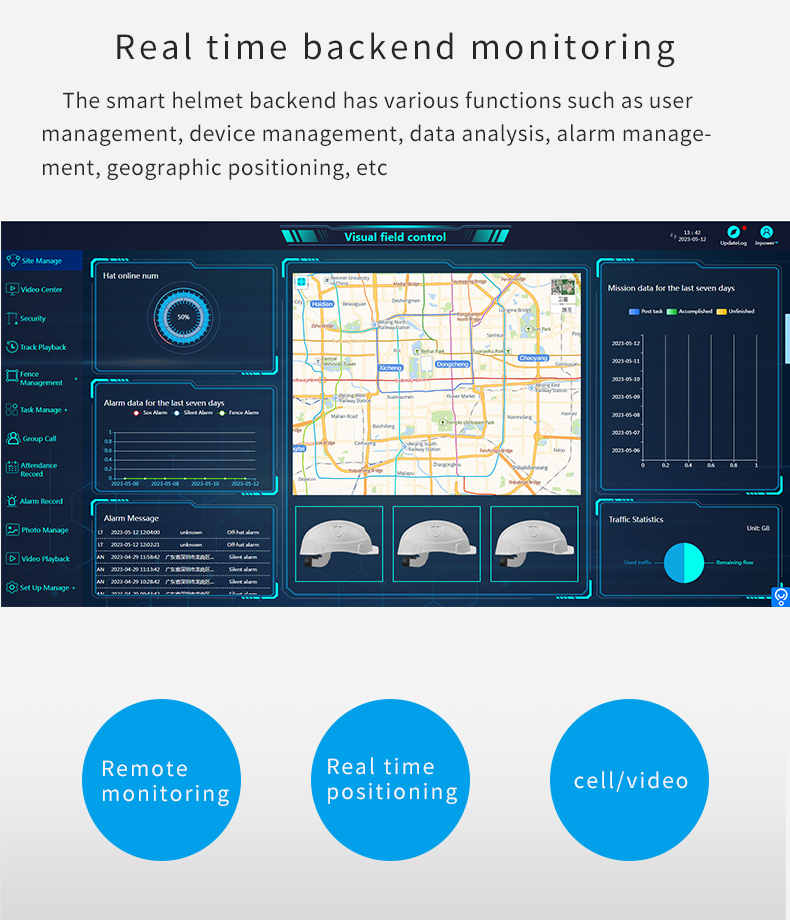

device management, data analysis, alarm management, geographic positioning, etc
Remote monitoring/Real timepositioning /cell/video

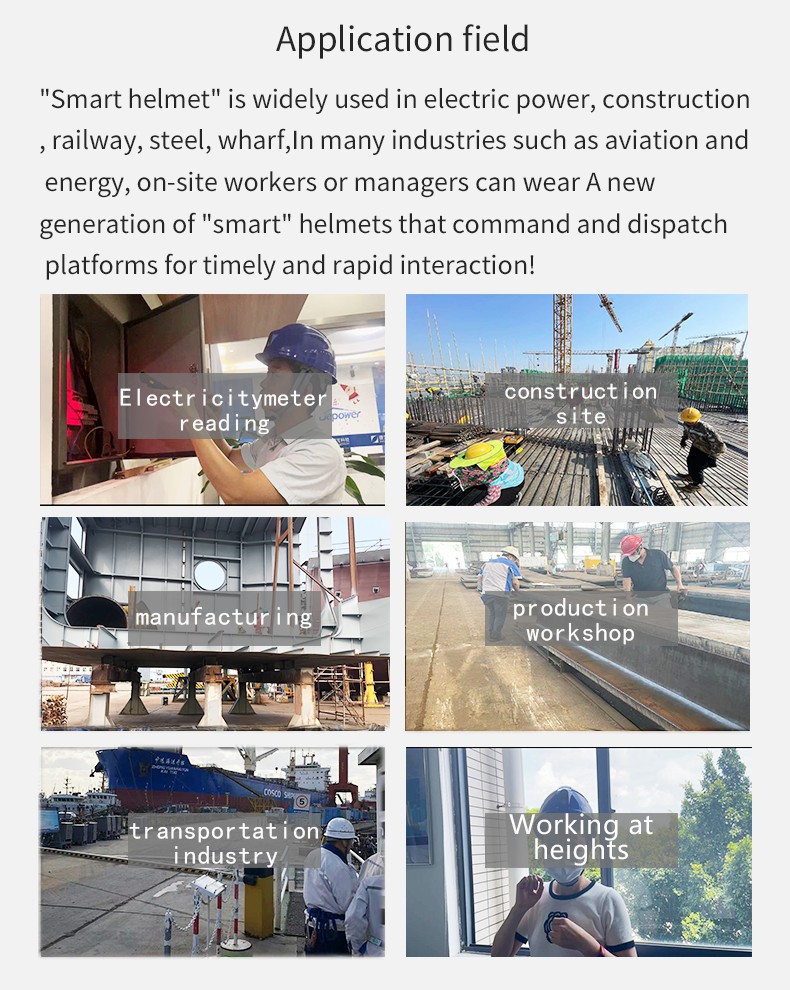

11 Pro smart hard hat Application field
"smart hard hat" is widely used in electric powerconstruction,railway,steel, wharf,In many industries such as aviation and energy,
on-site workers or managers can wear A newgeneration of "smart" helmets that command and dispatch platforms for timely
and rapid interaction!
|
type |
project |
describe |
|

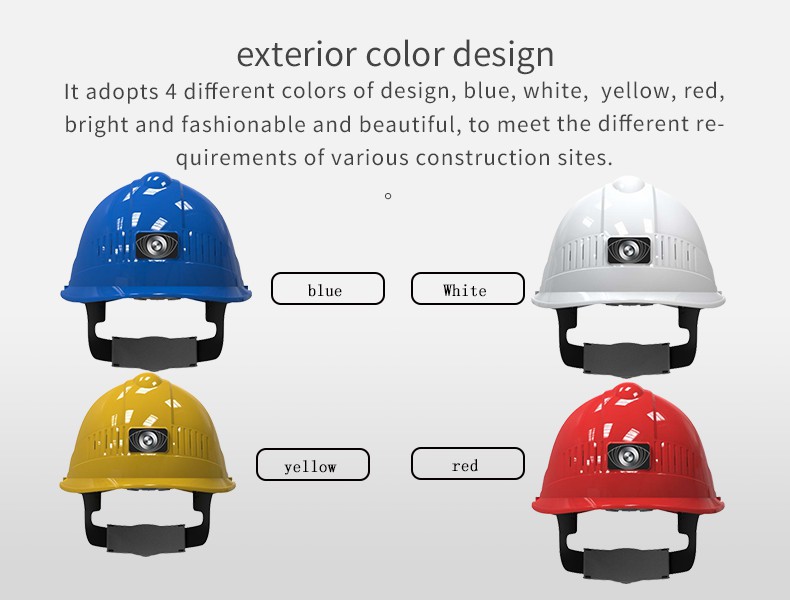

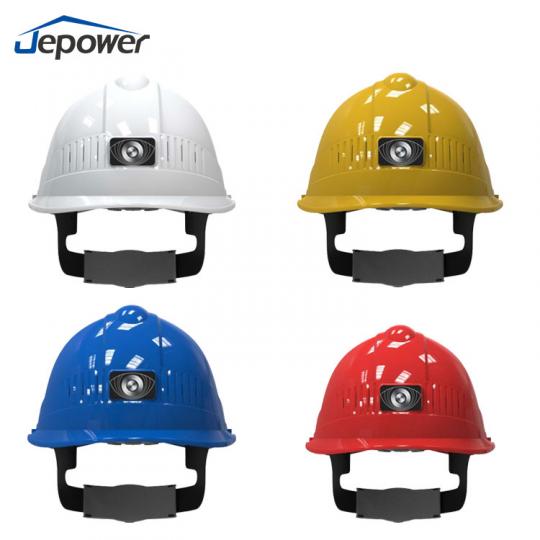

Appearance and color
|
appearance
|
|
|
colour |
Customize according to requirements (white, red, yellow, blue) |
|
|
|
LOGO |
Customized logo for customers can be printed on the front |
|
Size and weight |
texture of material |
ABS material |
|
size |
280mm * 224.5mm * 156.5mm (length, width, height) |
|
|
weight |
Designed according to GB/T2811-2019 standard |
|
|
Material and protective performance |
Impact absorption |
Safety helmet size ≤ 500g |
|
Anti puncture |
Designed according to GB/T2811-2019 standard |
|
|
IP rating |
Designed according to GB/T2811-2019 standard |
|
|
Fall prevention |
On the basis of iP66, it can protect against alcohol spray |
|
|
Computing and Storage |
CPU |
4GM1 |
|
RAM |
4MB |
|
|
ROM |
8MB |
|
|

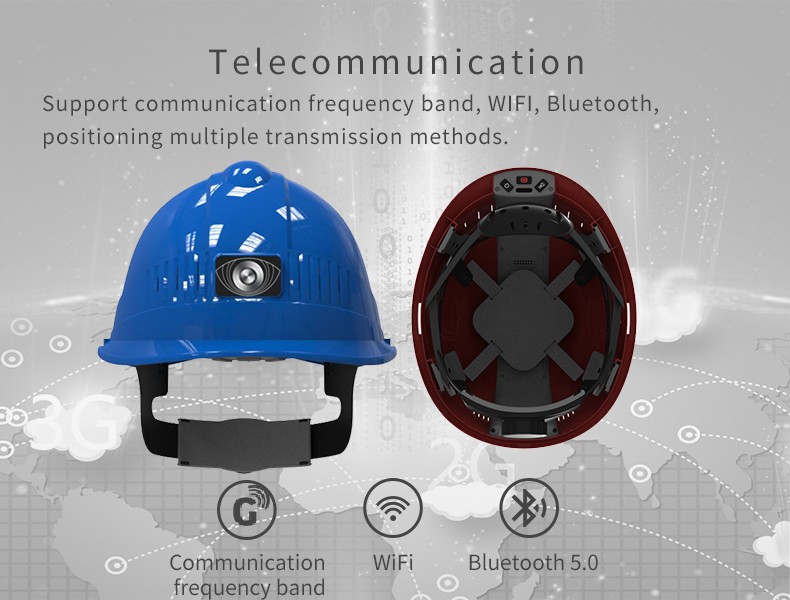

Communication and positioning |
Communication frequency band |
l FDD: B1 B3 B5 B7 B8 B20 l TDD: B38 B39 B40 B41 · GSM: Band B2\3\5\8（900/1800MHz） |
|
location |
Support GPS, Beidou positioning, precise positioning (hardware, structure reserved RTK, UWB positioning) |
|
|
WIFI |
Support scanning hotspots and assisting in localization |
|
|
Bluetooth |
Supports Bluetooth 5.0 or higher and can be connected to Bluetooth beacons (optional) |
|
|
antenna |
1 main antenna+1 GPS ceramic antenna+1 near-field antenna+Wifi/BT antenna (reserved) |
|
|
External interface |
Data and charging port |
TypeC port |
|
SIM card slot |
Supports Nano SIM card (built-in) |
|
|
Battery and endurance
|
Battery specifications |

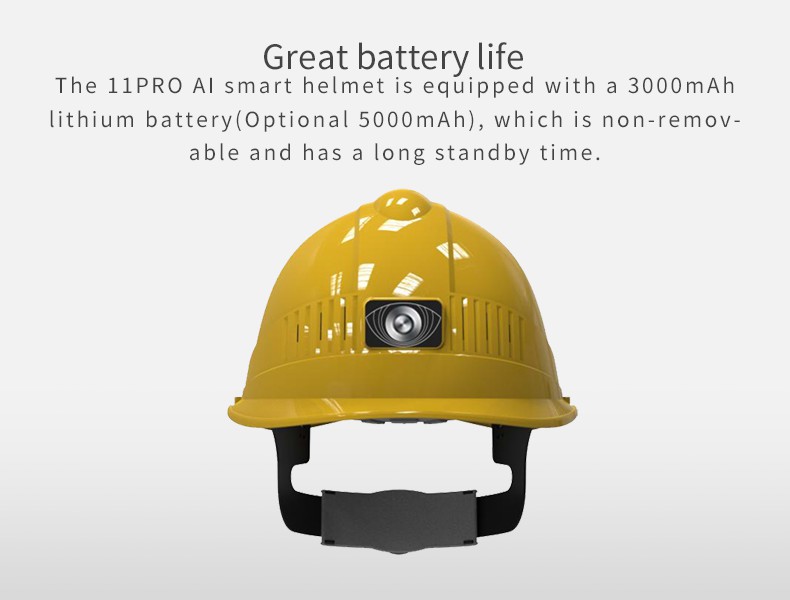

· Capacity 3000mAh (optional 5000mAh) · built-in |
|
Battery life |
Normal operating conditions ≥ 30 hours |
|
|
peripheral |
speaker |
Single speaker |
|
Microphone |
single microphone |
|
|
LED lighting fixtures |
Maximum power support of 1W |
|
|
sensor |
sensor Height sensing gyroscope G-Sensor Sense of Distance |
· Pressure HP5806 realizes height alarm and temperature alarm (customized function) · Hat removal alarm · Impact alarm · Falling alarm |
|
Key |
Power button Sos button Intercom button Reset button (hidden) |
· Power button: Long press power/short press switch flashlight · SOS button: Short press SOS emergency call/long press switch near power function · Reset button (hidden): Long press and hold for 5-7 seconds to restart the hat · Intercom button: Long press intercom/Short press battery level inquiry (in network mode)/Short press to reset height/Short press to cancel drop impact alarm sound effect |
|
indicator light |
Tri color lamp |
· The blue light stays on when the device is turned on · Work blue light once every 10 seconds · The red light stays on during charging · The green light remains on when fully charged |
|
parts |
Adapter |
one 5V1A |
|
data line |
A 1-meter-long TypeC cable |
|
|
lining |
1pay |
|
|
work environment |
working temperature |
-10℃～60℃ |
|
Working humidity |
10%～60% |
|
|
authentication |
|
3C |
Smart hard hats typically have the following features:
Safety functions: Smart hard hats usually provide high-level protection, preventing workers from head impact, puncture, and other injuries. In addition, some smart hard hats can detect whether workers are wearing them and issue an alert as a reminder.
Communication functions: Smart hard hats typically have built-in wireless communication modules, allowing them to communicate with other devices, such as smartphones or computers, via Wi-Fi or Bluetooth.
Sensors: Smart hard hats usually contain multiple sensors, such as accelerometers, gyroscopes, and temperature sensors, to detect environmental parameters such as temperature, humidity, and light.
Data recording: Smart hard hats can record workers' working hours, location, tasks, and other data, and transmit this information to the cloud for analysis.
AR/VR functions: Some smart hard hats can be equipped with augmented reality (AR) or virtual reality (VR) functions, providing workers with more intuitive job guidance and training.
Power management: Smart hard hats usually have built-in batteries and charging management systems to ensure long-term use and fast charging.
Comfort: Smart hard hats usually have a lightweight design and breathable materials to provide a comfortable wearing experience.
