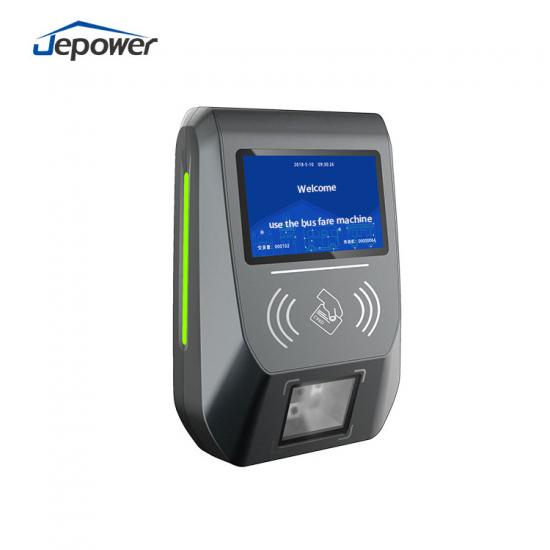

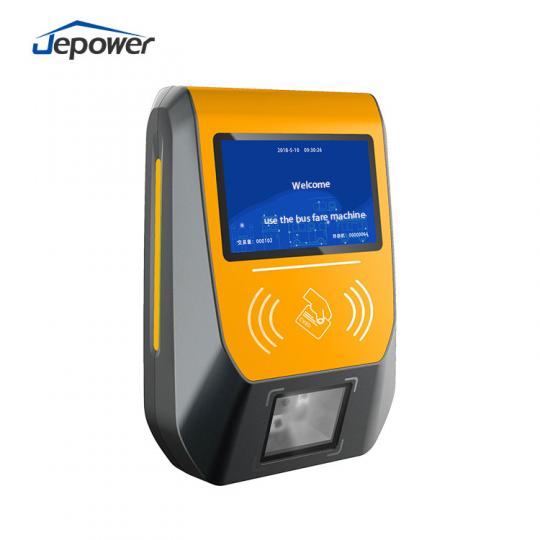

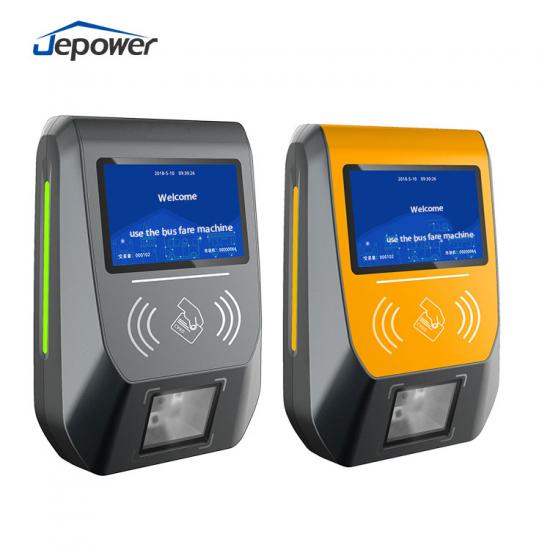

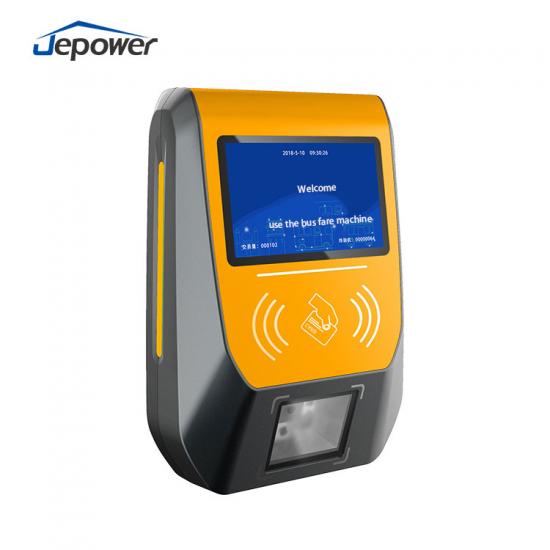

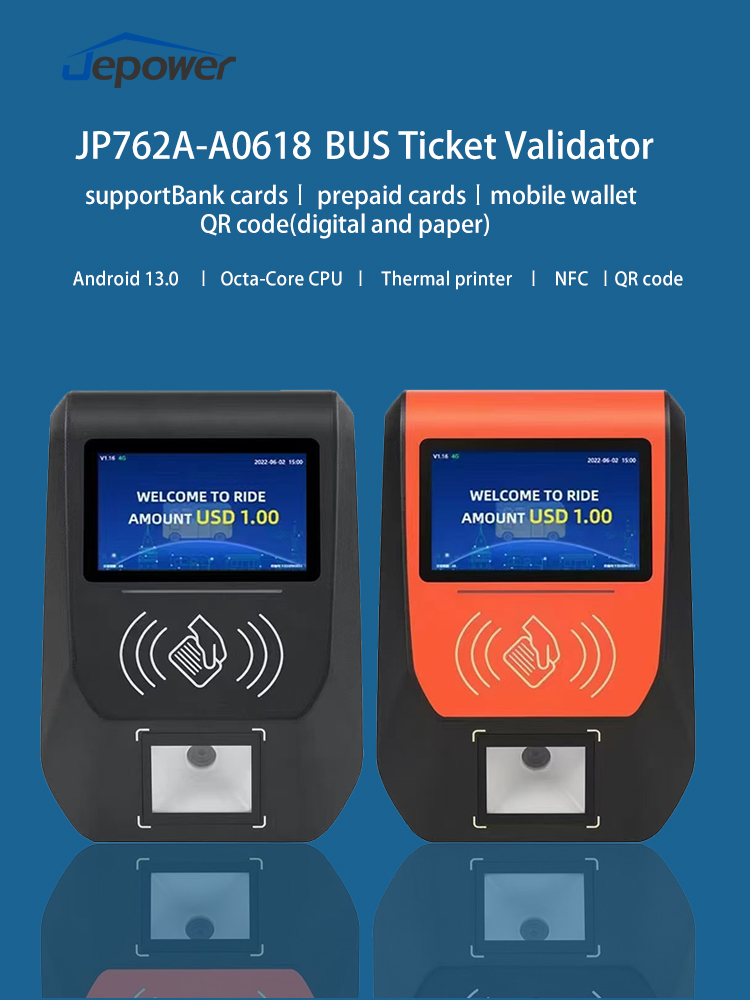

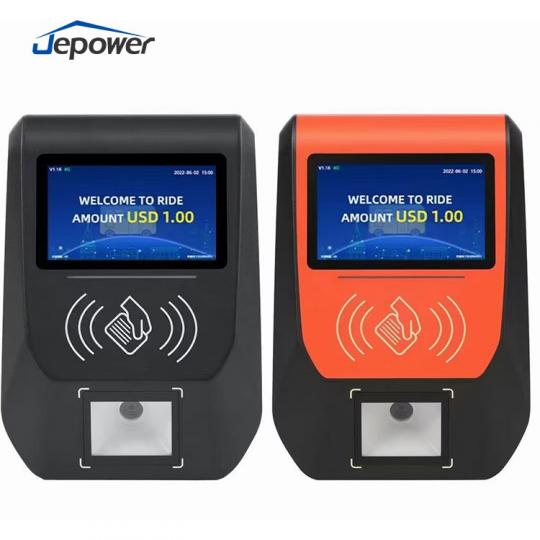

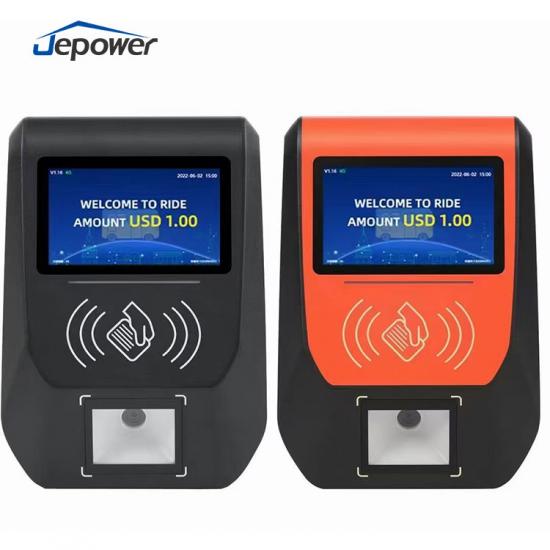

bus validator Android 13.0 WiFi GPS Bluetooth Contactless Public Bus Card Automatic Fare Bus Validator

Name：

Smart terminal

Operating System：

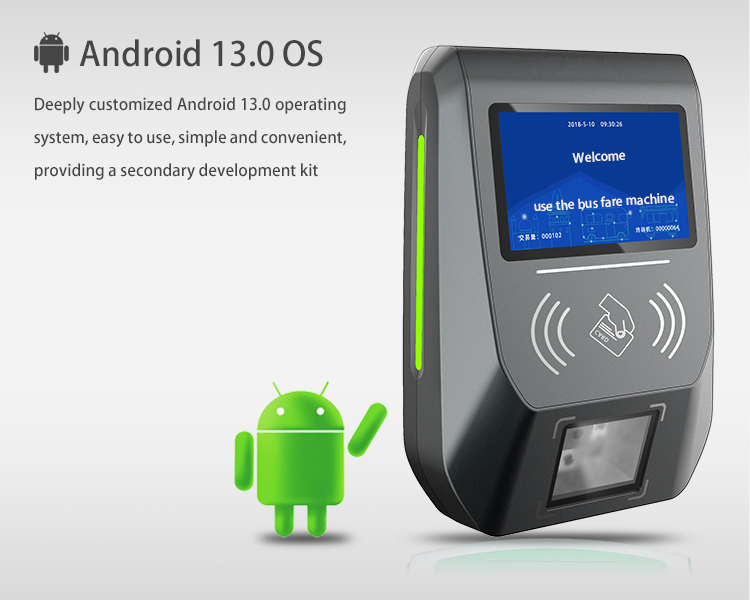

Android13

CPU：

Quad-core 64-bit Cortex-A53 processor, main frequency up to 2.0GHz

GPU

Adreno 702

RAM

2GB LPDDR4X RAM

Memory：

16GB eMMC Flash (default)、Max support 128G TF card

Memory Function

Data Capacity：

more than 2 million detailed data for console storage, extensible

Blacklist：

Two million，extensible, more with TF card

Working Environment

Working Temperature:

-25℃~65℃

Storage Temperature:

-40℃~85℃

Working Humidity:

0-90%（non-condensing）

Physical Parameter

Dimension:

240x170x74.7mm

Housing material:

Engineering plastics

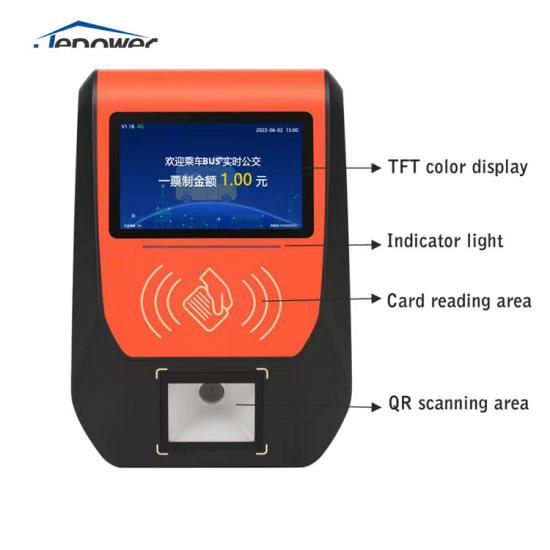

LCD Display

Display：

5 inch LCD display, 800*480

Indicator light：

Red and green

Camera

Scanning：

Wide angel/QR /customized

Distance：

0CM -15CM

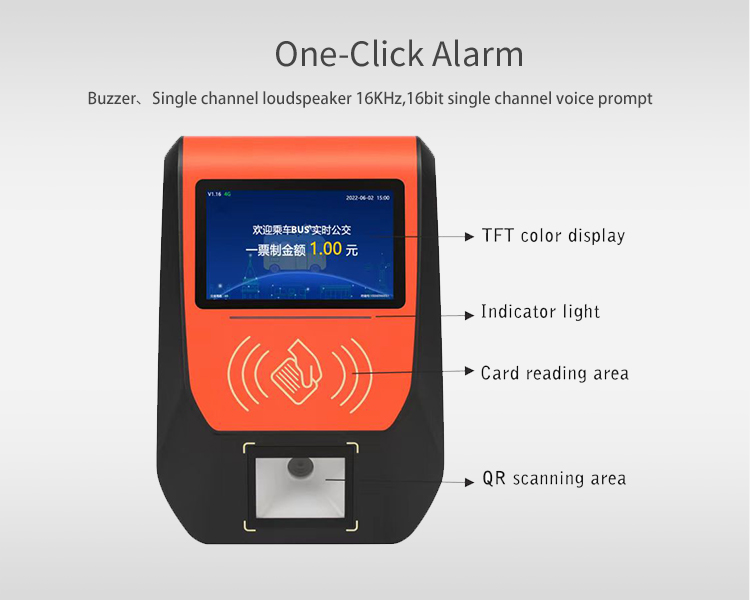

Voice Prompt

Sound Prompt：

Buzzer、Single channel loudspeaker

Voice Prompt：

16KHz,16bit single channel voice prompt

Power Supply Specification

Working Voltage：

DC 8V-48V with reverse connection, over voltage, over current automatic protection and automatic recovery, power off delay shutdown function.

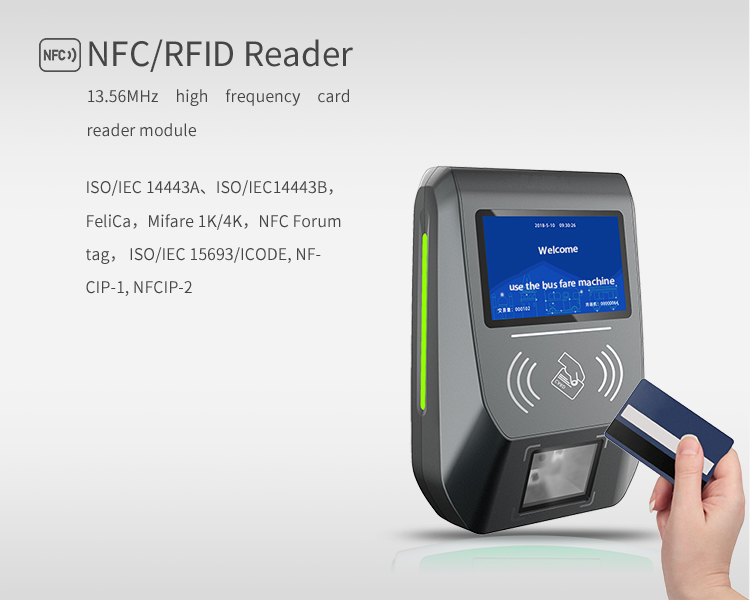

RFID Function

Support Type：

Can read and write ISO14443 TYPE A\B Electronic tag

Reading Distance：

0~50mm

Working Frequency：

13.56Mhz

Card Capacity：

99999999 pcs

Card Type：

Mifare classic card, CPU card

Interface

Communication Interface：

USB-HOST、USB-OTG、RS485 and TTL-232 choose one

Relay output:

2 Relay (Max 4) this is optional function

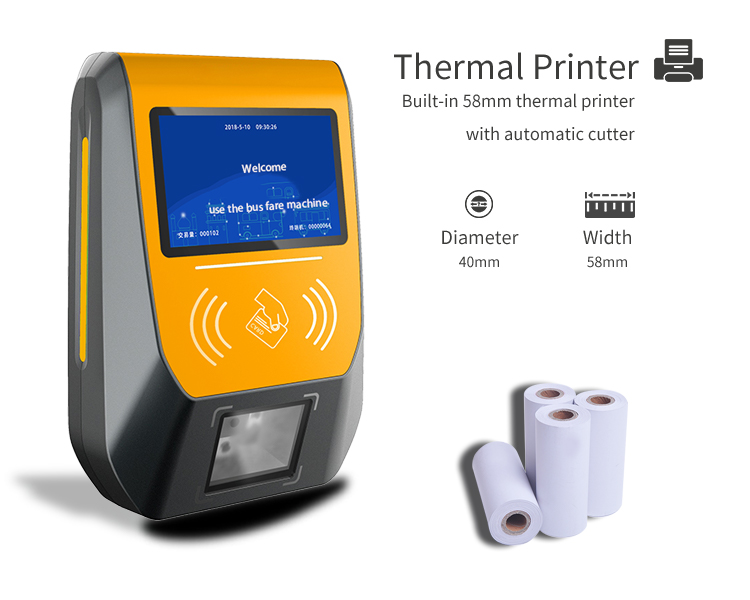

Printing Function

Printing module：

Support external POS58printer (need 5pinaviation plug turn DB9 cable)

Optional Bluetooth printer(need to add bluetooth module)

Width of receipt:：

58mm

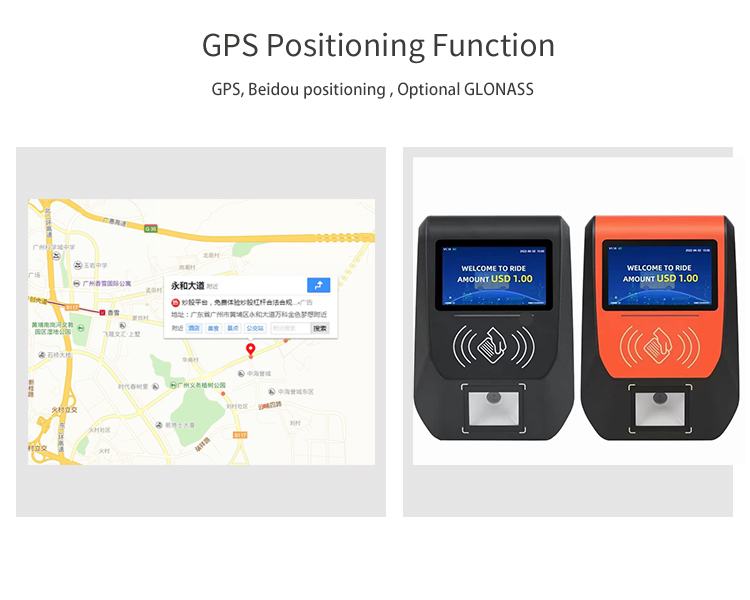

Positioning Function

Position way：

GPS, Beidou positioning , Optional GLONASS

Working Mode

Working Mode：

Stand-alone or connect to server

Power Consumption

Power Consumption:

≤10 W

Communication Function

Wireless Communication

2G/3G/4G optional, 4G default

WIFI(optional)

Wi-Fi 802.11 a/b/g/n/ac

Bluetooth

BT 5.0 BLE

Warning Function

Warning Function

Warning when card balance is insufficient or data memory is full
