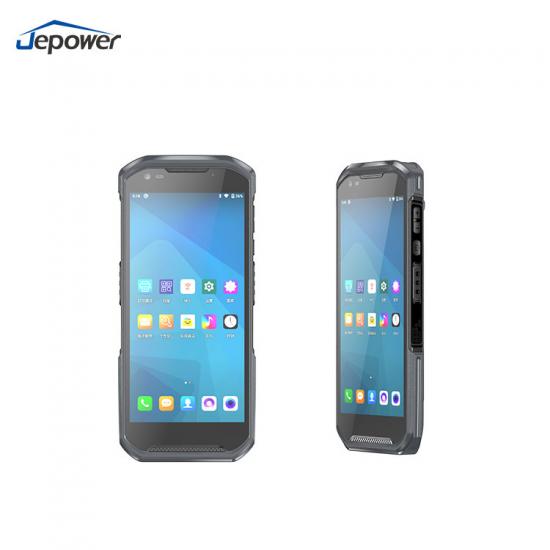

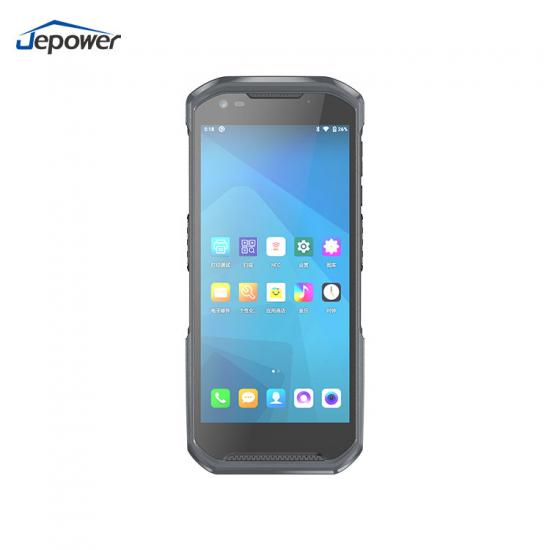

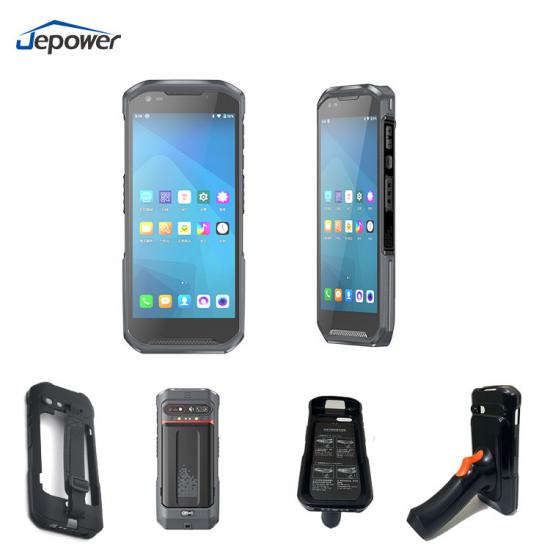

F505 Handheld pda Terminal 5.5 Inch HD Screen Octa Core 4G LTE PDA Barcode Scanner for Warehouse Inventory

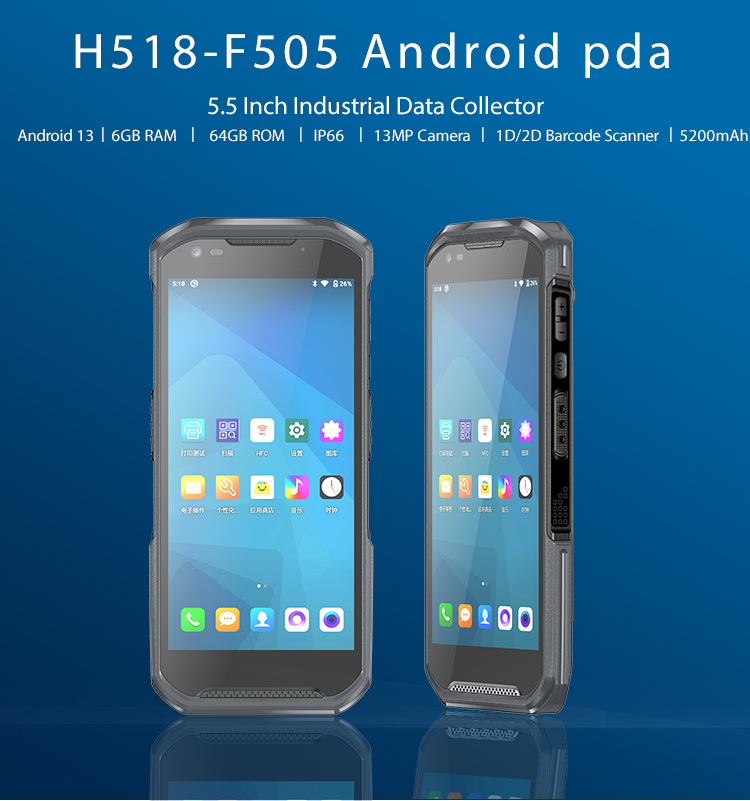

model：HT518-F505 Android13 touch screen 6GB+64GB 5.5inch

Brand:
Jepower
Item NO. :
F505
Shipping Port:
Guangzhou
Lead Time：
1-15

Features and Advantages

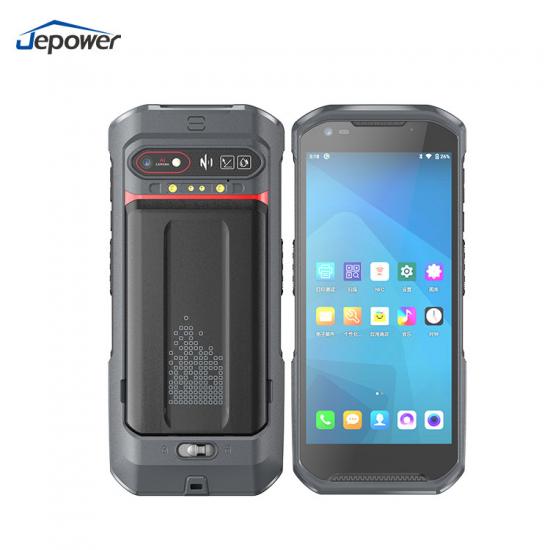

F505 Handheld Terminal – 5.5" HD Screen, High-Speed Octa-Core, 4G Full-Network IoT PDA

Overview The F505 is a professional IoT handheld terminal (PDA / mobile computer) designed for warehouse management, logistics, retail inventory, field service and other enterprise mobility applications. It combines a 5.5-inch high-definition display, a high-speed octa-core processor and full 4G network support, delivering stable performance and reliable data transmission for demanding daily operations. Built for industrial use, the F505 keeps your team productive, accurate and connected anywhere.

Key Features

5.5-inch HD display – clear and responsive touchscreen for efficient operation indoors and outdoors
High-speed octa-core processor – smooth multitasking, fast app switching and quick data processing
4G full-network support – stable and fast wireless data transmission
Industrial-grade design – durable body built for daily field and warehouse use

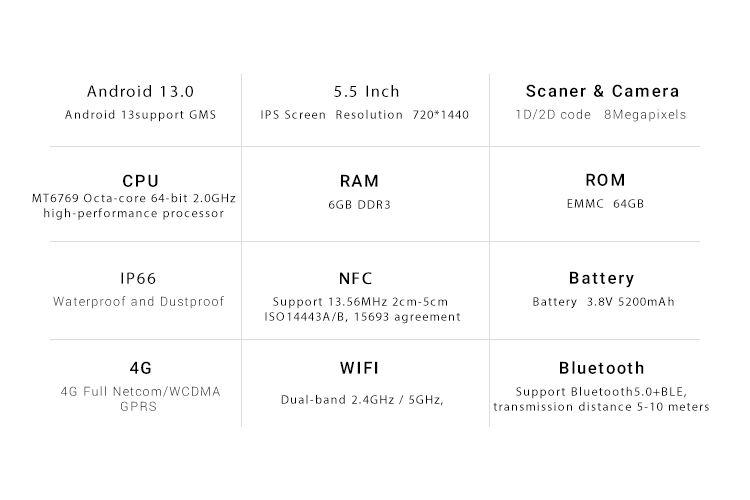

Item	Specification
Model	F505
Product Type	IoT Handheld Terminal / PDA / Mobile Computer
Display	5.5-inch IPS, 720×1440 HD
CPU	MediaTek MT6769 Octa-core 64-bit 2.0GHz (2×Cortex-A75 + 6×Cortex-A55)

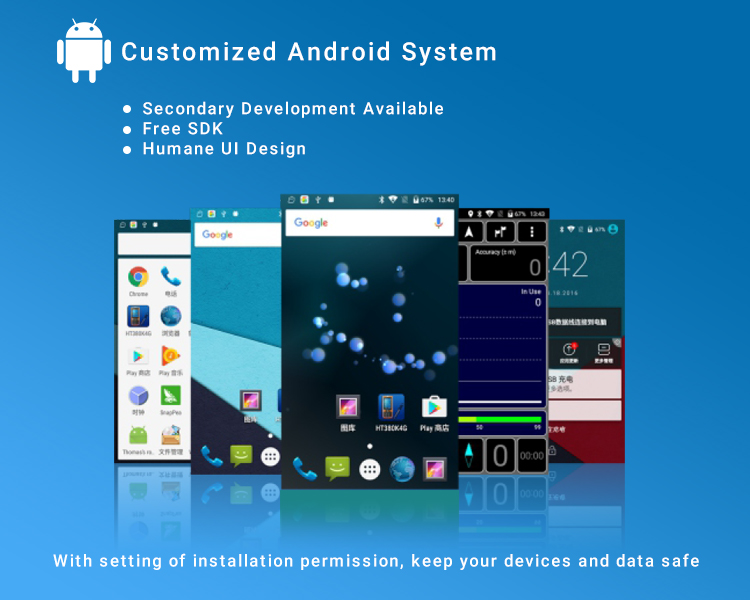

Operating System	Android 13.0 (GMS)
RAM	6GB DDR3
ROM	64GB eMMC
Rear Camera	13MP

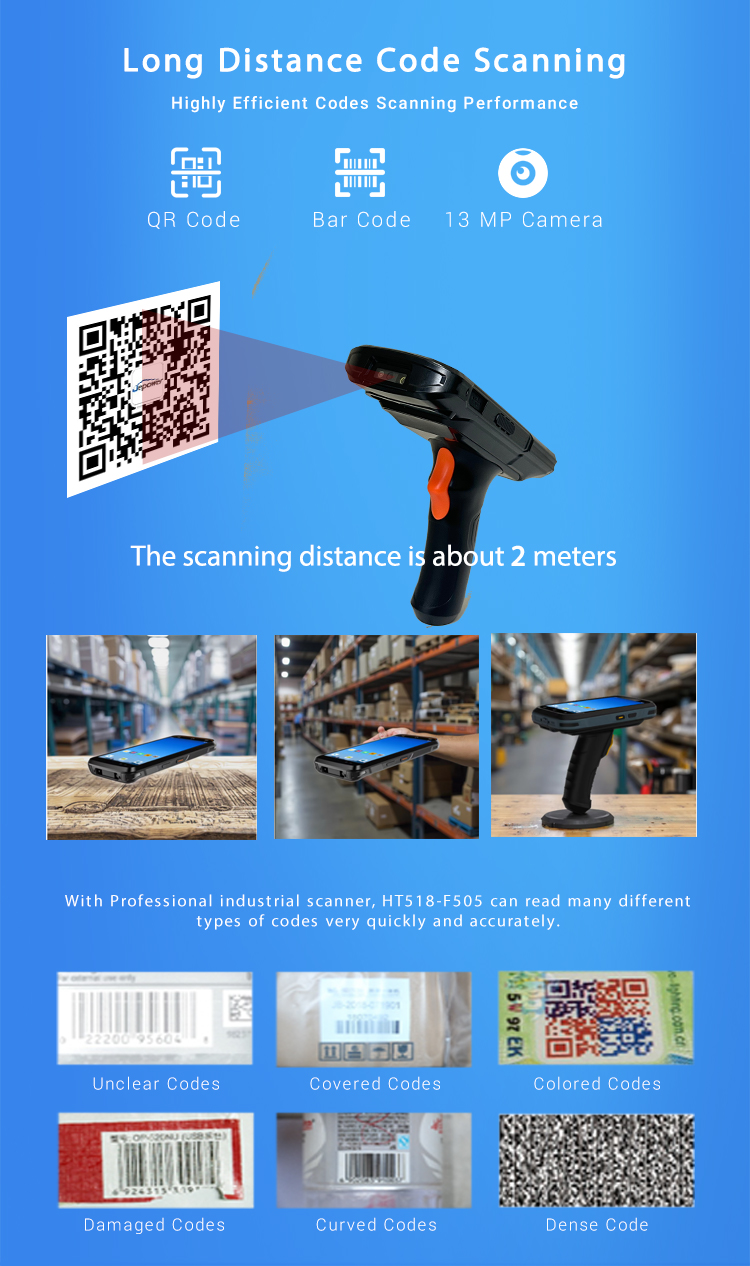

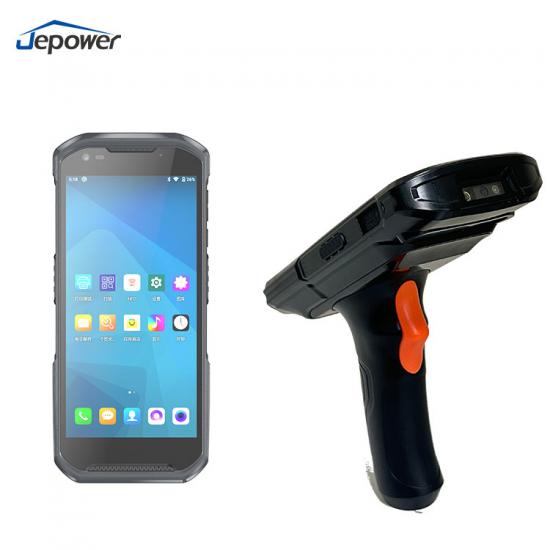

Barcode Engine	1D/2D, scanning distance up to 2m

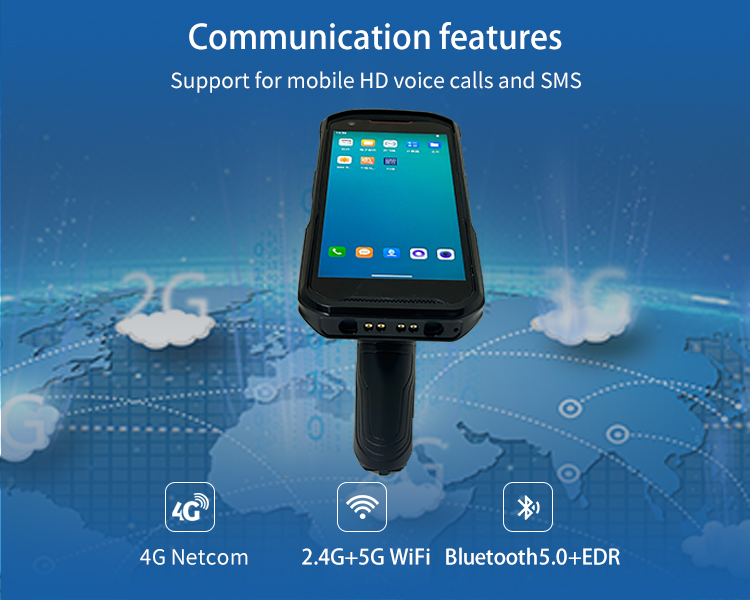

Network	4G Full Network (全网通)
Wi-Fi	Dual-band 2.4GHz / 5GHz
Bluetooth	BT 5.0 + BLE (5-10m)

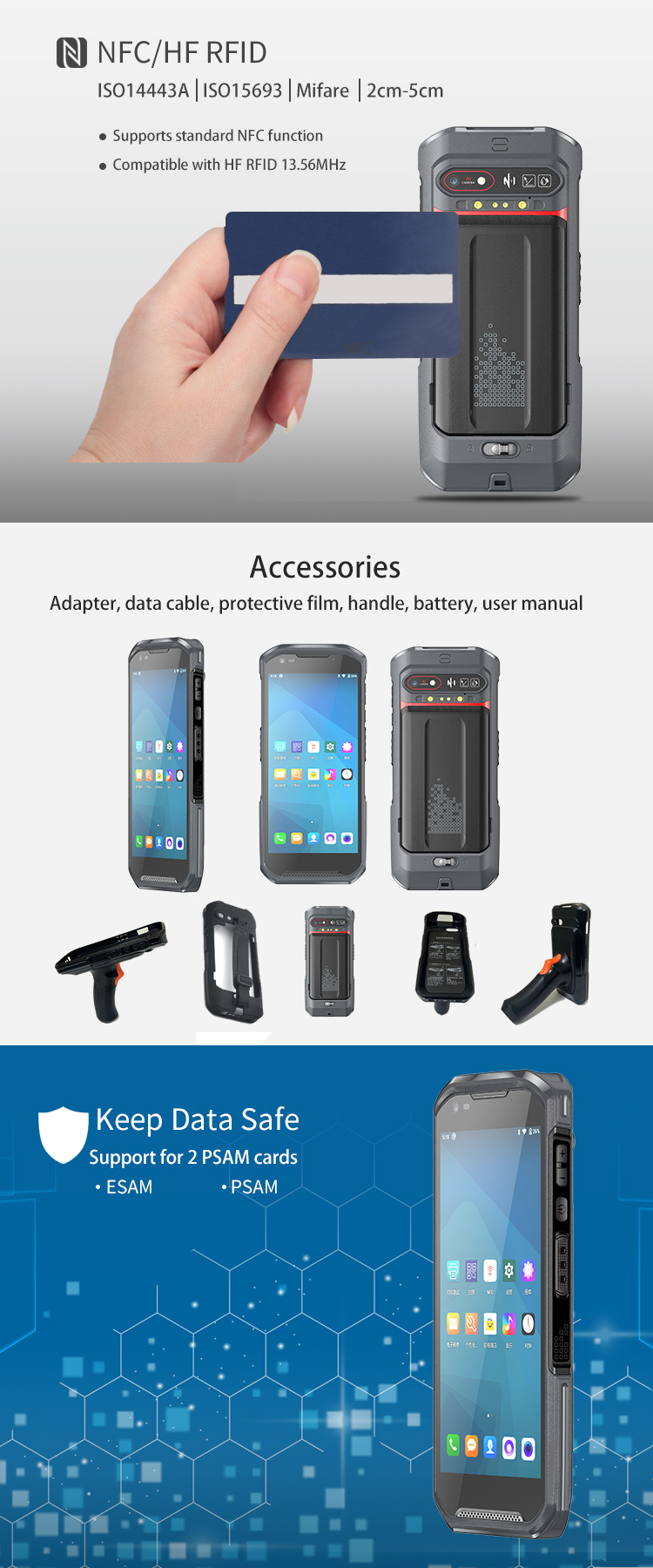

NFC	13.56MHz, 2-5cm, ISO14443A/B, ISO15693, Mifare

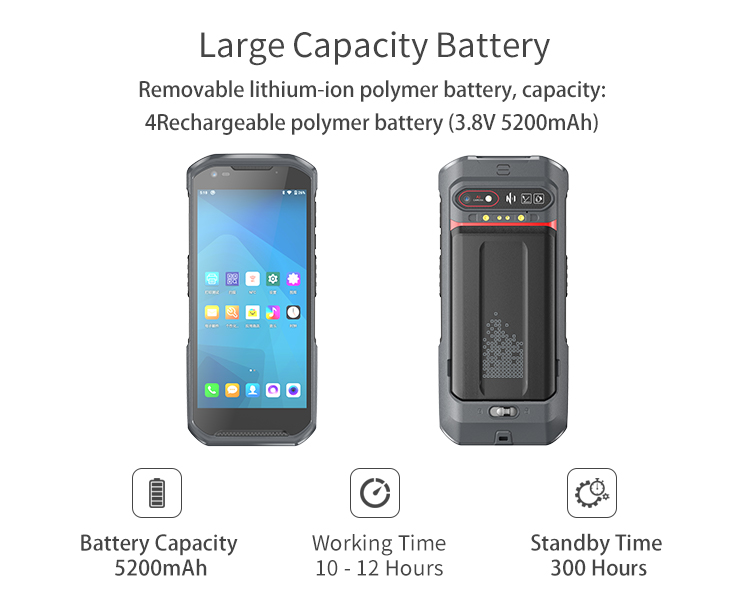

Battery	3.8V 5200mAh removable Li-Polymer
Working Time	10-12 hours
Standby Time	300 hours
Protection	IP66 waterproof and dustproof
Card Slots	2× PSAM (ESAM/PSAM)
Interface	USB Type-C
Accessories	Power adapter, data cable

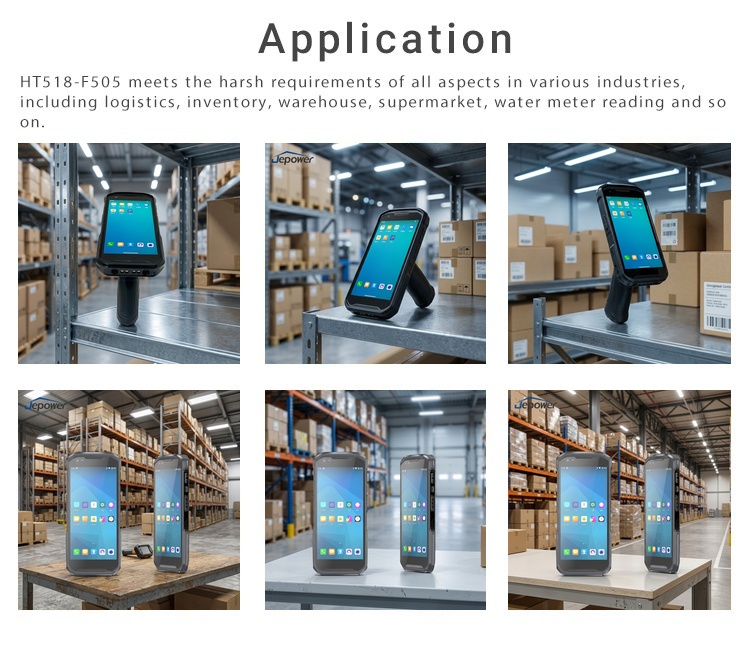

Applications

Warehouse & logistics: inventory check, goods receiving and shipping, parcel tracking
Retail: stocktaking, price checking, store management
Field service: equipment inspection, data collection, on-site reporting
IoT data collection: real-time data entry and transmission in various industries

FAQ

Q: What is the F505 handheld terminal used for? — A: It is designed for warehouse inventory, logistics tracking, retail stocktaking, field service data collection and other enterprise mobility applications.
Q: Does the F505 support 4G networks? — A: Yes, the F505 supports 4G full network connectivity for stable and fast data transmission.
Q: What are the display and processor specifications? — A: The F505 features a 5.5-inch HD display and a high-speed octa-core processor for smooth multitasking.
Q: Do you support OEM/ODM customization? — A: Yes, we support logo, software and accessory customization. Contact us to discuss your requirements.
Q: What is the minimum order quantity and lead time? — A: [按实际填写,如:MOQ 1 unit; lead time 7-15 days]
Q: What warranty and after-sales service do you provide? — A: [按实际填写,如:12-month warranty and lifetime technical support]Q: Does the F505 support NFC? — A: Yes, it supports NFC 13.56MHz (ISO14443A/B, ISO15693, Mifare), ideal for access control, payment and identity applications.
- Q: How long does the battery last? — A: The 5200mAh battery provides 10-12 hours of working time and up to 300 hours of standby time.
