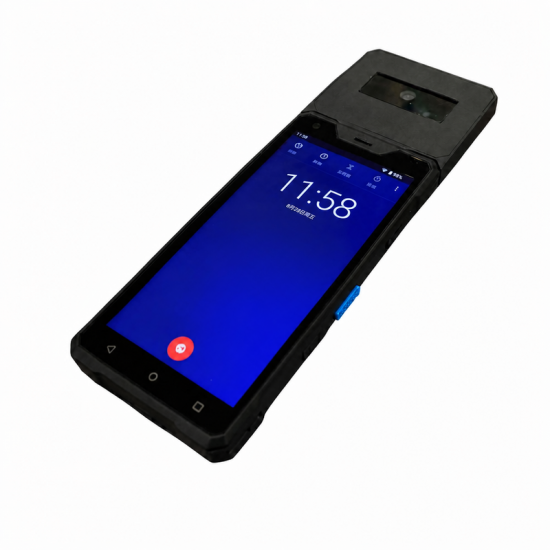

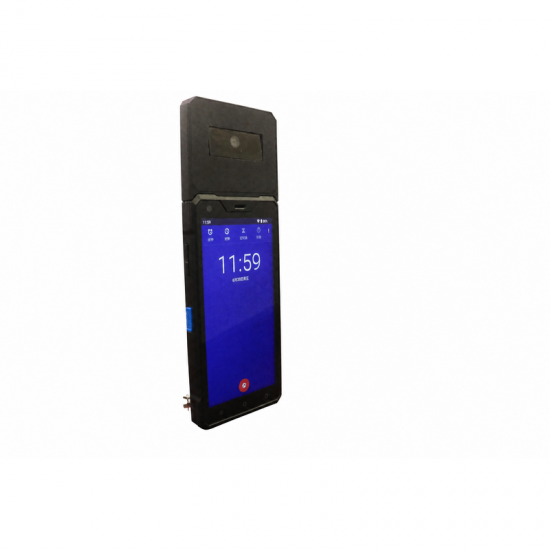

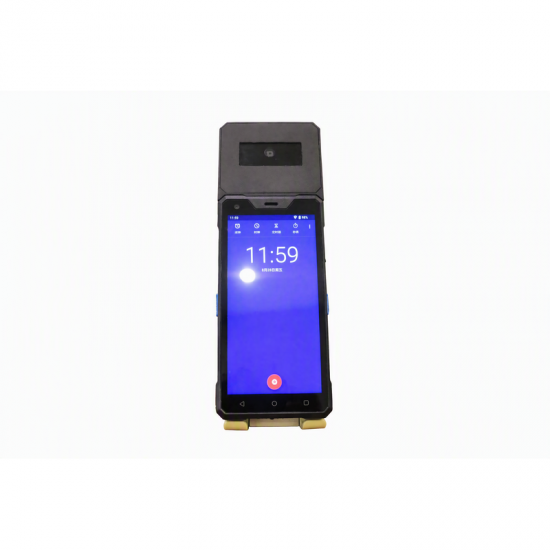

HT518-U1 5.5 Inch Android 12 4G Handheld PDA Terminal with Palm Recognition Barcode Scanner for Warehouse Inventory

model：HT518-U1 Android12 touch screen 6GB+128GB 5.5inch

Brand:
Jepower
Item NO. :
HT518-U1 palm
Product Origin:
guangzhou

Features and Advantages

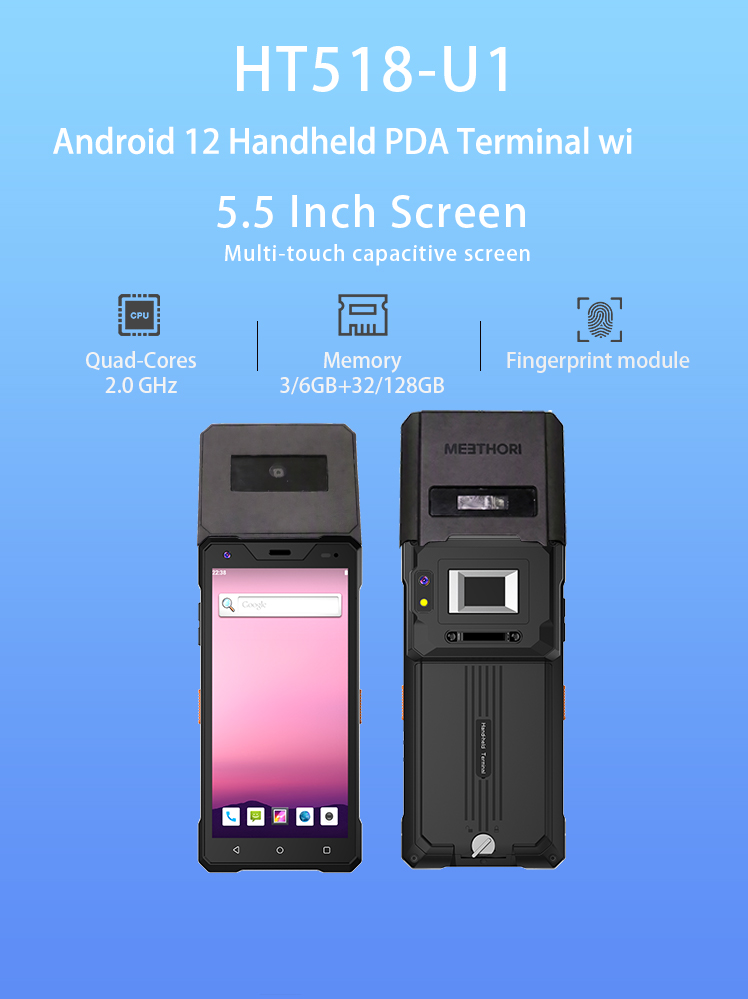

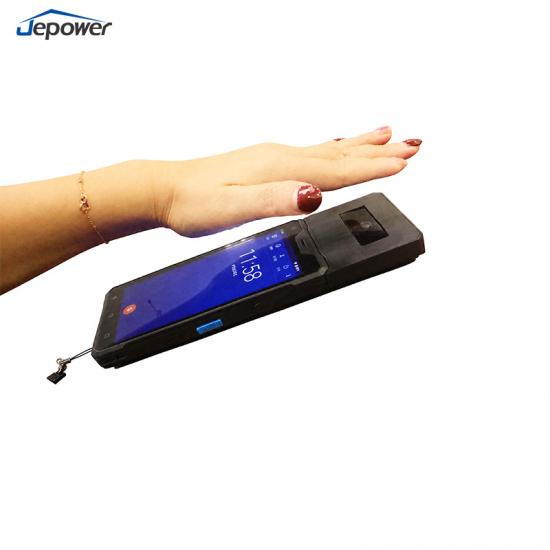

T518-U1 palm recognition handheld terminal biometric scan

HT518-U1 rugged PDA barcode scanner warehouse inventory application

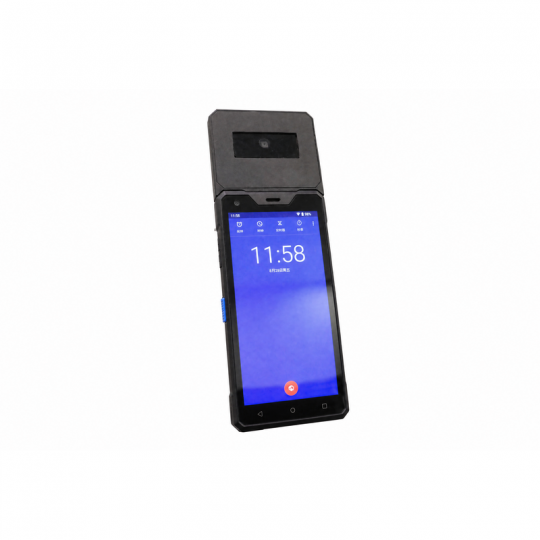

HT518-U1 is a 5.5-inch Android 12 multi-functional handheld PDA terminal with
optional palm recognition, designed for warehouse management, logistics,
retail inventory and field service. Powered by an octa-core MT6762 processor
with full 4G LTE, dual SIM dual standby and IP66 industrial protection, it
delivers fast barcode scanning and reliable data collection in demanding
environments. Optional modules including palm recognition, NFC, fingerprint,
temperature measurement and high-precision RTK positioning make it a flexible
all-in-one mobile computer for enterprise use.

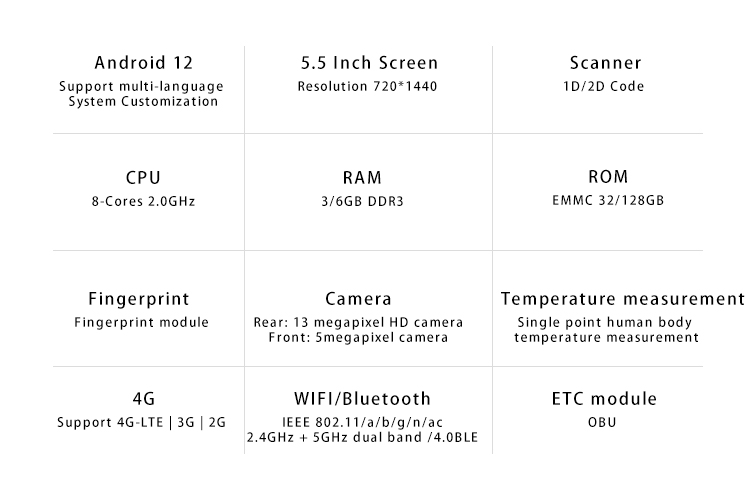

Specifications

Item	Specification
Model	HT518-U1
Product Type	Multi-functional Handheld Terminal / PDA / Mobile Computer
CPU	MediaTek MT6762, octa-core Cortex-A53, up to 2.0GHz

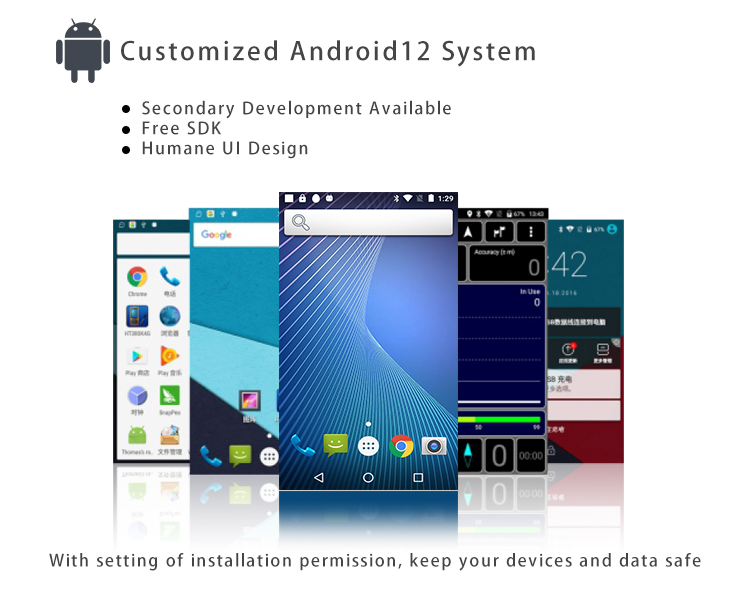

Operating System	Android 12.0
Memory	3GB RAM + 32GB ROM (standard); 6GB + 128GB (optional)
Expandable Storage	Up to 256GB MicroSD (TF) card

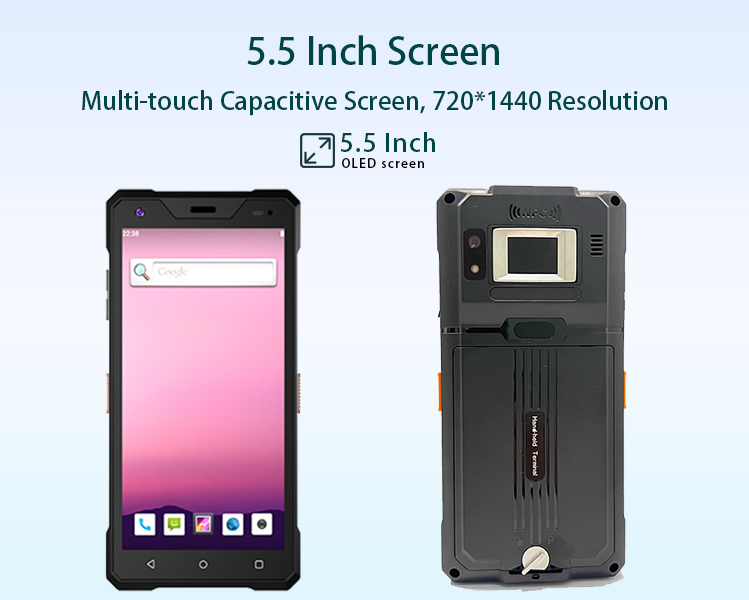

Display	5.5-inch, 720×1440 HD
Touchscreen	Industrial capacitive, multi-touch, glove / wet-hand operation
Rear Camera	13MP with autofocus and flash

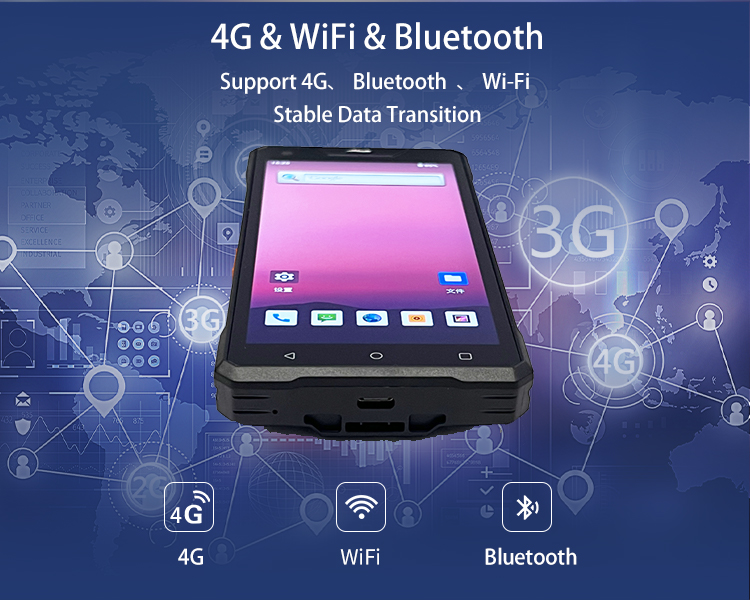

Mobile Communication	4G-LTE / 3G / 2G; GSM B2/B3/B5/B8; WCDMA B1/B5/B8; TDD-LTE B38/B39/B40/B41; FDD-LTE B1/B2/B3/B5/B7/B8/B20/B28a&b
Wi-Fi	IEEE 802.11 a/b/g/n, dual band 2.4GHz + 5GHz
Bluetooth	Bluetooth 4.0 BLE
GPS	GPS / AGPS / GLONASS / BeiDou

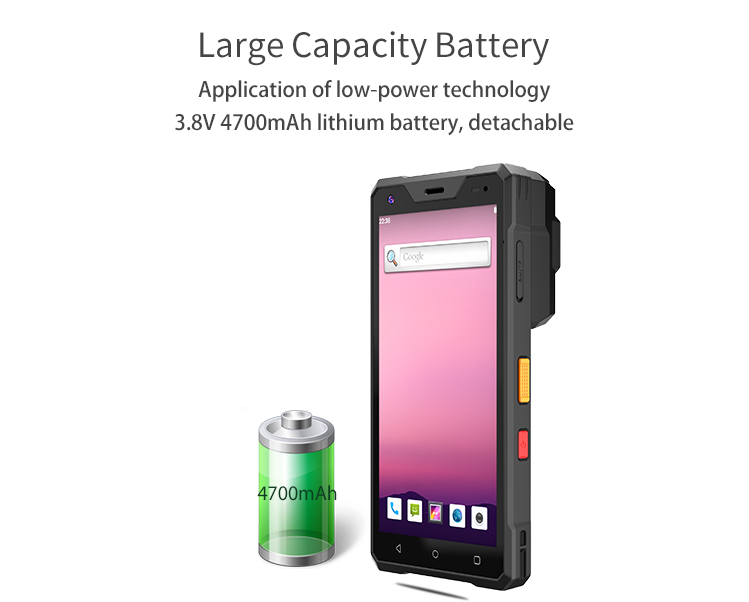

Battery	3.8V 4700mAh removable lithium battery
Notification	Vibration / tri-color LED breathing light / audio
Sensors	Distance, light, gravity, magnetic, gyroscope (built-in vibration motor)
Audio	Built-in earpiece, speaker and microphone
Keys	5 physical keys: 2 side scan keys, 1 side power key, 2 side volume keys; 3 touch keys: Back / Home / Recent
Card Slot	3-in-2 card tray, dual SIM dual standby (Nano SIM + Nano SIM, or Nano SIM + TF)
Interface	Waterproof USB Type-C, USB 2.0 with OTG
Dimensions	156mm × 76mm × 23mm
Weight	280g (including battery and scan module)
Packing Size	Single inner box: 19cm × 11cm × 9cm; gross weight approx. 500g
Working Temperature	-20°C ~ 60°C
Storage Temperature	-40°C ~ 70°C
Humidity	0 ~ 95%
Protection	IP66; withstands 1.5m drops onto concrete on all six sides
Standard Accessories	Power adapter ×1, USB Type-C cable ×1, battery ×1, hand strap ×1

Optional Modules

Module	Specification

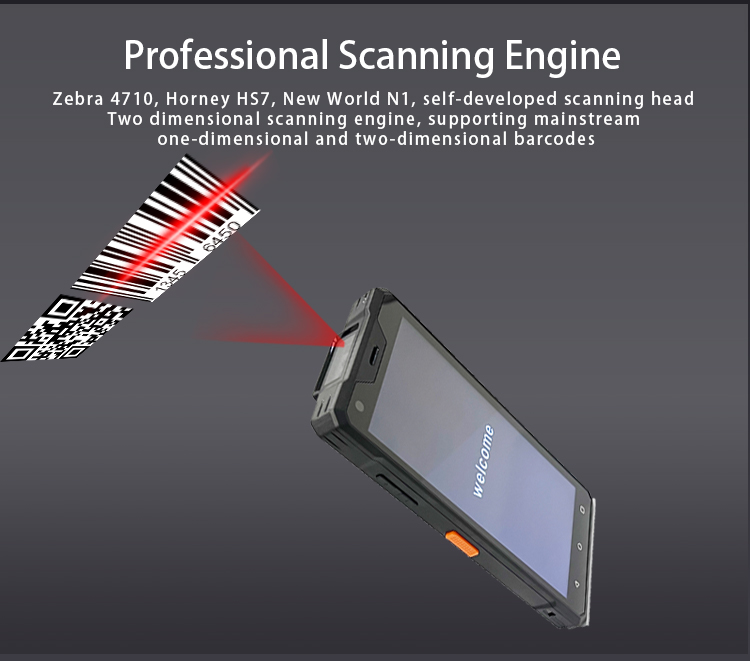

Barcode Scanning	Zebra 4710, Honeywell HS7, Newland N1 or self-developed 2D scan engine; supports mainstream 1D/2D barcodes
Front Camera	5MP, autofocus

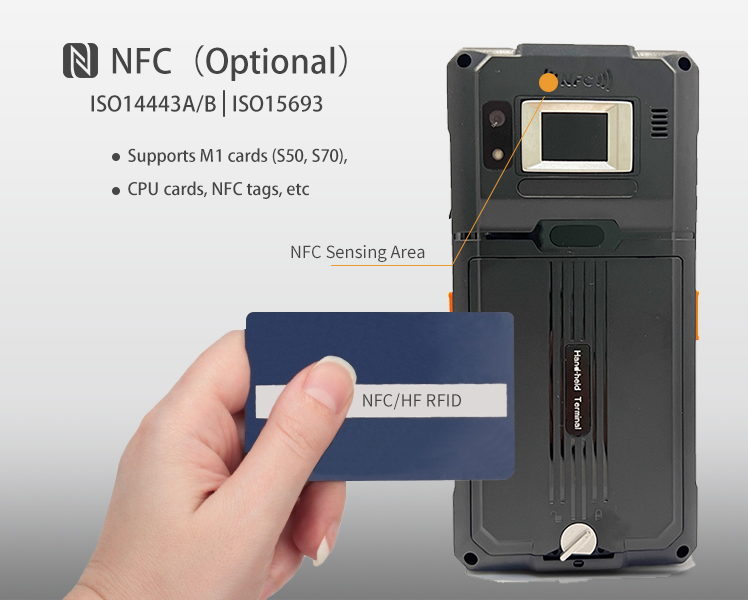

NFC	13.56MHz; ISO14443A/B, ISO15693; M1 cards (S50, S70), CPU cards, NFC tags

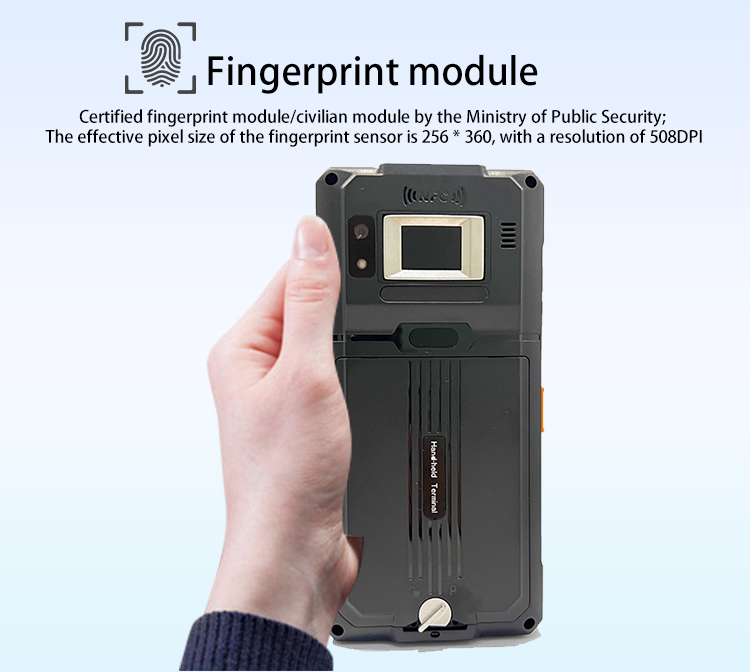

Fingerprint	Public-security certified / civilian module; 256×360 effective pixels, 508DPI

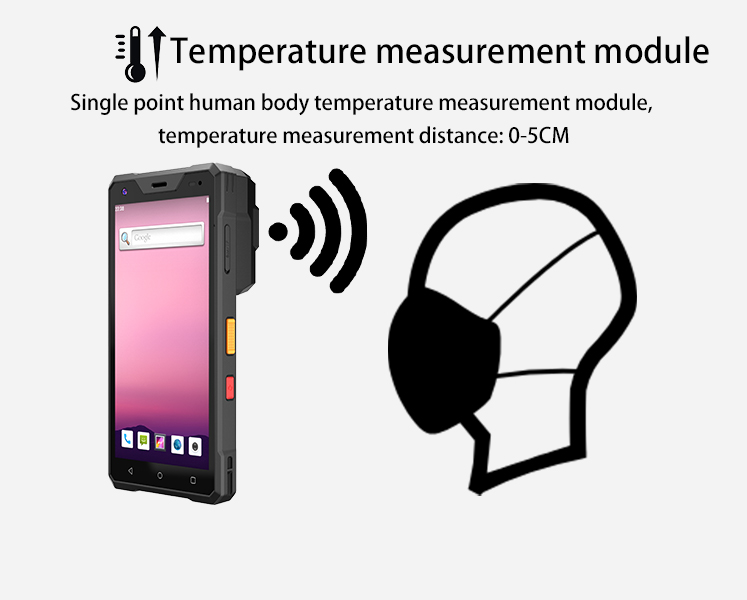

Human Temperature Measurement	Single-point module; distance 0-5cm; accuracy ±0.3°C; range 23-46°C
Infrared Thermal Imaging	Temperature matrix; 25FPS; industrial accuracy ±2°C or ±2%; range -20°C~~550°C (auto two-level -20~~150°C / 100~550°C); distance 0.5-2.5m
High-precision RTK Positioning	BDS+GPS+GLONASS; dual-frequency multi-constellation RTK (L1+L2), HAC26A four-wall spiral antenna; tracking sensitivity -163dBm, acquisition -147dBm; for smart city, precision agriculture, surveying & mapping
ETC Module	High-speed ETC non-contact recognition, compatible with national ETC settlement system, OBU recognition and active fee deduction

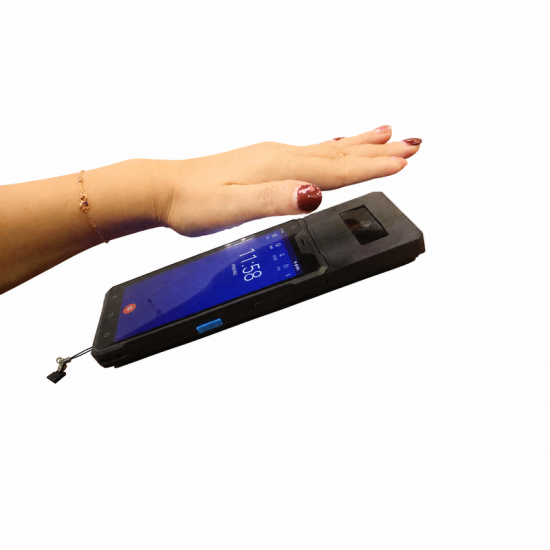

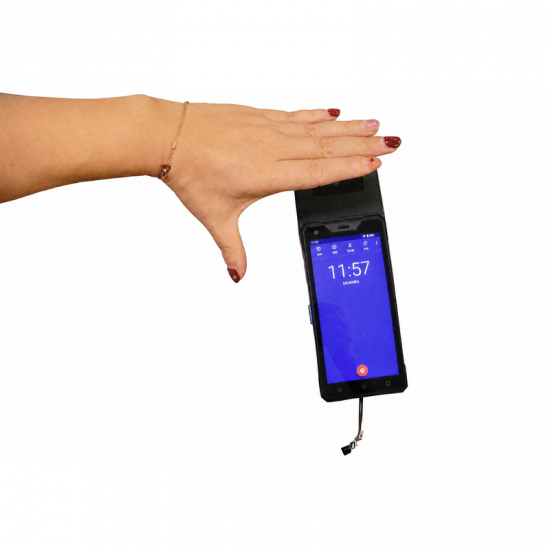

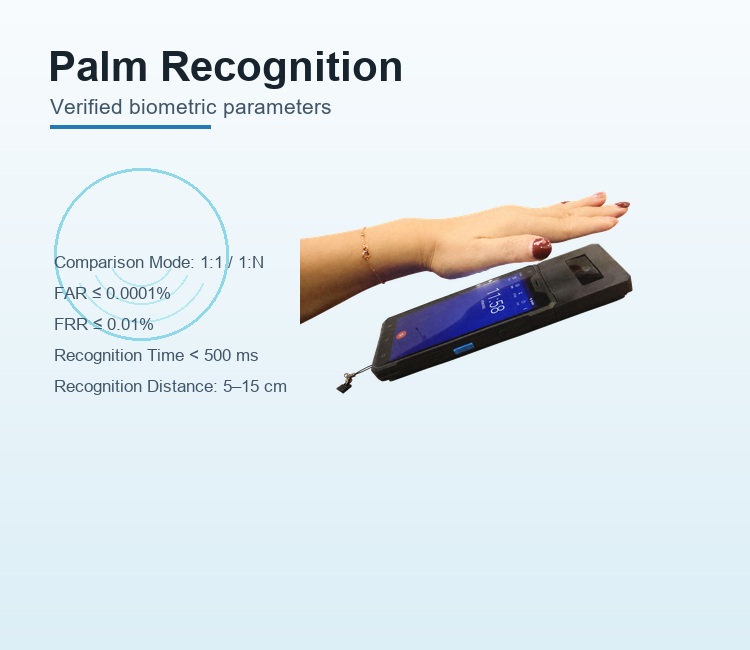

Palm Recognition	Biometric palm recognition; comparison modes 1:1 and 1:N; library capacity up to 160,000 palms; FAR ≤0.0001%, FRR ≤0.01%; recognition time <500ms; recognition distance 5-15cm; applicable angle: front & rear tilt +20°, horizontal rotation +20°

Applications

- Warehouse & logistics: inventory check, receiving and shipping, parcel tracking
- Retail: stocktaking, price checking, store operations
- Field service: equipment inspection, data collection, on-site reporting
- Access control & identity: palm recognition and NFC for secure door access,
  attendance and identity verification
- Payment & membership: NFC-enabled payment, membership and card services
- Temperature screening & industrial inspection: human temperature measurement
  and infrared thermal imaging modules
- Precision agriculture, surveying & ETC tolling: RTK positioning and ETC
  module-based applications

FAQ

Q: What is the HT518-U1 handheld terminal used for? A: It is designed for warehouse inventory, logistics tracking, retail stocktaking, field service data collection, and access/identity applications such as palm recognition-based attendance. Q: How does the palm recognition module work? A: The optional palm recognition module supports 1:1 and 1:N comparison with a library capacity of up to 160,000 palms. Recognition takes less than 500ms at a distance of 5-15cm, with FAR ≤0.0001% and FRR ≤0.01%. Q: What operating system and processor does it use? A: It runs Android 12.0 on a MediaTek MT6762 octa-core processor with a maximum frequency of 2.0GHz, ensuring smooth multitasking. Q: Does it support 4G and dual SIM? A: Yes. It supports 4G-LTE/3G/2G with a 3-in-2 card tray for dual SIM dual standby, as well as dual-band Wi-Fi and Bluetooth 4.0 BLE. Q: Are the palm recognition, NFC and other modules standard? A: Barcode scanning is available as standard/optional scan engines; NFC, fingerprint, temperature measurement, infrared thermal imaging, RTK positioning, ETC and palm recognition modules are configurable options.

Contact us to confirm your configuration.
