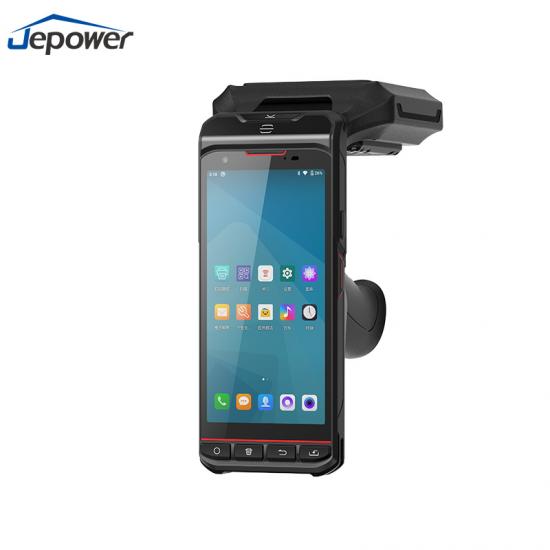

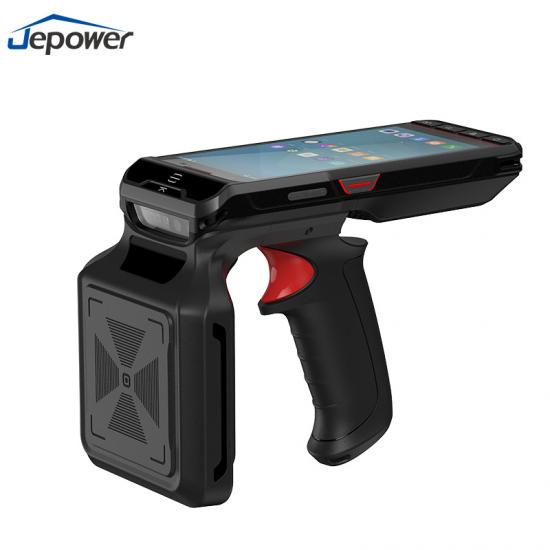

Industrial UHF RFID Mobile Computer Rugged Android 13 Handheld Terminal with 8000mAh Battery 4G WiFi BT Handheld RFID UHF Reader 20m

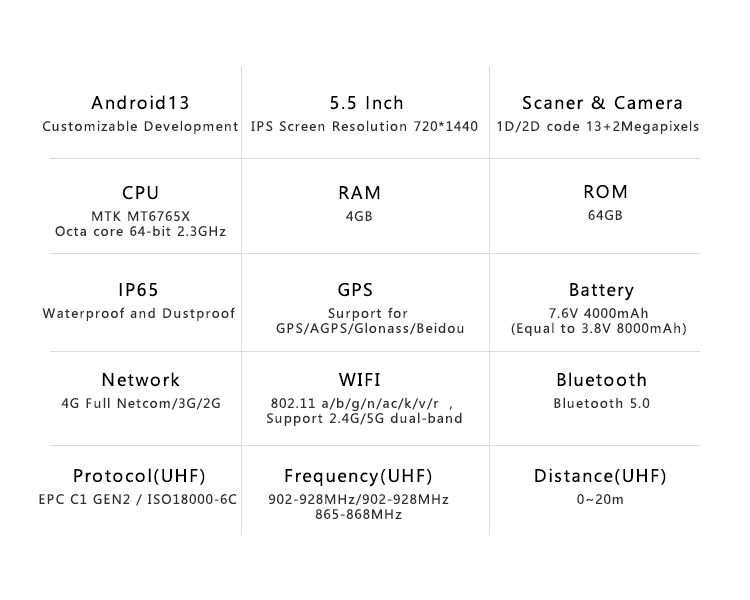

Product Specifications

Performance

Octa Core

CPU

MT6765X Octa core 64-bit 2.3GHz high-performance processor

RAM+ROM

GB+64GB

Expand memory

Micro SD(TF) Supports up to 256GB

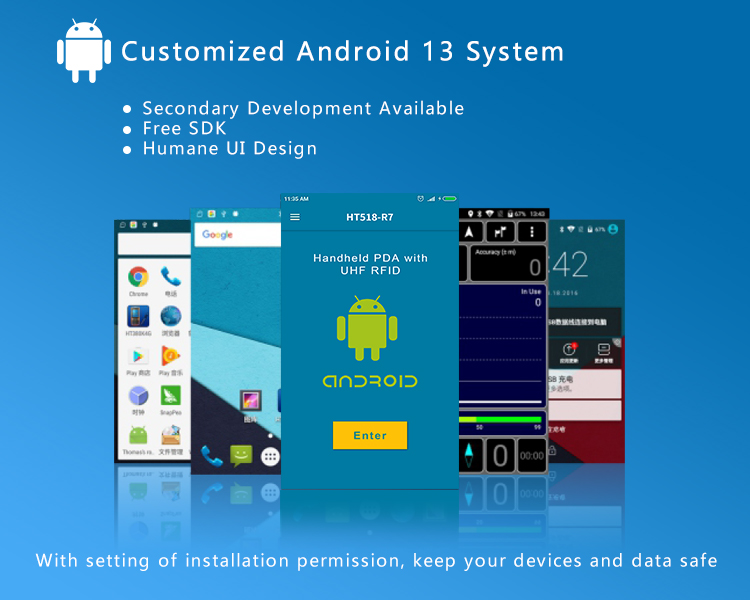

System

Android 13.0

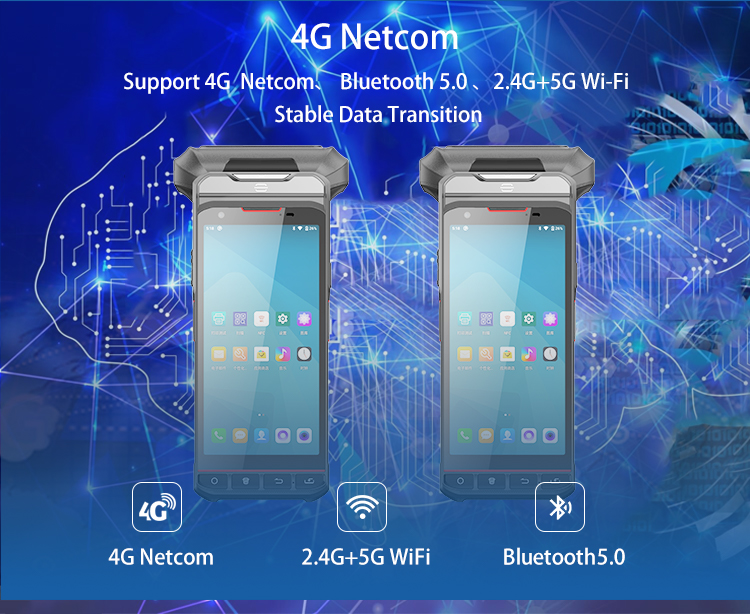

Data Communication

WLAN

Dual-band 2.4GHz / 5GHz,

Support IEEE 802.11ac/a/b/g/n/d/e/h/i/j/k/r/v protocol

WWAN

2G：GSM（850/900/1800/1900MHz）

3G：WCDMA（850/900/1900/2100MHz）

4G：FDD:B1/B3/B4/B7/B8/B12/B20

TDD:B38/B39/B40/B41

Bluetooth

Support Bluetooth 5.0+BLE

Transmission distance 5-10 meters

GNSS

Support Gps, Galileo, Glonass, Beidou

Physical Specifications

Dimensions

179mm×74.5mm×150mm（Including the handle）

Weight

＜750g

(Depends on device function configuration）

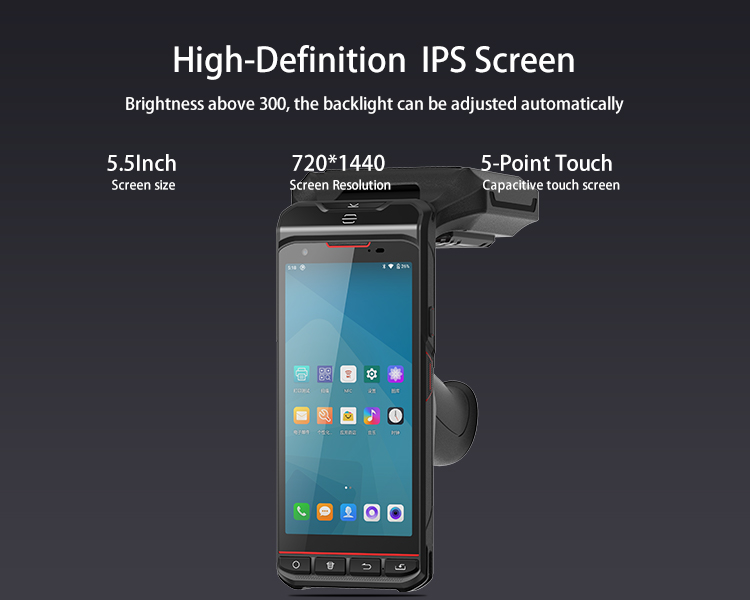

Display

5.5 "color display with resolution 720×1440

Screen brightness

＞500cd/m2

TP

support multi-touch

Battery capacity

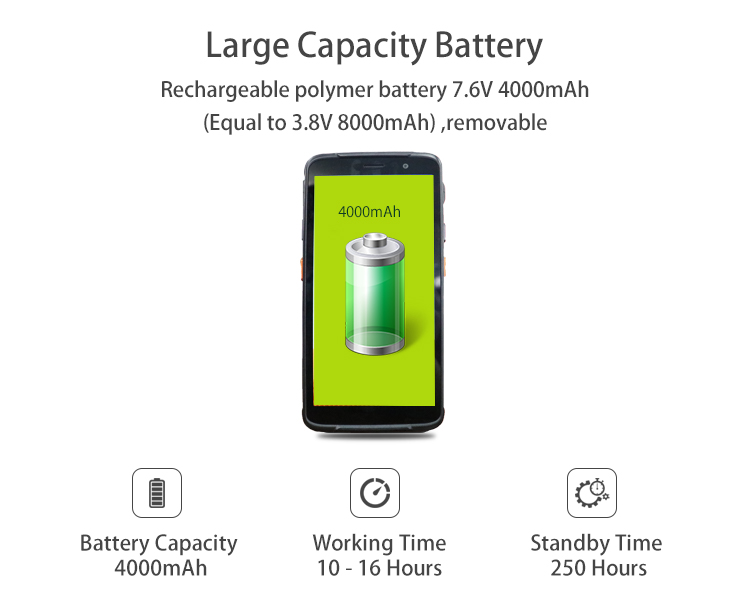

Rechargeable polymer battery 7.6V 4000mAh (Equal to 3.8V 8000mAh) ,removable

Standby time >350 hours

Charging time ＜3H, using standard power

adapter and data cable

Expansion Card slot

NANO SIM card x1、TF card x1（Optional PSAMx2）、POGO Pinx1

Communication interface

Type-C 2.0 USB x 1, supporting OTG function

Speaker volume

＞92db (test distance 10cm)

Audio

Speaker (mono), Microphone,Receiver

 Main keys

Home key, Delete key, Back key,Confirm key

Side keys

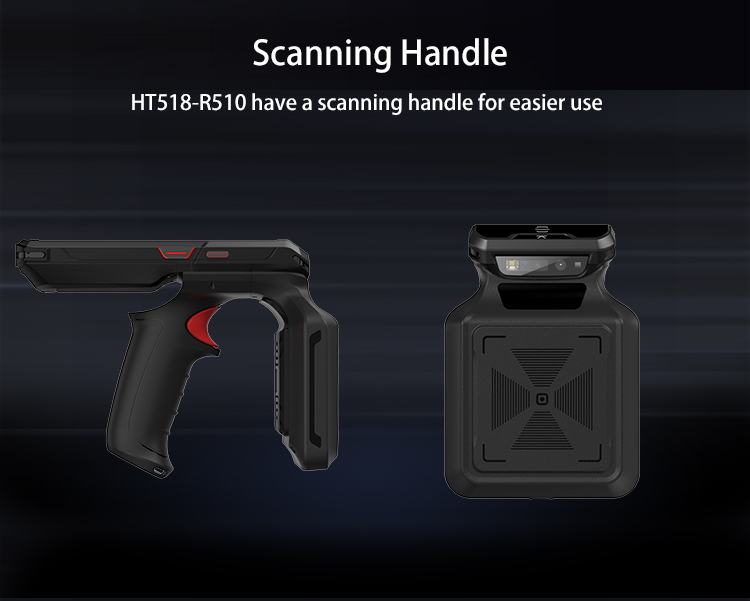

Silicone keys: Power key, Volume +/- key, Handle scan key,Scan key ×2

Sensors

Gravity sensor, light sensor, distance sensor, vibration motor

Data Collection

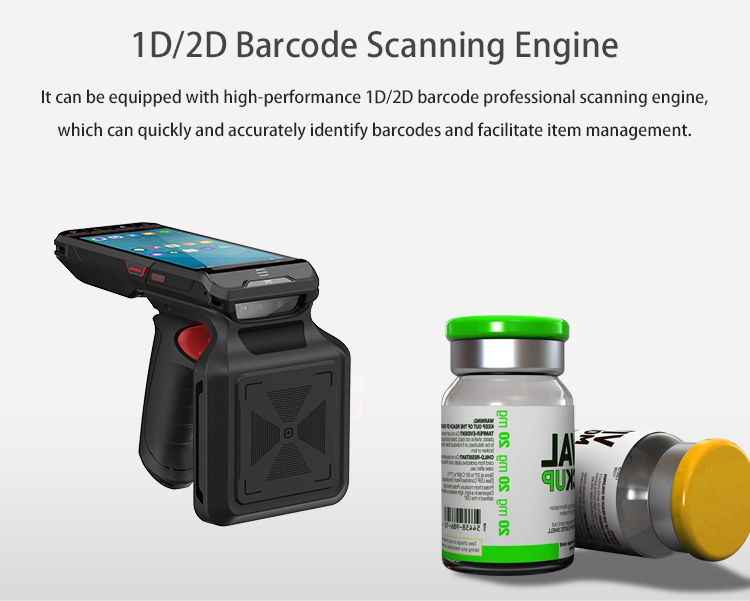

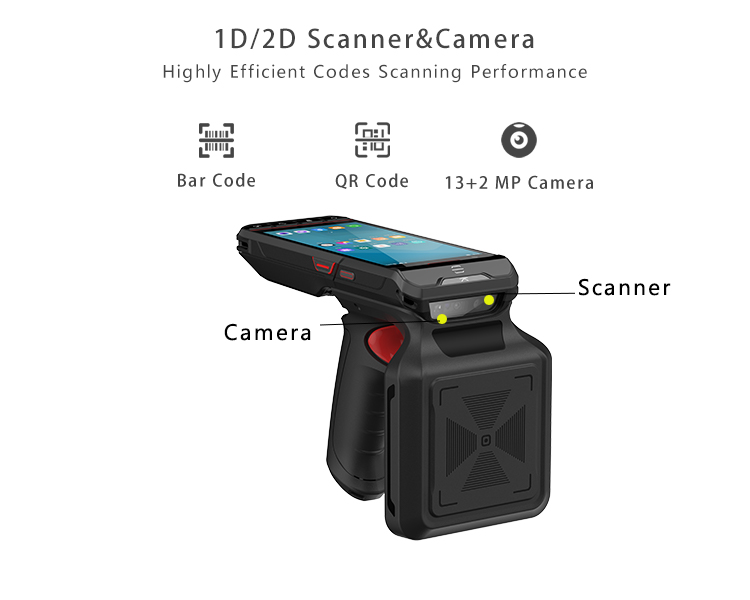

Barcode Scanning (Optional)

2D Scanning engine

N6602-W2

1D Symbologies

UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS,etc.

Postal Codes:USPS Planet, USPS Postnet, China Post, Korea Post, Australian Postal, Japan Postal, Dutch Postal (KIX), Royal Mail, Canadian Customs,etc.

2D Symbologies

PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, HanXi,etc.

Camera（Standard）

Rear camera

13MP pixel HD camera

Support auto focus, Flash, Anti-shake, Macro shooting

Front camera

2MP pixel color camera

NFC (Optional)

Frequency

13.56MHz

Protocol

Support ISO14443A/B, 15693 agreement

Distance

2cm-5cm

UHF (Optional)

Engine

Nation Rfid N611/Impinj E710（Either-or）

Frequency(CHN)

920-925MHz

Frequency(USA)

902-928MHz

Frequency(EHR)

865-868MHz（ETSI EN 302 208）

Frequency(Other)

Other multinational frequency standards (can be customized)

Protocol

EPC C1 GEN2/ISO18000-6C

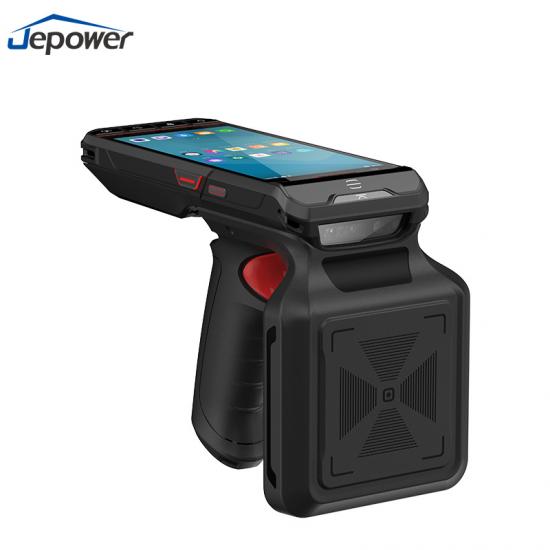

Antenna

Circularly polarized antenna (4.65dBi)

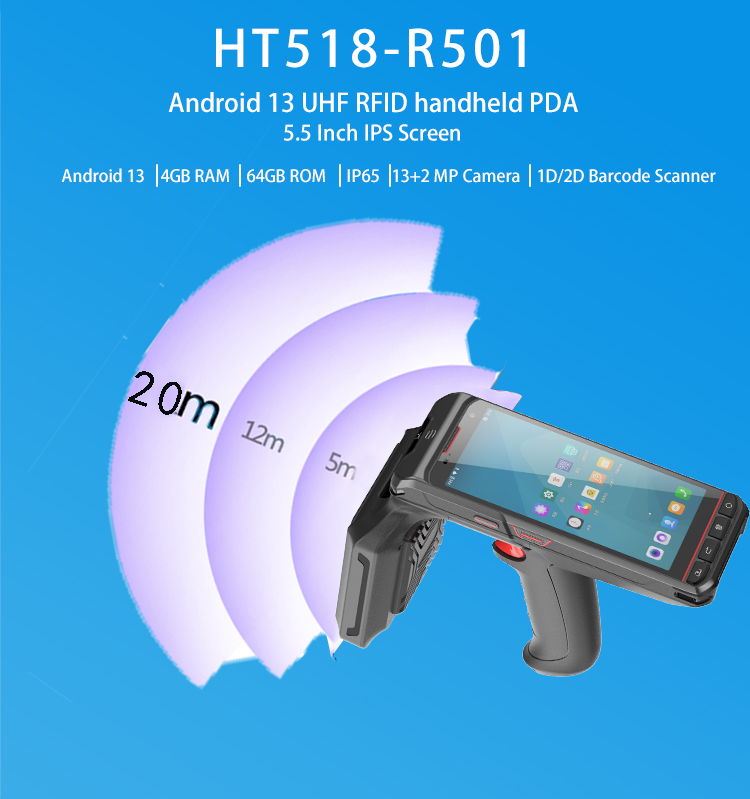

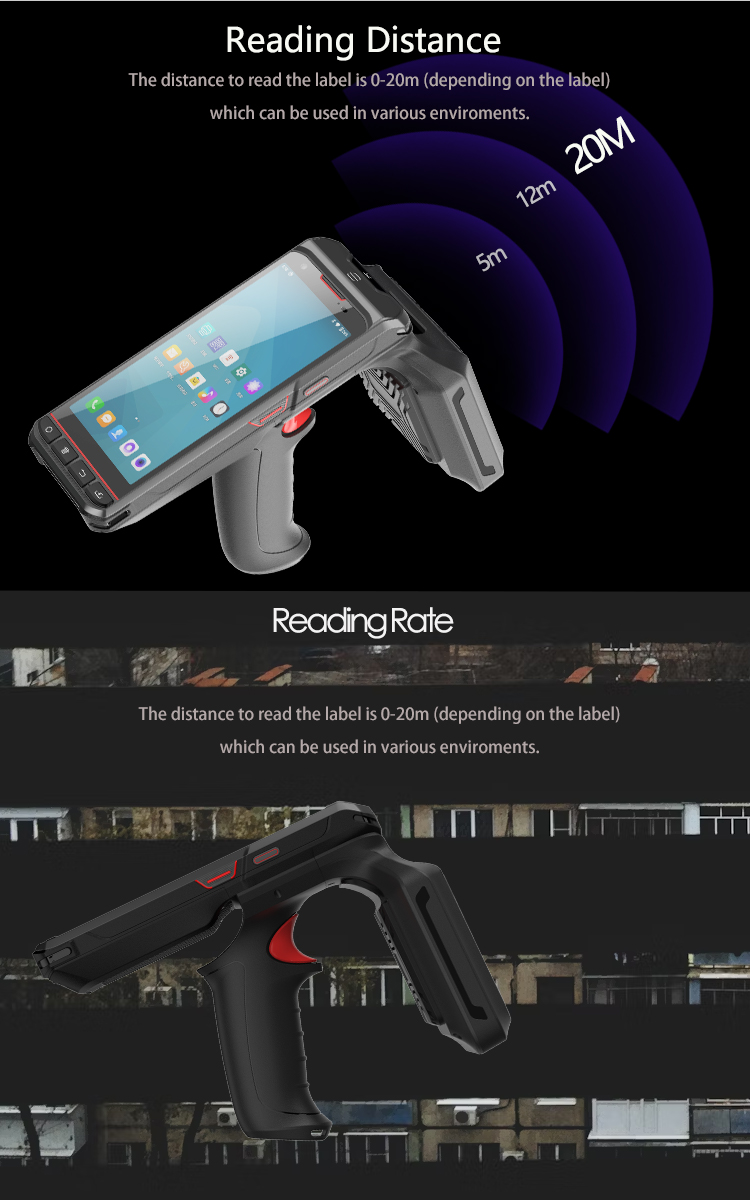

Distance

0-20m

Reading speed

>500 tags per second (circular polarization)

Language/Input Method

Input

English, Pinyin, Five strokes, Handwriting input, Support soft keypad

Language

Language packs in Simplified Chinese, Traditional Chinese, English, Korean, Japanese,Malaysian,etc.

User Environment

Operating temperature

-20℃ - 55℃

Storage temperature

-40℃ - 70℃

Environment humidity

5%RH--95%RH(no condensation)

Drop specification

6 sides supports 1.2 meters drops on the marble within the operating temperature

Rolling test

0.5m rolling for 6 sides, can still work steadily

Sealing

IP65

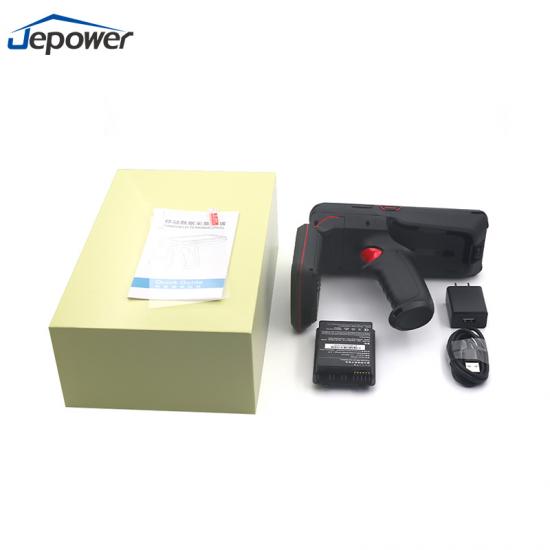

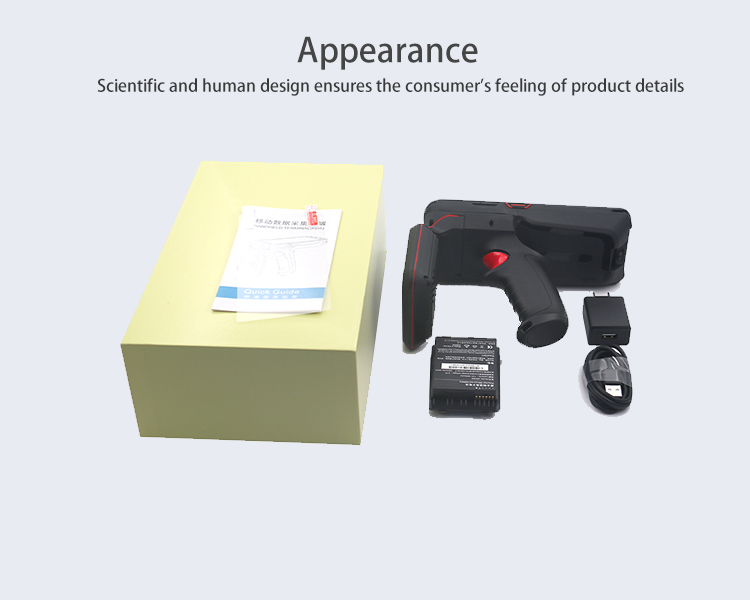

Accessories

Standard

Adapter, Data cable, Protective film,

Instruction manual
