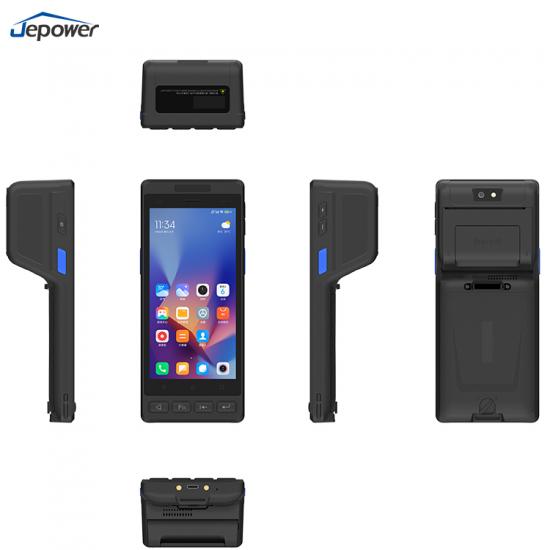

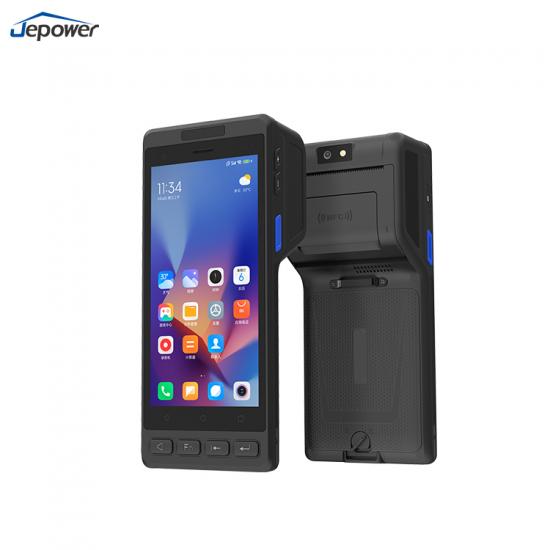

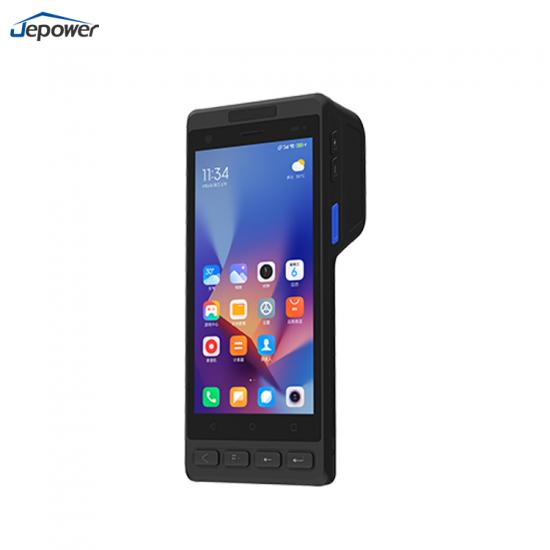

Android 14 Rugged Handheld PDA Parking Ticketing Mobile Pda Terminal Built-In Thermal Printer 1d 2d Barcode Scanner Pda

model：X8 Android14 Handheld PDA Parking Ticketing 4GB RAM+64GB ROM
5.5inch

Brand:
Jepower
Item NO. :
X8
Product Origin:
Guangzhou
Color:
Black
Shipping Port:
Guangzhou
Lead Time：
7

Features and Advantages

HT518-X8 is equipped with a high-performance processor and a customized Android system, as well as a high-performance 2D professional scanning engine and printing.

Android 14 Rugged Handheld PDA Parking Ticketing Mobile Pda Terminal Built-In Thermal Printer 1d 2d Barcode Scanner Pda

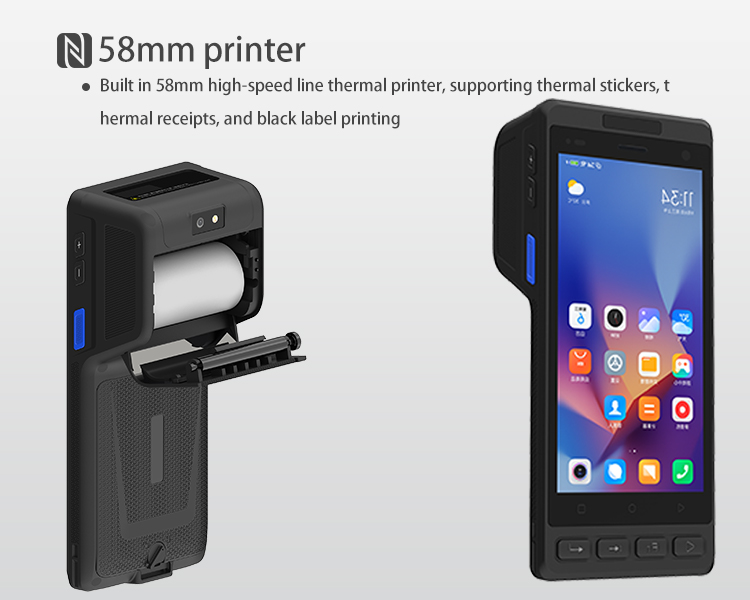

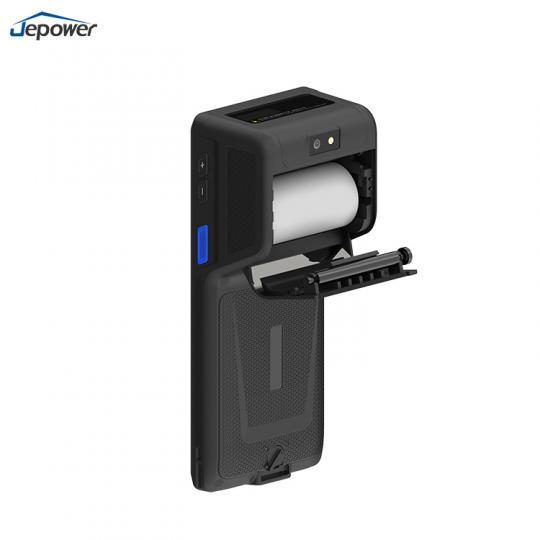

1. High performance printer

Built in 58mm high-speed line thermal printer, supporting thermal adhesive,

thermal receipt, and black label printing.

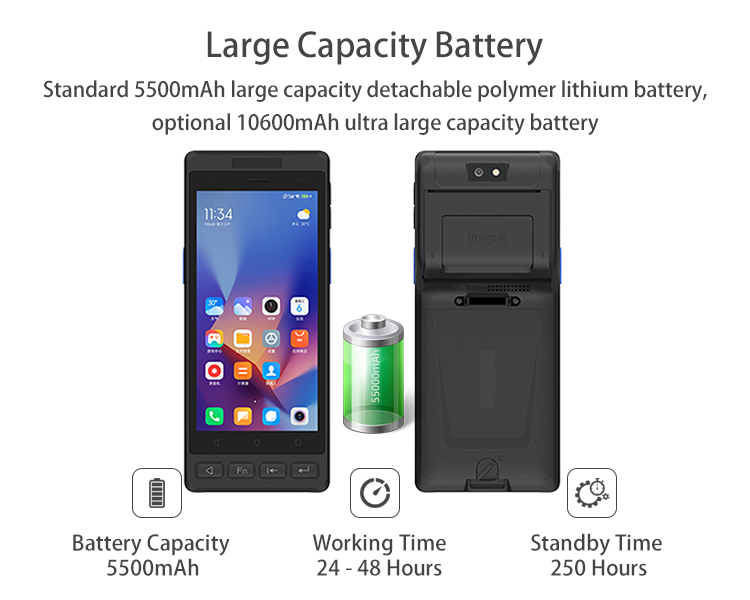

2. The 'Big Mac' battery

Utilizing ultra-low power consumption technology, it comes standard with a 5500mAh large capacity detachable polymer lithium battery, and can also be optionally equipped with a 10600mAh ultra large capacity battery,

eliminating the need to waste valuable working time due to frequent charging.

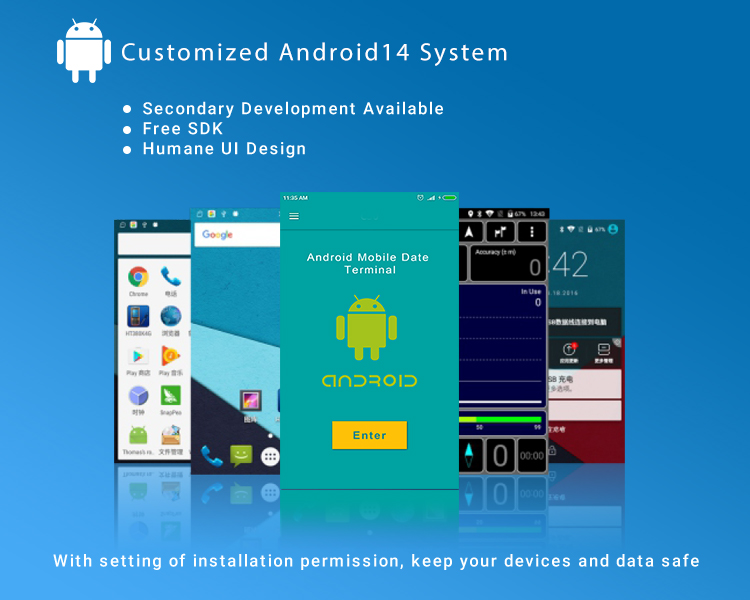

3. Android operating system, enjoy smooth operation

The Android 14 operating system, developed with deep customization, features a more user-friendly UI design and comes standard with 4GB+64GB of large capacity memory for smoother operation.

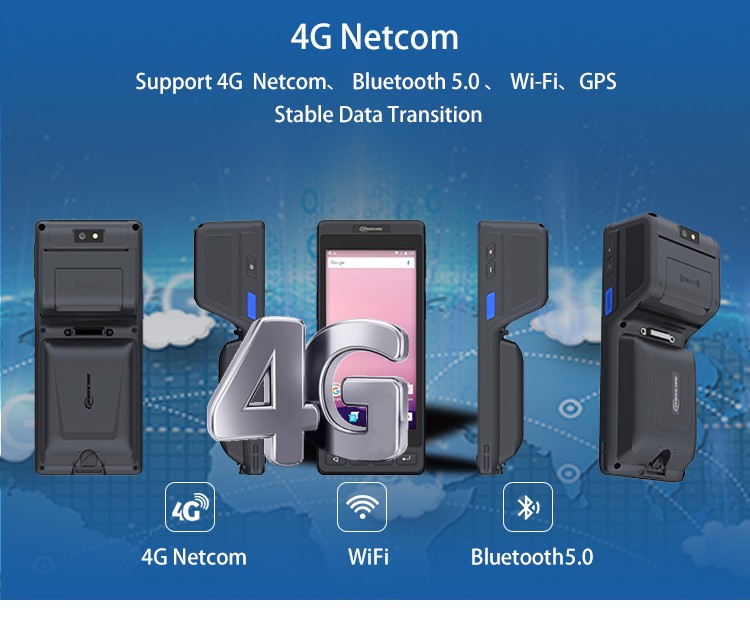

4. 4G full network, faster and more stable network

Support 4G full network, one machine can support communication cards from China Mobile, China Telecom, and China Unicom. Supports Bluetooth and dual band Wi Fi, resistant to industrial interference and electromagnetic interference, wireless connection, and faster data transmission speed.

5. Multiple optional functions

Optional NFC, QR code scanning, ID card recognition, PSAM card slot, ultra-high frequency UHF RFID, etc.

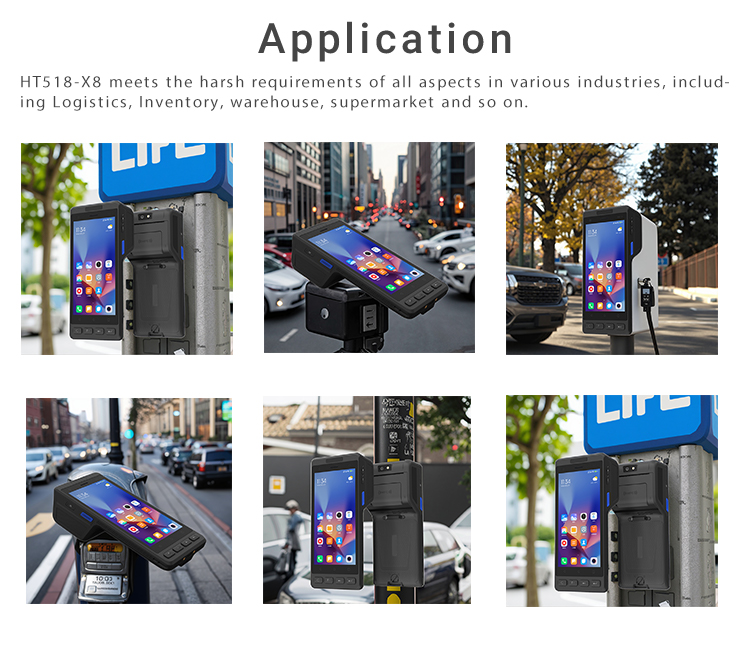

application

It can be widely applied in scenarios such as express logistics, parking fees,

mobile law enforcement, inventory management, mobile sales, product traceability,

takeout ordering, water, electricity and gas meter reading, etc.,

providing a better operating experience and achieving a qualitative leap in operational efficiency.

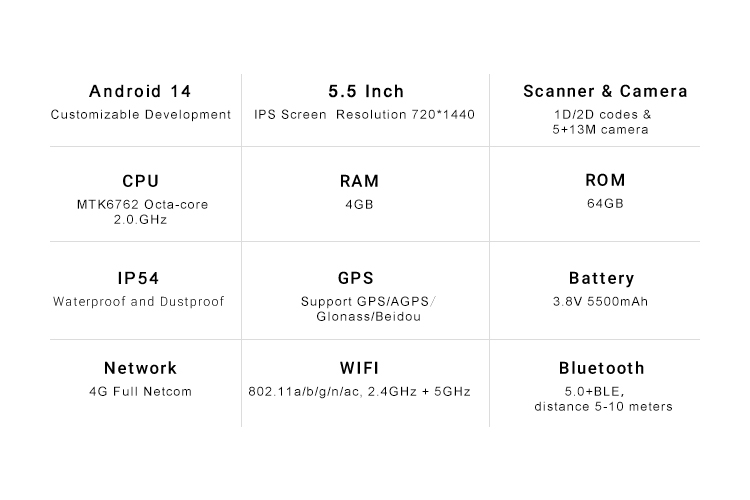

Specification Table

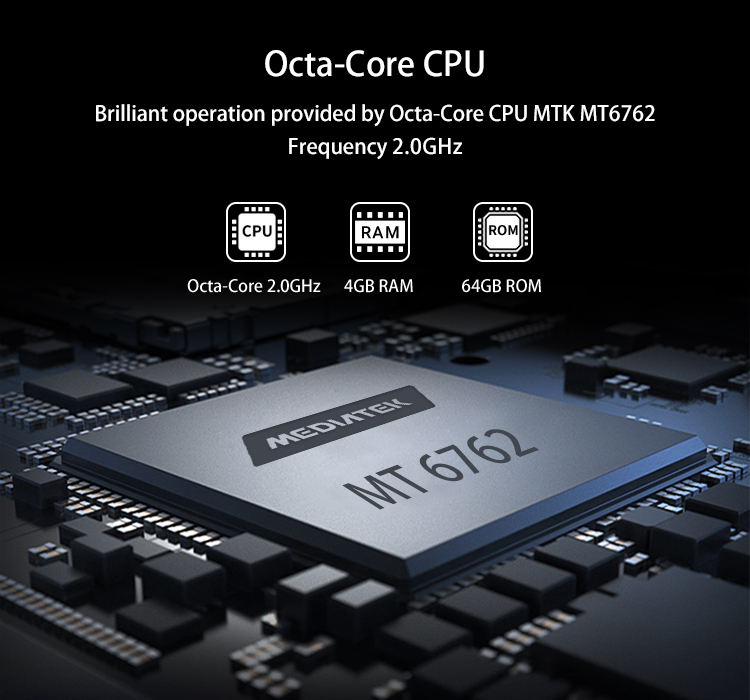

Basic configuration	CPU	MT6762, Cortex-A53 octa core, maximum frequency 2.0GHz
	operating system	Android 14， Support GMS
	Memory	Standard configuration: 4GB+64GB
	Expand memory	Supports up to 128GB MicroSD (TF) card

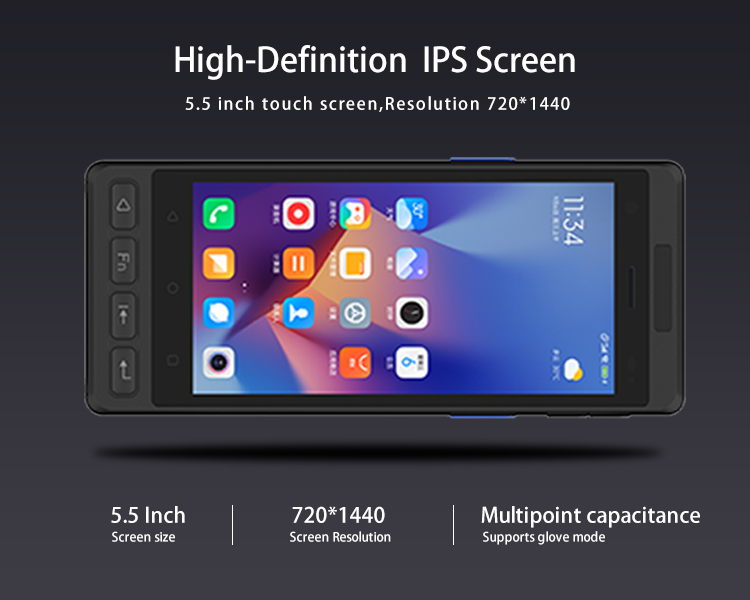

	screen	5.5-inch IPS screen, LED backlight, resolution 720 * 1440
	Touch Screen	Multi point capacitive touch screen
	Wi-Fi	802.11a/b/g/n/ac, 2.4GHz+5GHz dual band
	Bluetooth	Supports Bluetooth 5.0+BLE, with a transmission distance of 5-10 meters
	GPS	Support GPS+Glonass+Beidou+Galileo
	Camera	Rear: 13 megapixel high-definition camera, supports autofocus, with flash
	printer	Printing speed: 70mm/s; Support printing paper width: 58mm; support printing paper diameter: 30mm; Support printing paper types: thermal adhesive printing, thermal receipt paper printing, support black label printing
	mobile communication	4G-LTE \| 3G \| 2G GSM:B5/850;B8/900;B3/1800;B2/1900; 3G:WCDMA B1/2100;B2/1900;B5/850;B8/900; FDD LTE B1/B3/B7/B8/B12/B20 TDD: B38/B39/B40/B41
	battery	7.6V 2750mAh (equivalent to 3.8V 5500mAh) rechargeable polymer lithium battery, detachable
	sensor	Gravity sensor, light sensor, distance sensor
	Vibration prompt	Vibration motor
	sound	Built-in Speakers
	Slot	Option 2: SIM card slot * 2, TF card slot * 1
	key	PSAM card slot * 2 (optional)
	interface	Four on the front: return button * 1, Fn1， Delete key 1, confirm key * 1
Physical specifications	size	5 on the side: 1 power button, 1 volume+/- button, F1、F2
Physical specifications	weight	USB Type-C interface * 1, supports OTG function
protection grade	IP54, 6 sides can withstand the impact of a 1.2-meter drop into cement
work environment	Working temperature: -20 ℃ to 55 ℃; Storage temperature: -40 ℃ to 70 ℃; Environmental humidity: 5% RH -95% RH (no condensation)
Standard accessories	1 power adapter, 1 USB data cable
optional function	NFC	13.56MHz， Supports 14443A/B and 15693 protocols, with a card reading distance of 2-5cm
	Second generation ID card module	Offline reading and recognition of valid information on citizens' ID cards, in compliance with the requirements of the Public Security GA467 standard Working frequency: 13.56MHz ± 7kHz ID card sensing distance: 0~20 mm Reading time: ≤ 1 second Working temperature: 0 ℃~50 ℃
	Increase battery size	7.6V 5300mAh (equivalent to 3.8V 10600mAh), continuous operation for about 12-16 hours, depending on specific working conditions
	PSAM card slot	PSAM card slot * 2
	Ultra high frequency module	工Operating frequency: 840-960MHz Support: North America 902MHz-928MHz, China 920MHz-925MHz, Europe 865MHz-867MHz Support Agreement: EPC GEN2/ISO 18000-6C Maximum RF output power:+27dBm (0.5W) 50 * 50 ceramic antenna recognition distance of 3 meters

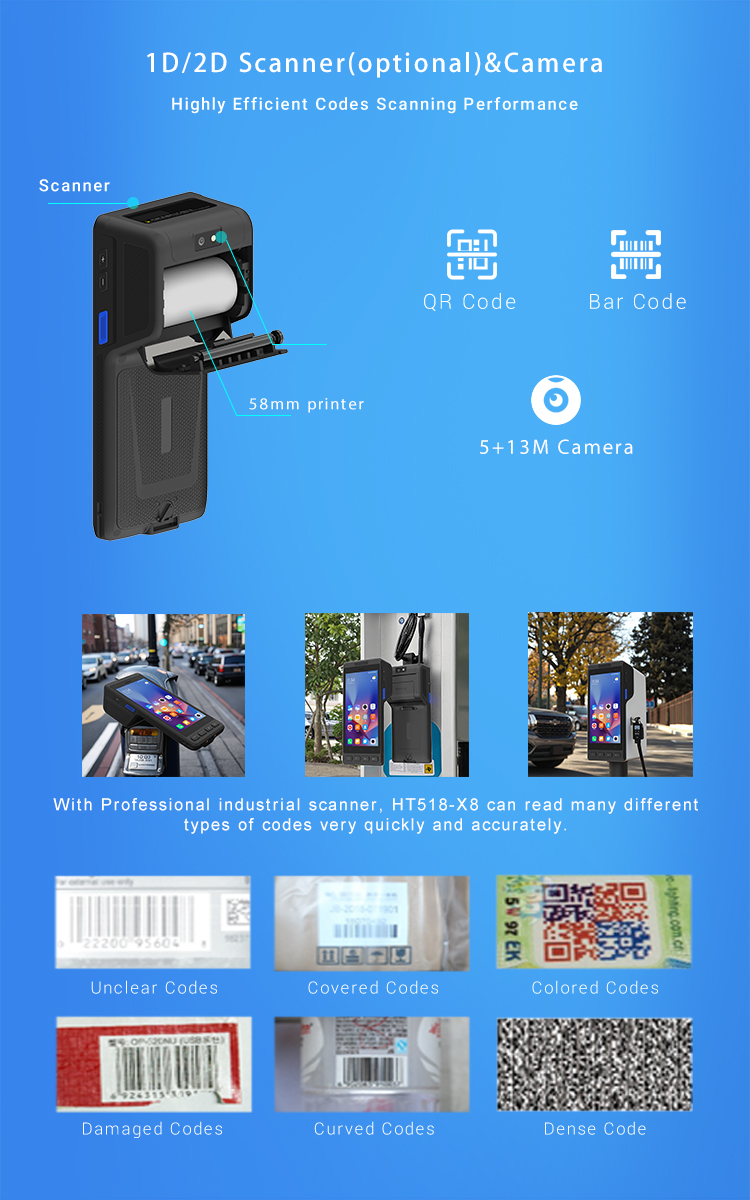

	2D barcode scanning	Optional two-dimensional scanning engines such as Honi N5703 and New World N1 are available, supporting mainstream one-dimensional and two-dimensional codes
