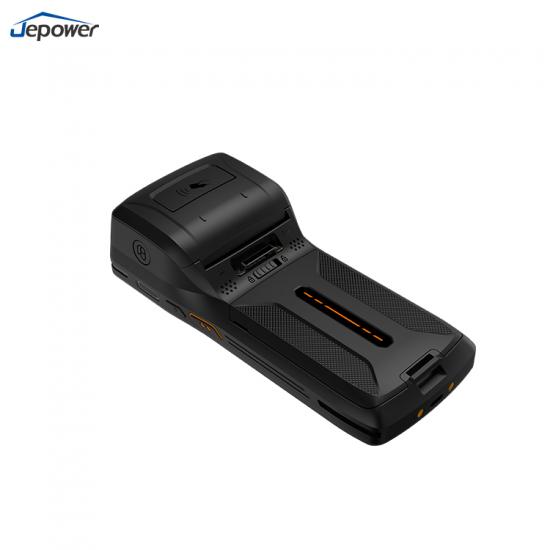

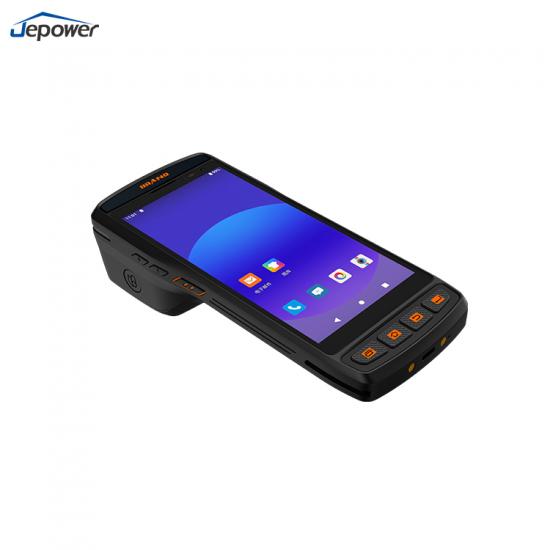

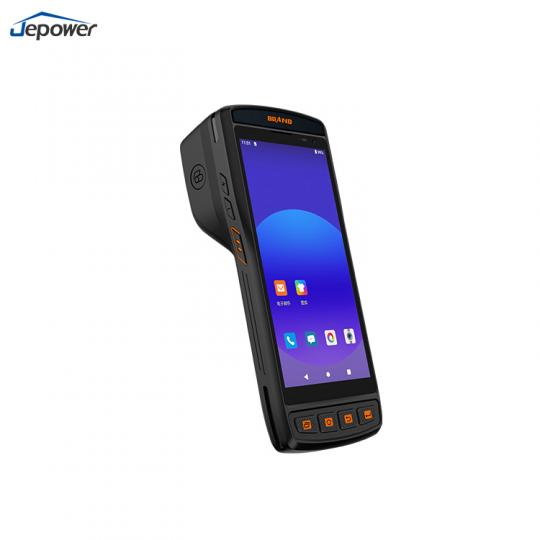

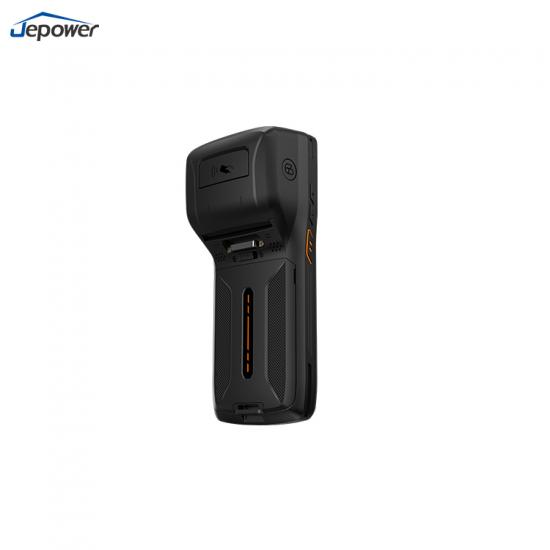

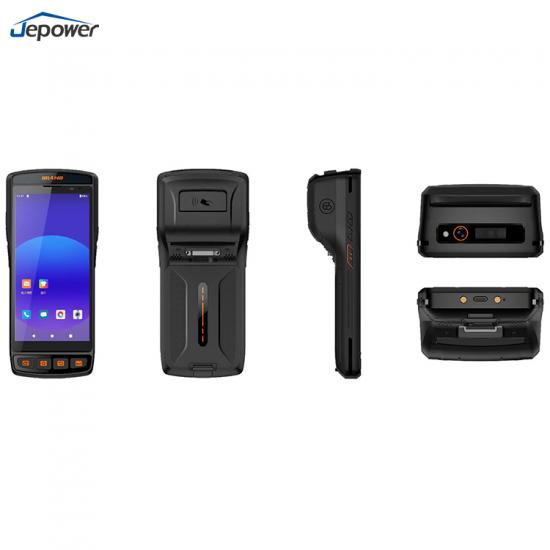

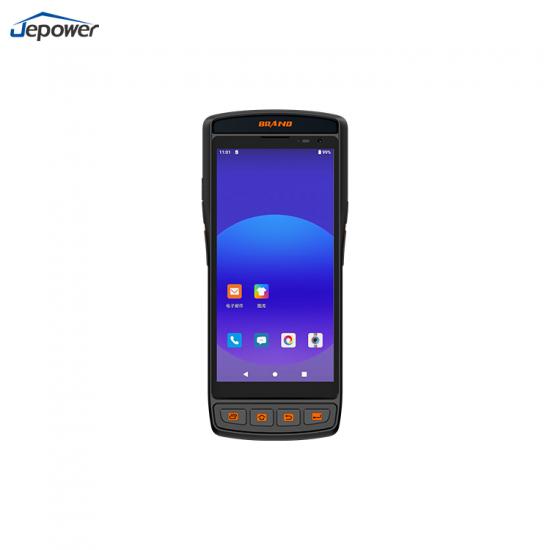

Android PDA with printing integrated with NFC 58mm printing 4GB+64GB industrial pda android and printing integrated machine

Specification Table

Basic configuration

CPU

MT6762, Cortex-A53 8-core, with a maximum dominant frequency of 2.0GHz

operating system

Android 11

Memory

Standard configuration: 3GB RAM+32GB ROM, optional 4GB+64GB

Expand Memory

Supports up to 256GB MicroSD (TF) cards

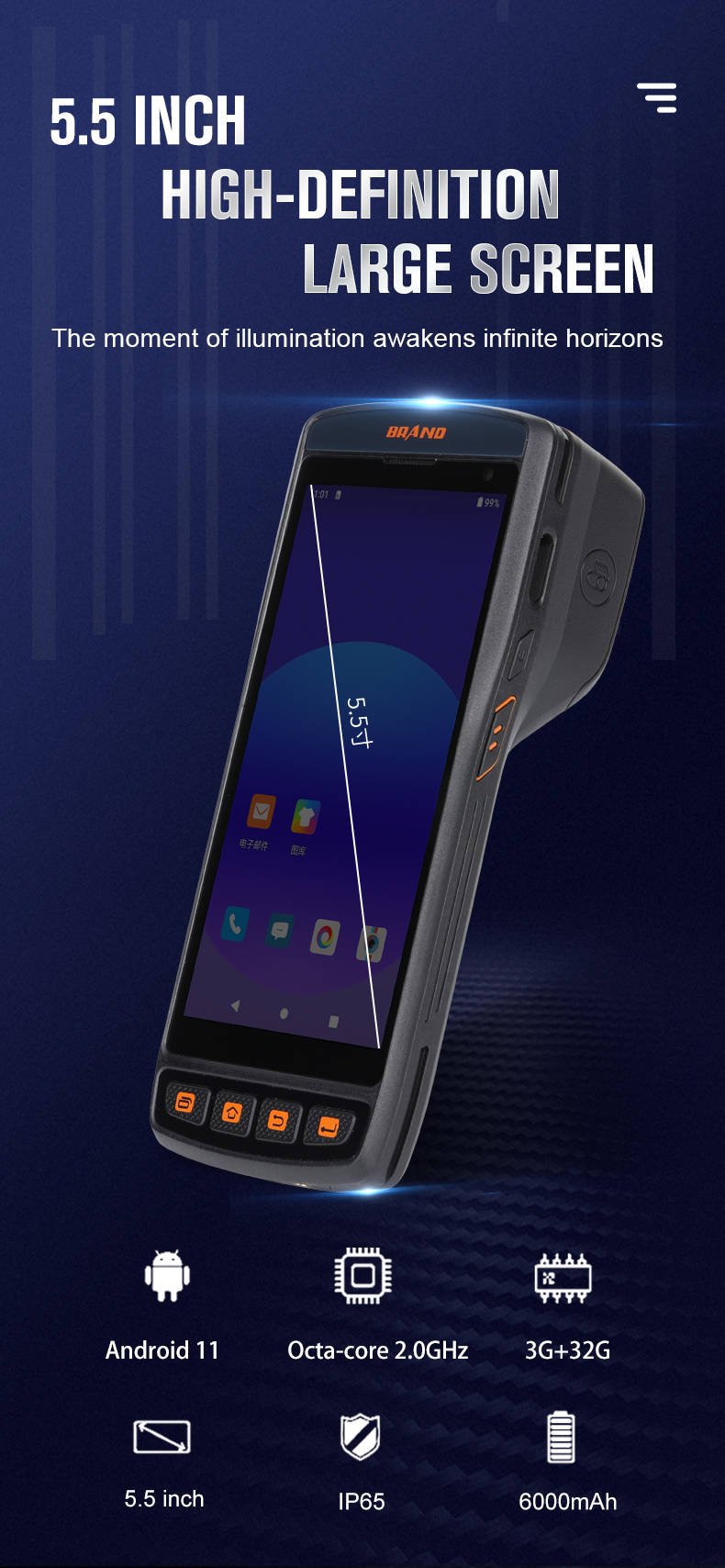

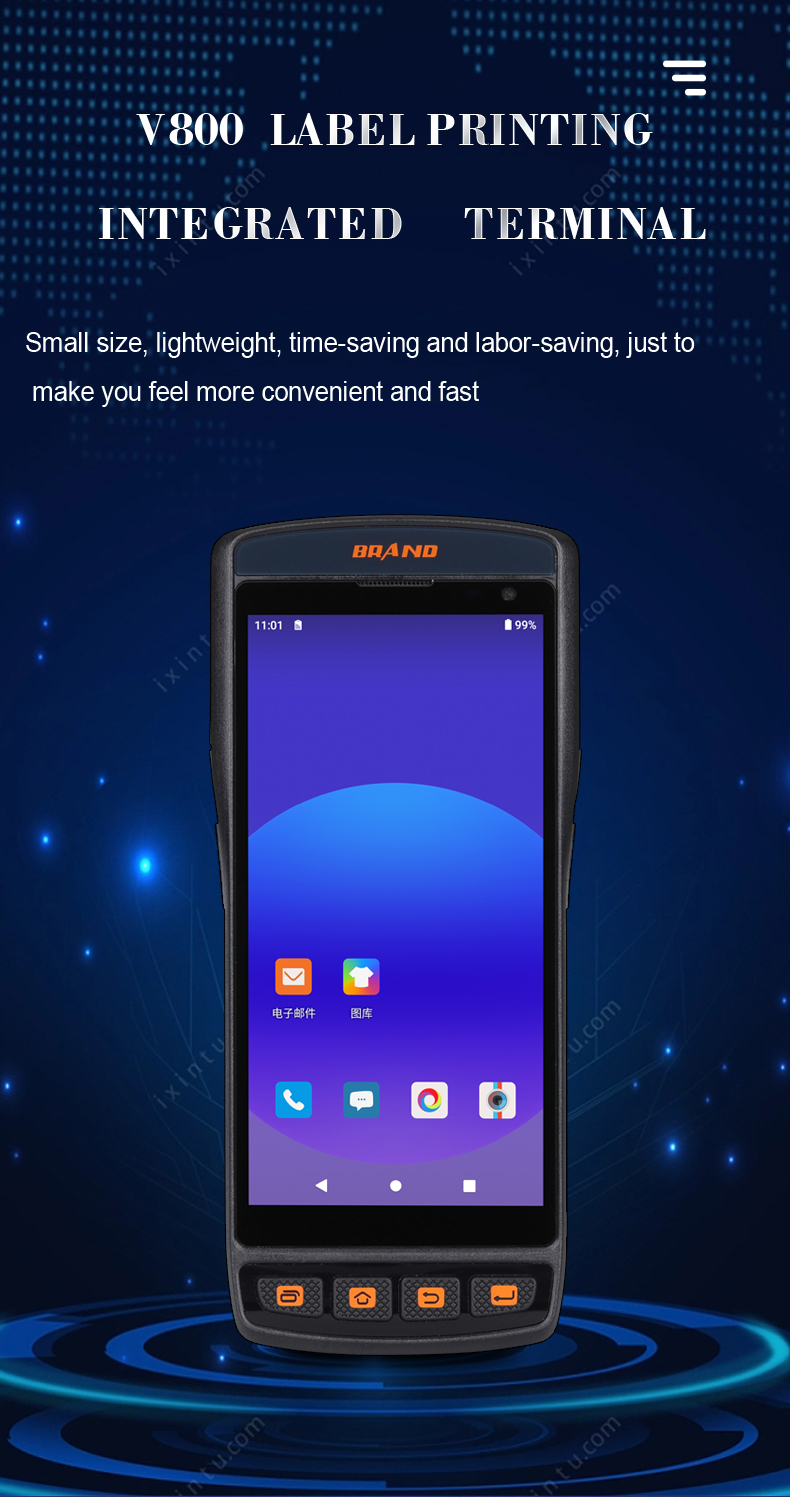

screen

5.5 inch IPS screen, LED backlight, resolution 720 * 1440

touch screen

Multi point capacitive touch screen

Wi Fi

802.11a/b/g/n/ac, 2.4GHz+5GHz dual frequency

Bluetooth

Supports Bluetooth 5.0+BLE, with a transmission distance of 5-10 meters

GPS

Supports GPS+Glonass+Beidou+Galileo

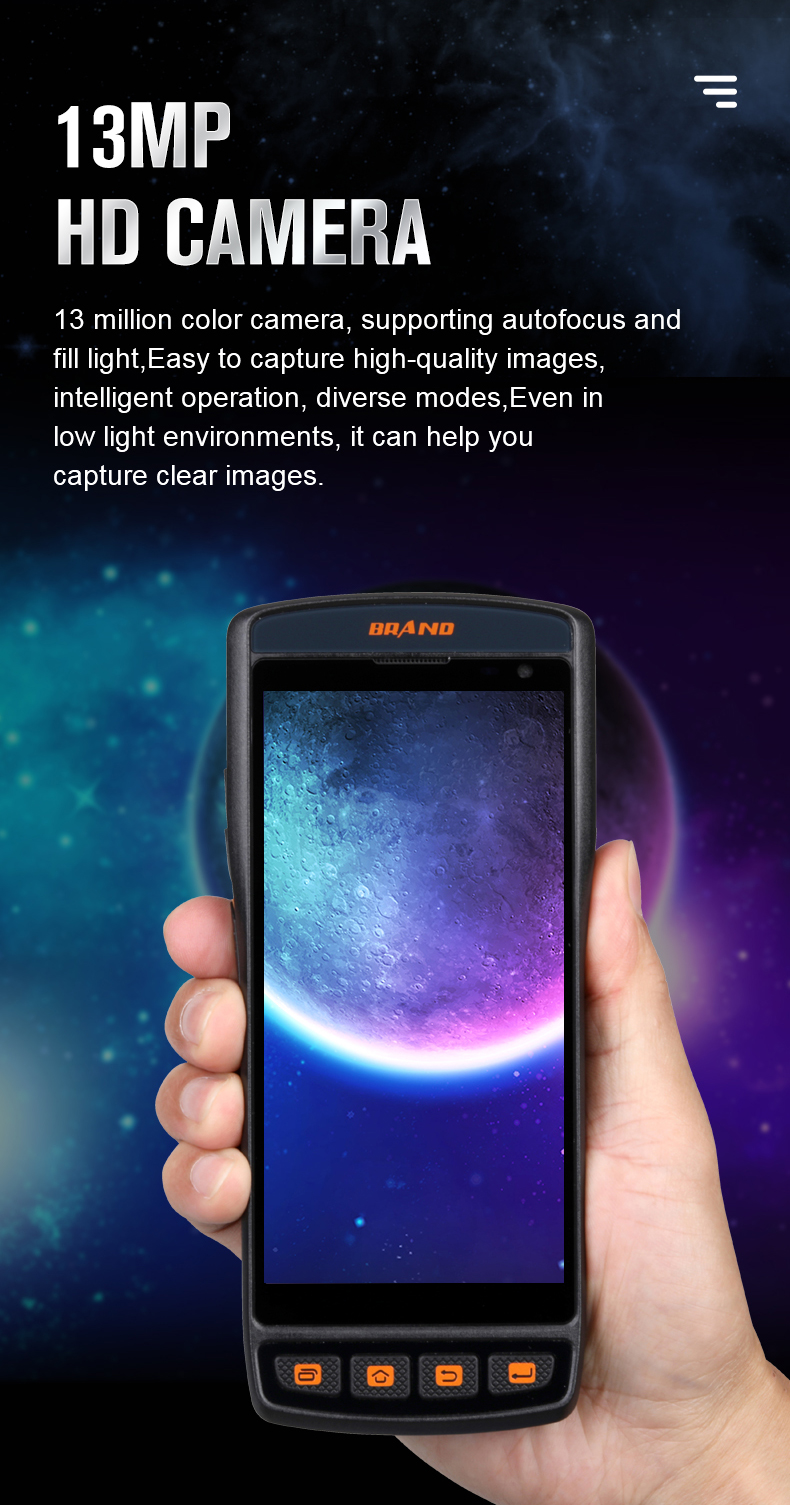

camera

Rear: 13 megapixel high-definition camera with autofocus and flash

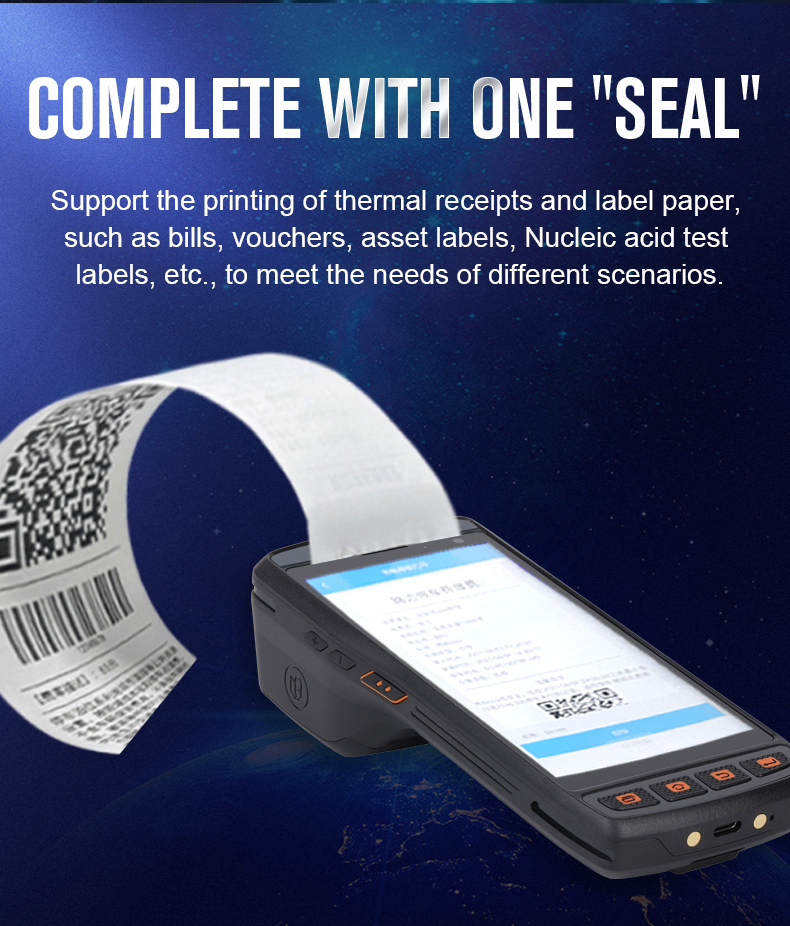

printer

Printing speed: 70mm/s; Support printing paper width: 58mm; Support printing paper diameter: 35mm;

Support printing paper types: thermal adhesive printing, thermal small ticket paper printing, and black label printing

mobile communication

4G-LTE | 3G | 2G

GSM:B5/850;B8/900;B3/1800;B2/1900;

3G:WCDMA B1/2100;B2/1900;B5/850;B8/900;

3G:TD-SCDMA B34/B39;

FDD LTE B1/B3/B4/B5/B7/B8/B17/B20

TDD: B38/B39/B40/B41

battery

7.6V 3000mAh (equivalent to 3.8V 6000mAh) rechargeable polymer lithium battery, detachable

Standby time>360 hours; Working hours>12 hours; Charging time 3-4 hours, using standard power adapter and data cable

sensor

Gravity sensor, light sensor, distance sensor

Vibration prompt

Vibration motor

voice

Integrated speaker

Card slot

Nano SIM card slot * 2, TF card slot * 1, PSAM card slot * 2 (optional)

Keys

Front: Menu key * 1, Home key * 1, Return key * 1, Enter key * 1

Side: Power button * 1, Volume+/- button * 1, Scan button * 2

interface

USB Type-C interface * 1, supporting OTG function

Physical specifications

Protection level

size

177mm (length) * 73mm (width) * 22mm~45mm (thickness)

weight

Less than 400g (depending on functional configuration)

work environment

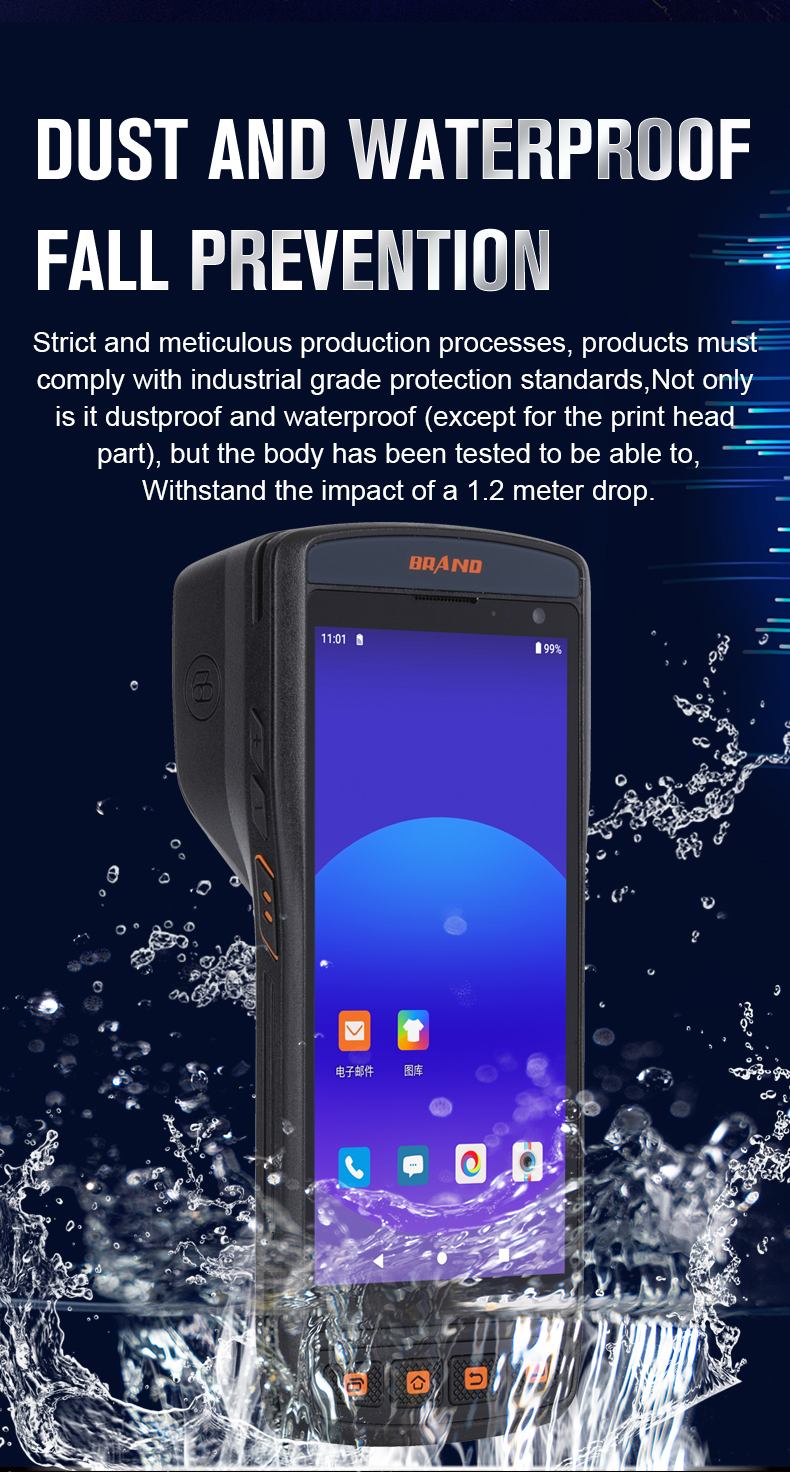

IP65, 6 sides can withstand the impact of 1.2 meters falling onto cement

Physical specifications

Working temperature: -20 ℃ to 55 ℃; Storage temperature: -40 ℃ to 70 ℃; Environmental humidity: 5% RH -95% RH (without condensation)

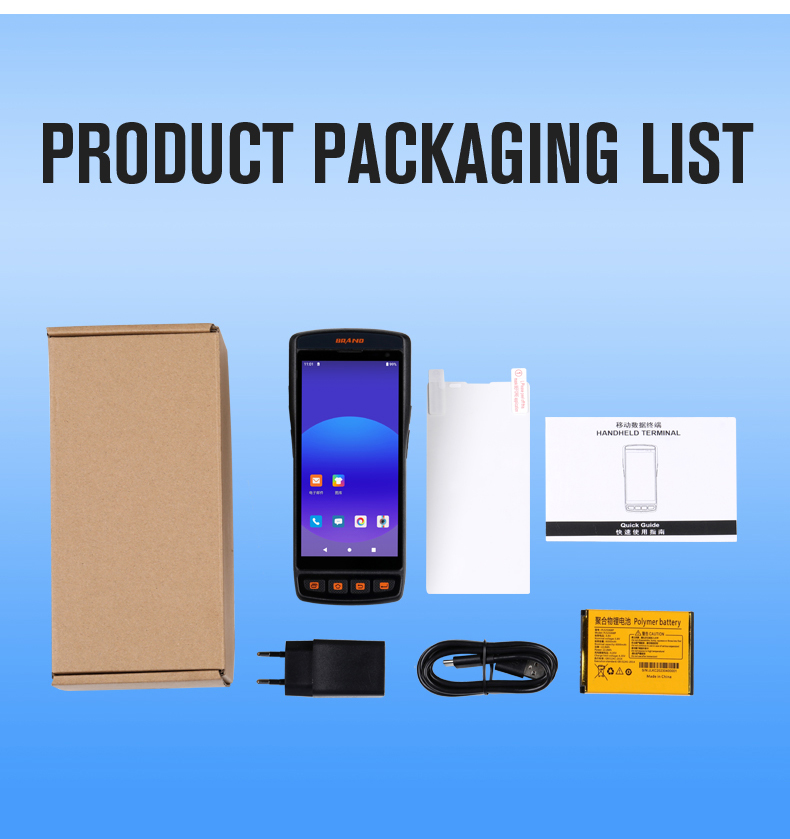

标准配件

电源适配器 *1, USB数据线 *1，保护膜*1

选配功能

NFC

13.56MHz，支持14443A/B、15693协议，读卡距离2~5cm

二代身份证模块

公安部认证身份证识别专用模块

前置摄像头

800万像素摄像头

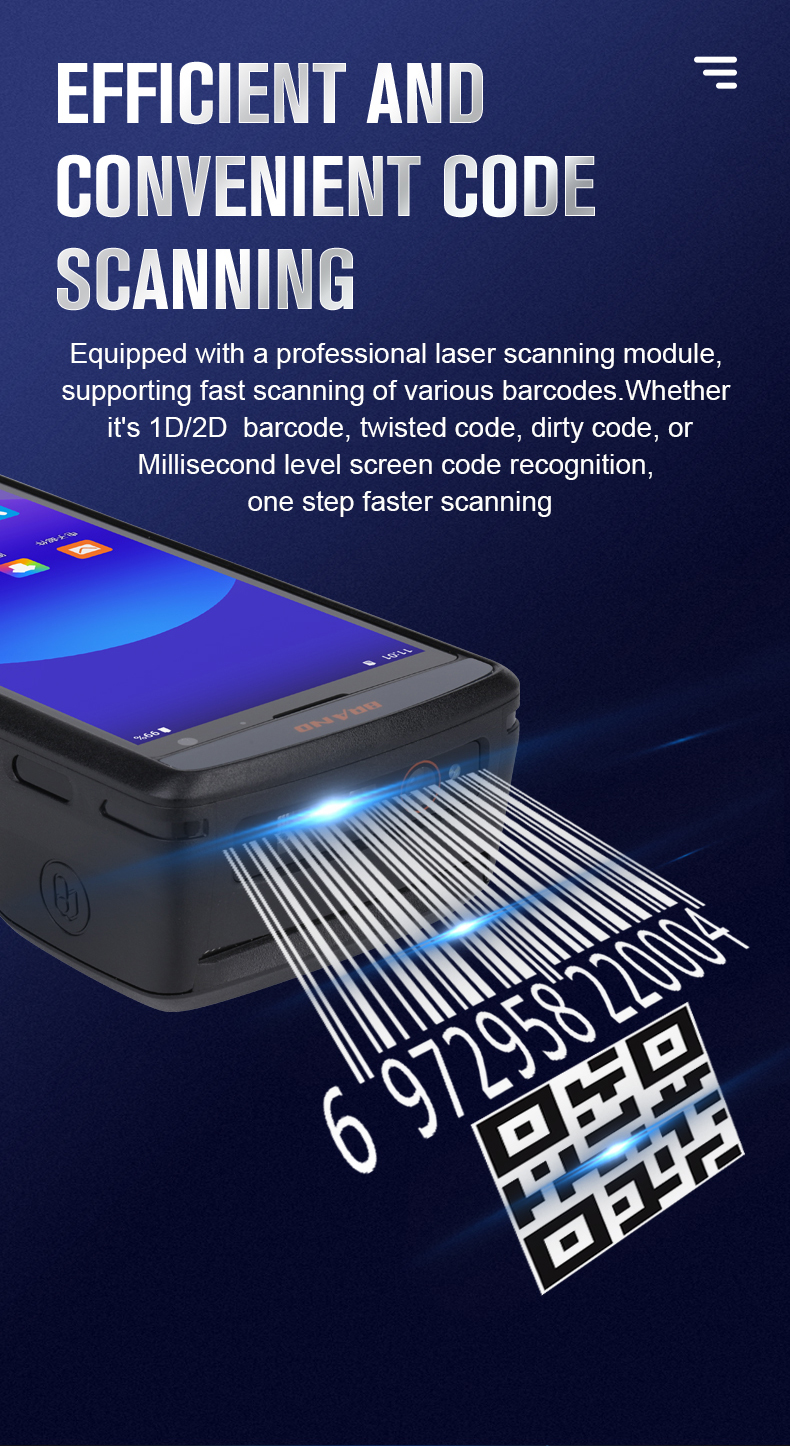

2D 条码扫描

可选民德660、斑马SE4710、霍尼N5703等二维扫描引擎，支持主流一维、二维码
