HT518-K55 Long Range UHF RFID Handheld Terminal Android 13 4G LTE PDA With Barcode Scanner For Warehouse Inventory

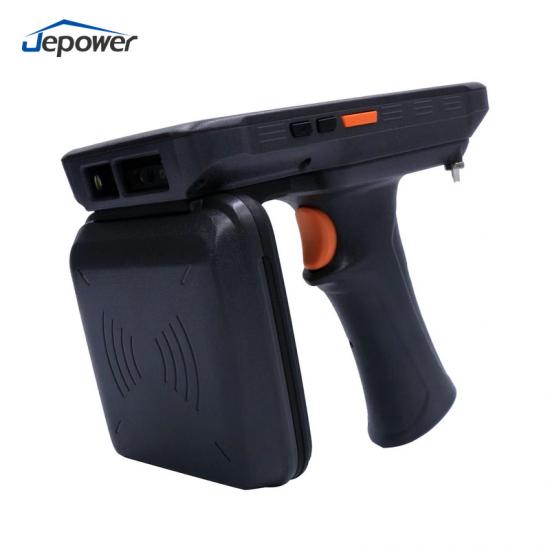

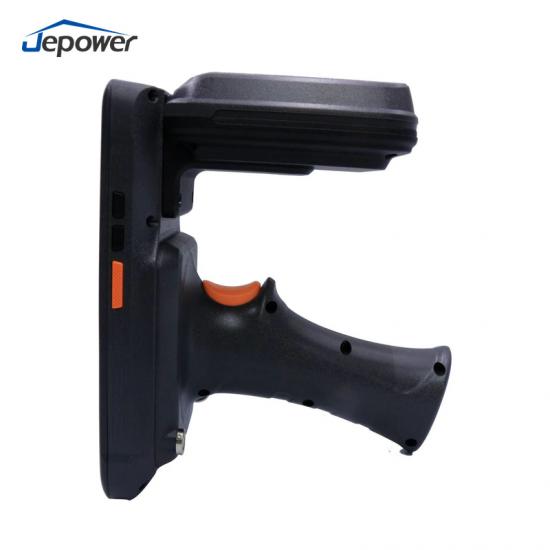

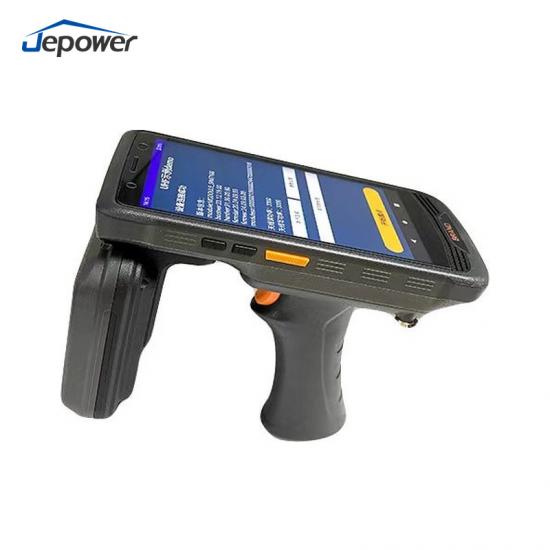

HT518-K55 Long Range UHF RFID Handheld Terminal

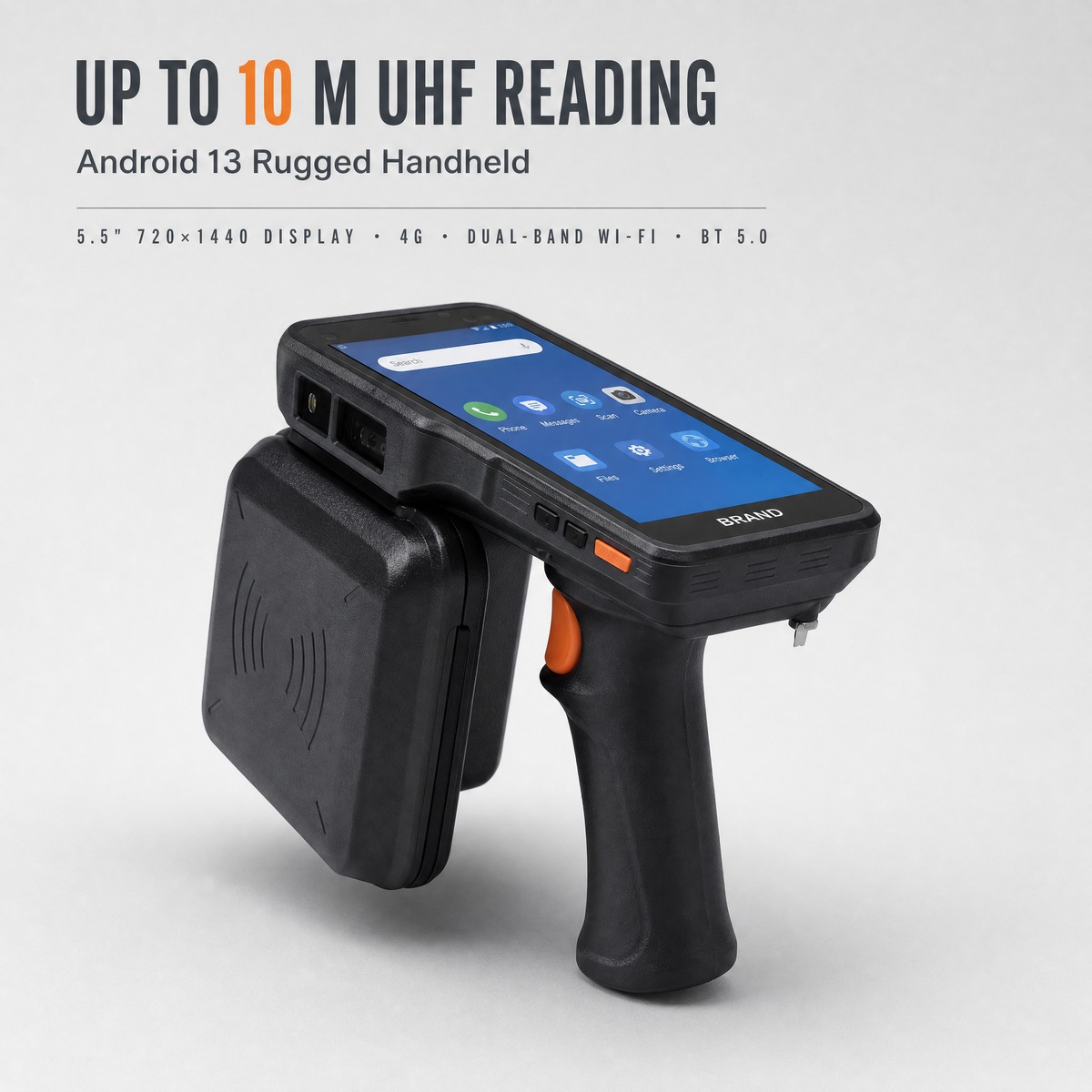

The HT518-K55 is a long-range UHF RFID handheld terminal designed for fast, hands-on data capture in warehouses, retail stores and field operations. Built on Android 13 with a Qualcomm octa-core 2.4 GHz processor, it pairs an ultra-long-range UHF module with a 5.5-inch HD touch screen and a 10000 mAh removable battery, so your team can read hundreds of EPC tags in a single pass and work a full shift without recharging. An optional 1D/2D scan engine and 13.56 MHz NFC make the same device usable for barcode and card-based workflows.

Key Features

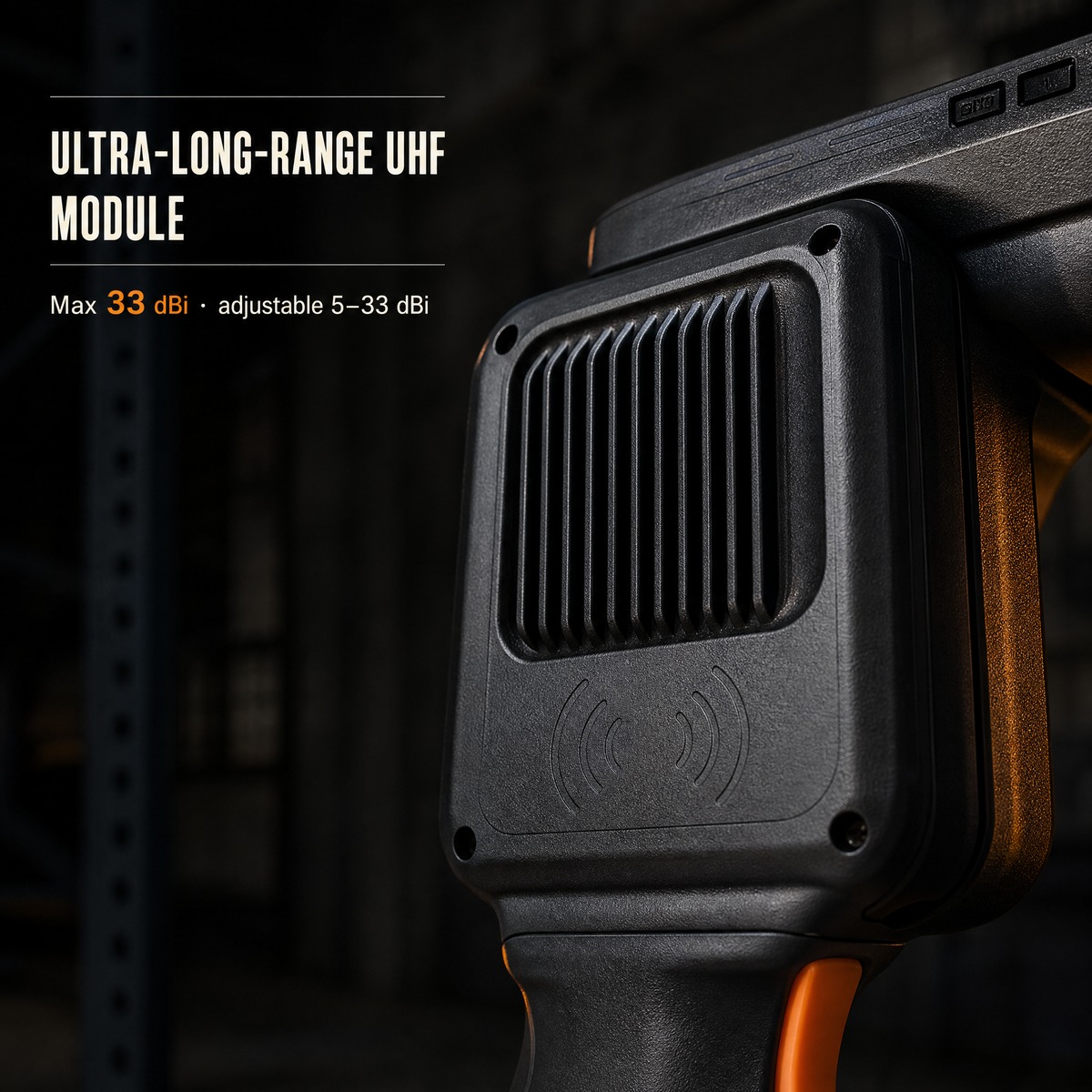

• Long-range UHF RFID reading — ultra-long-range UHF module with adjustable output power reads EPC C1 GEN2 / ISO18000-6C tags at around 10 meters (actual distance depends on tag size and environment).

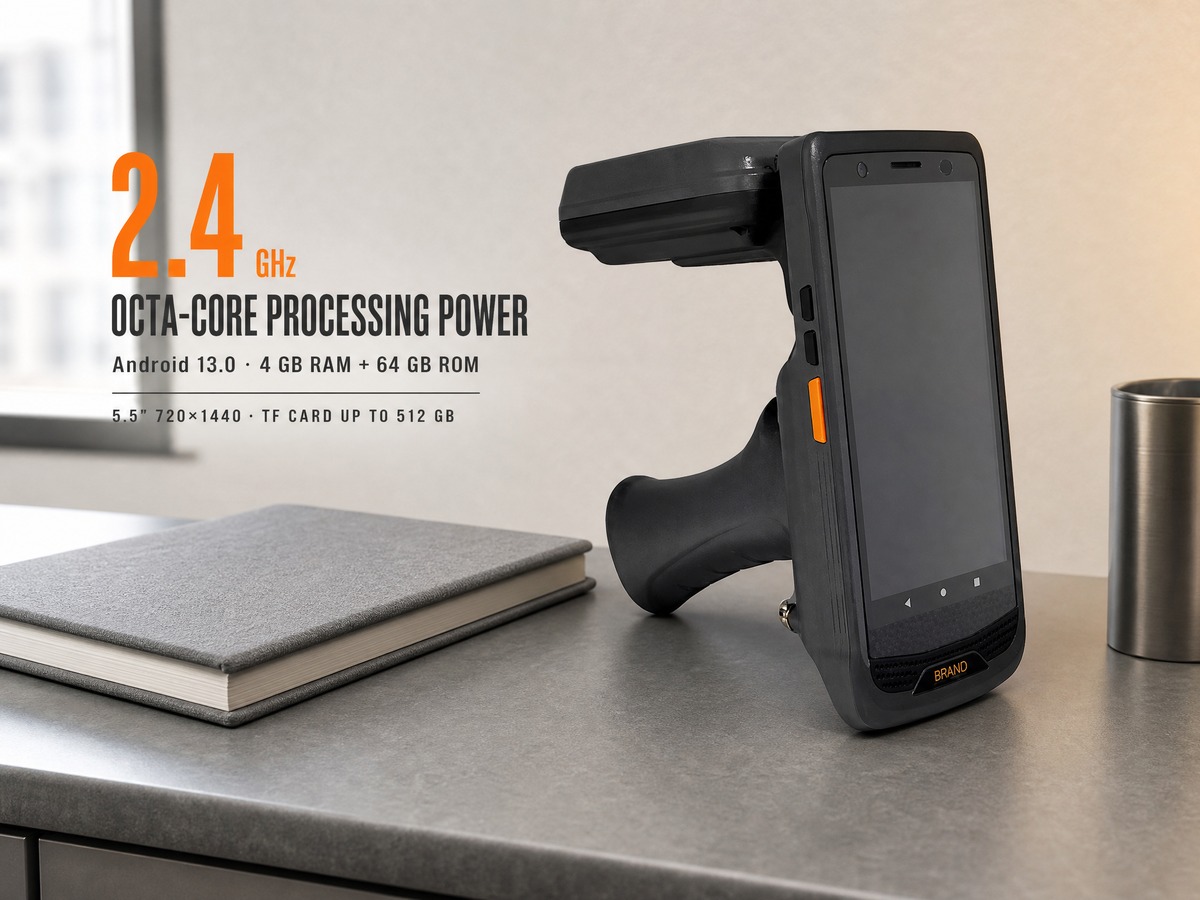

• Android 13 platform — Qualcomm 6225 octa-core 2.4 GHz processor, 4 GB RAM and 64 GB storage (expandable to 512 GB with a TF card).
• 5.5-inch HD display — 720 × 1440 capacitive multi-touch screen in a 169.8 × 78.2 × 23 mm body weighing under 410 g with the battery.
• All-shift battery — 3.8 V / 10000 mAh removable polymer battery with 5 V 3 A charging, plus an optional 2-pin charging base for continuous operation.
• Full connectivity — 4G LTE, WCDMA and GSM voice/data, dual-band 2.4 G / 5 G Wi-Fi, Bluetooth 5.0, and GPS / BeiDou / GLONASS / Galileo positioning.
• Dual cameras — 8 MP front camera and 16 MP rear autofocus camera with high-brightness LED flash for proof-of-condition photos.
• Optional barcode scanning — K2 or Honeywell N5703 / 6703 / 6803 scan engines read 1D and 2D codes including PDF417, MicroPDF417, Data Matrix, QR Code, MicroQR, Aztec and Han Xin.
• Optional NFC and PSAM — 13.56 MHz NFC with 0–5 cm reading distance and two PSAM slots for payment or identity projects.

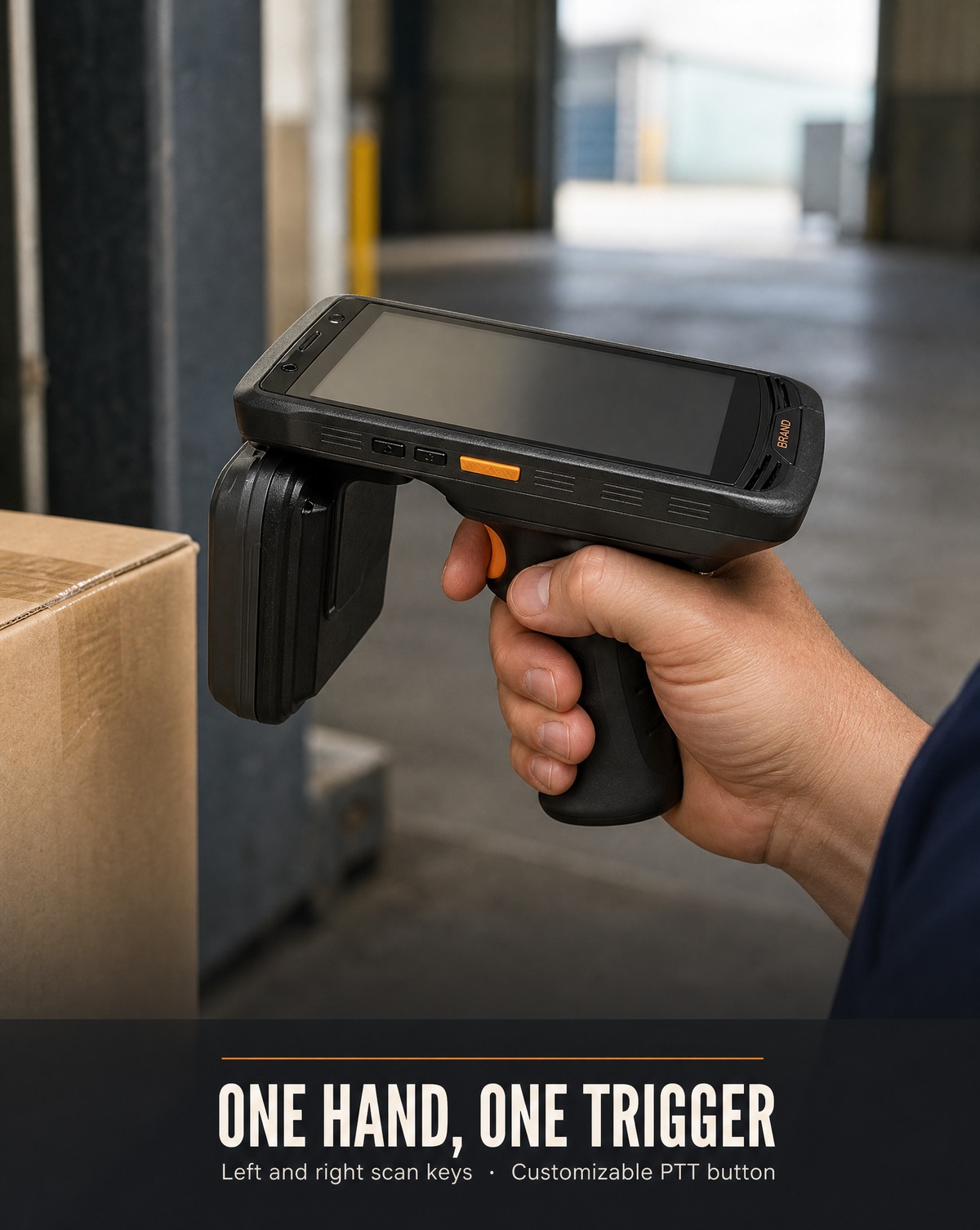

• Purpose-built controls — power key, left and right barcode scan keys, volume keys and a custom PTT key, plus a three-colour breathing light and vibration alert.
• Industrial temperature range — operating from −25 °C to 50 °C and storage from −40 °C to 70 °C.

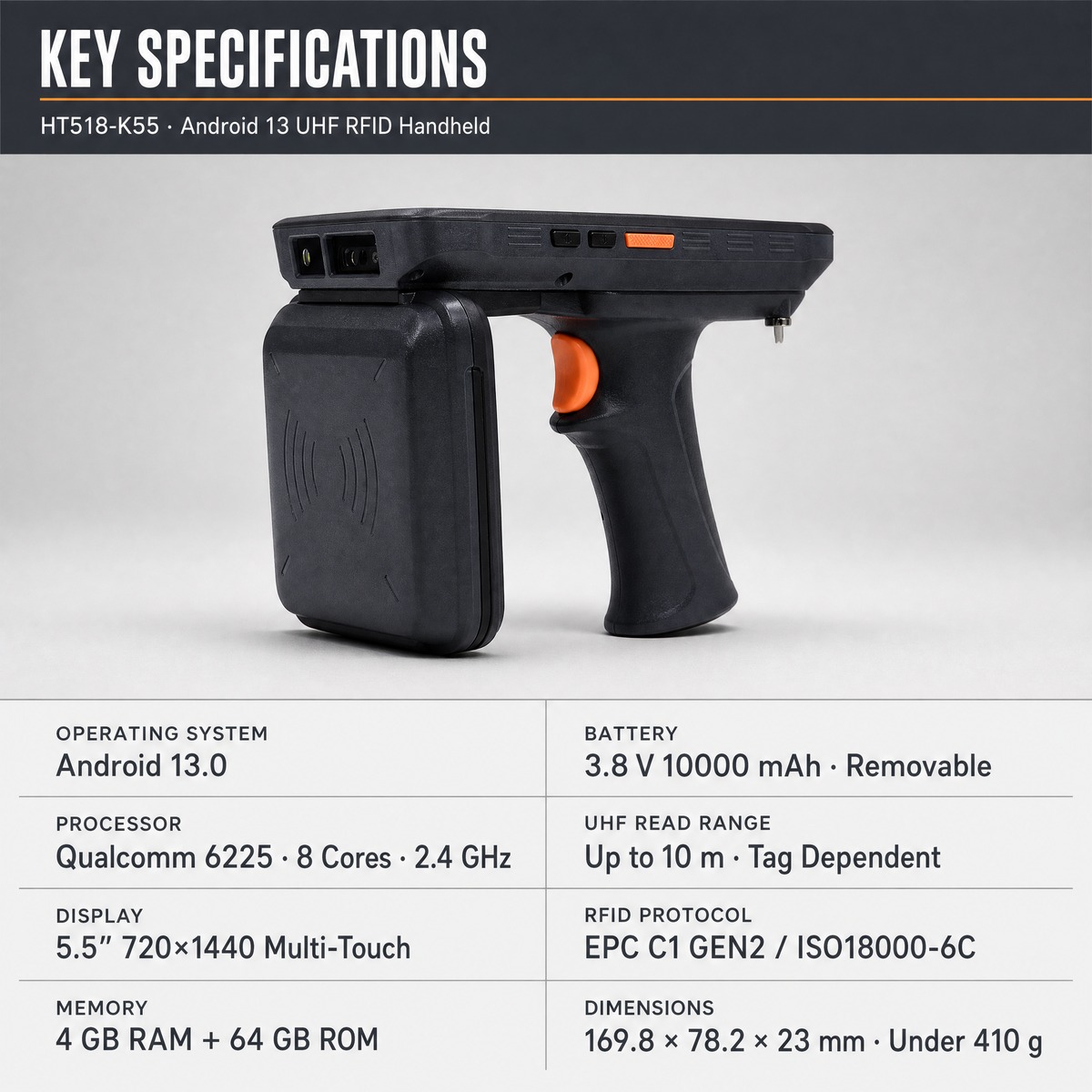

Specifications

Optional Modules

Applications

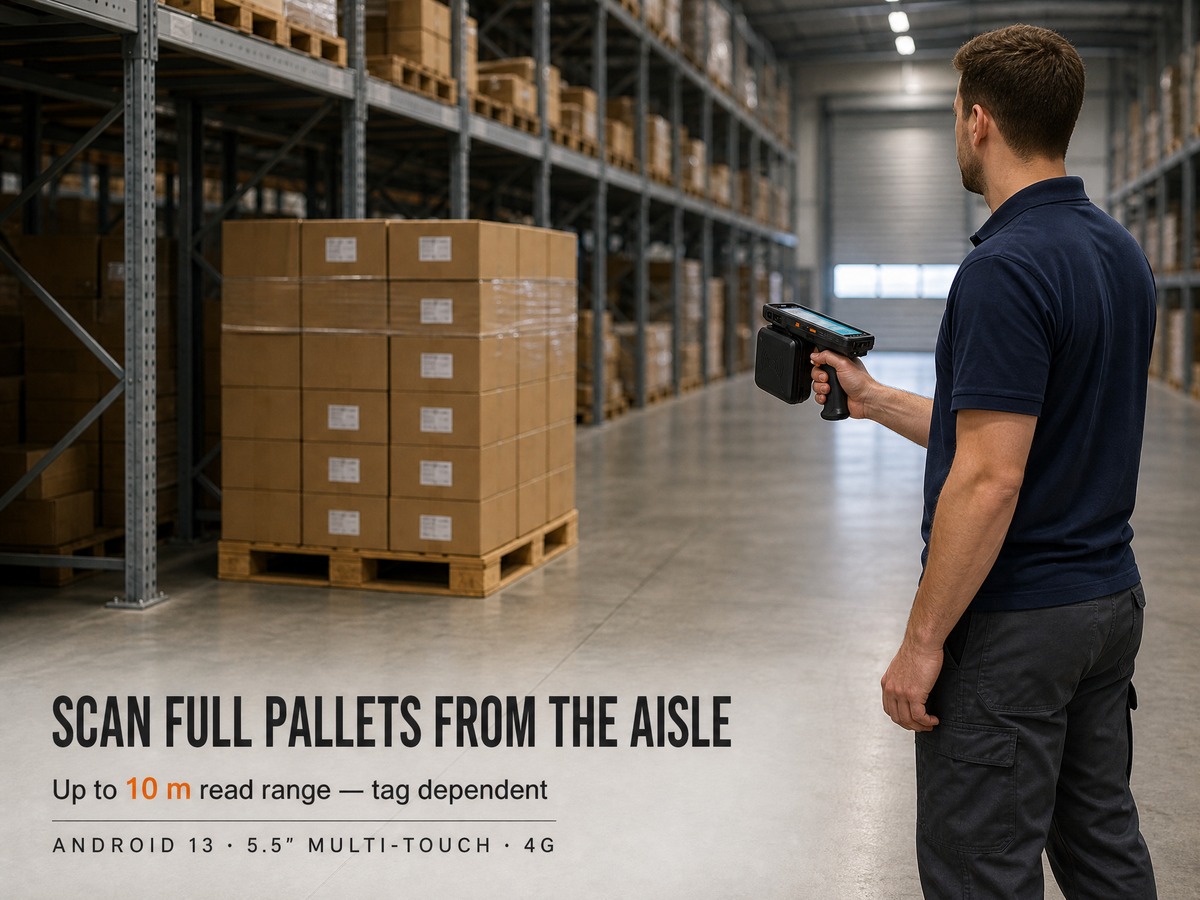

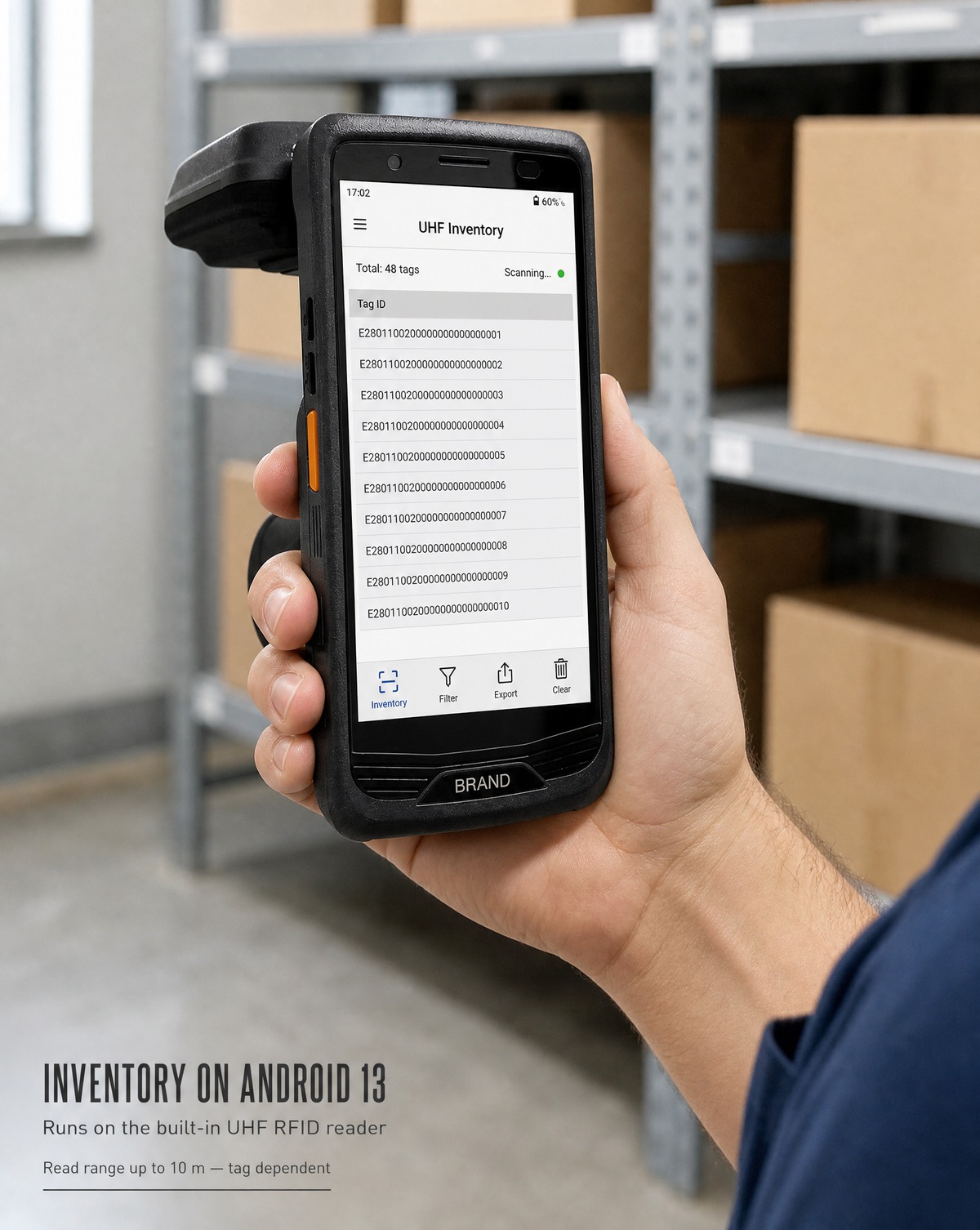

• Warehouse inventory and cycle counting — bulk-read rack and pallet tags, then reconcile stock in the WMS in real time.
• Retail and apparel stocktaking — count items on the sales floor and in the stockroom without scanning each barcode individually.
• Logistics and asset management — track containers, cages and returnable assets at loading docks.
• Library and archive management — shelf-reading and inventory of books, files and archived records.
• Manufacturing WIP tracking — follow work-in-progress and tooling through production stages.
• Healthcare equipment tracking — locate and audit movable medical equipment across departments.

FAQ

• What is the UHF reading distance? Around 10 meters. The actual distance depends on tag size, tag orientation, output power setting and the environment.
• Which RFID standards and frequencies are supported? EPC C1 GEN2 / ISO18000-6C, with China 920–925 MHz, US 902–928 MHz and Europe 865–868 MHz band options.
• Can it also scan barcodes? Yes — an optional K2 or Honeywell N5703 / 6703 / 6803 scan engine adds 1D/2D barcode capture to the same device.
• What is the battery life? A 10000 mAh removable battery is used, and an optional 2-pin charging base keeps spare units charged for multi-shift operation.
• Do you support OEM/ODM and customization? Yes. Jepower supports OEM/ODM projects including custom configurations, accessories and branding — please contact us with your requirement.
• What are the MOQ, price and lead time? These depend on configuration and order quantity — please send your requirement and we will reply with a quotation.
