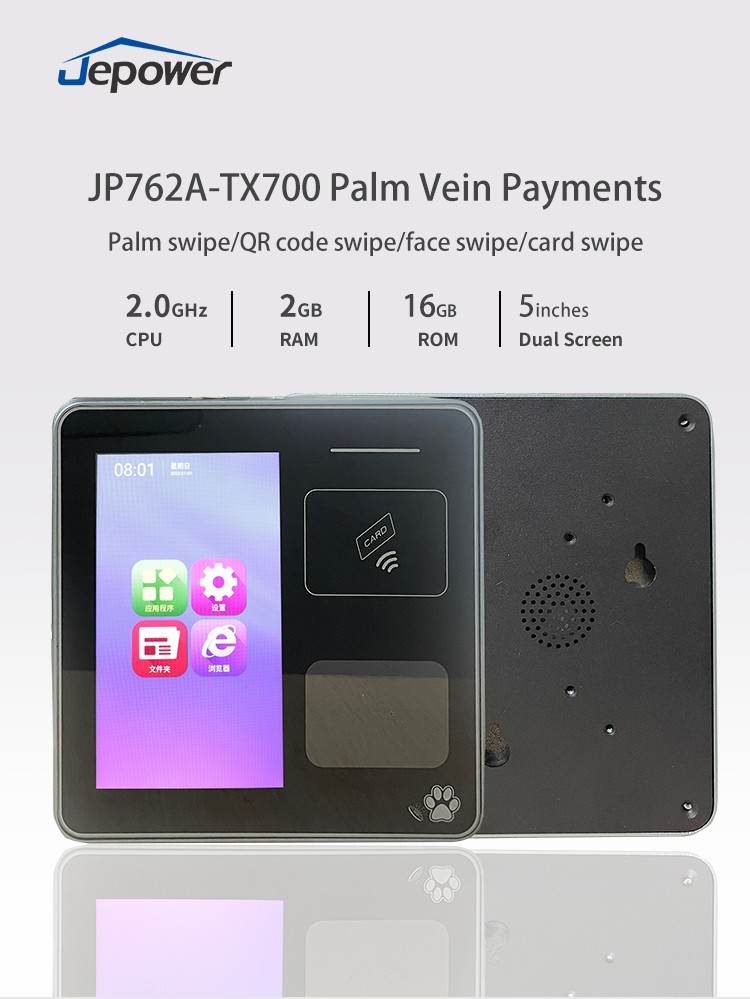

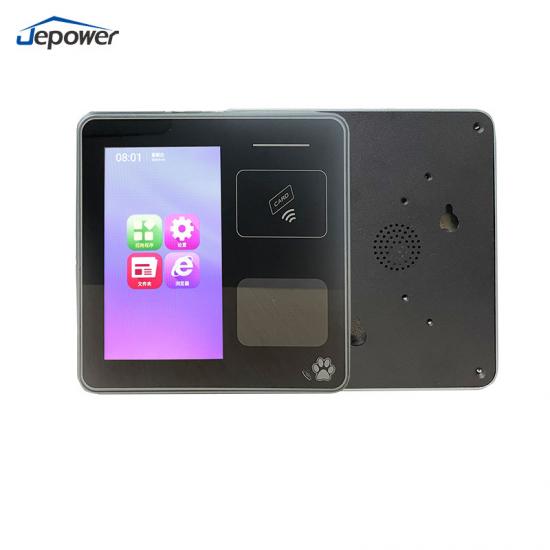

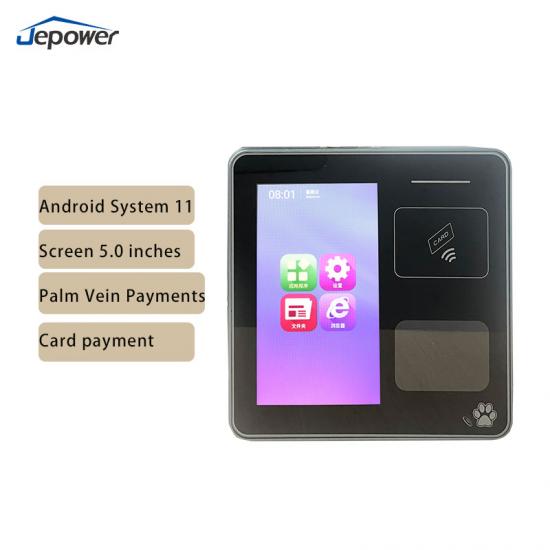

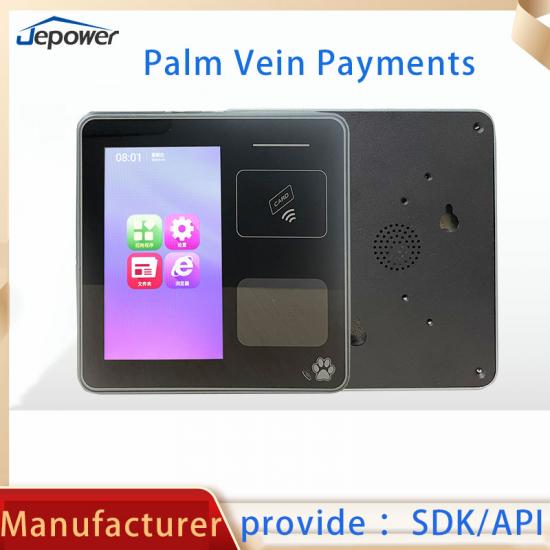

Palm Vein Payments 5. 0Inch desktop palm swiping payment device, palm vein scanner Hand vein scanner payment

Model：JP762A-TX700 Android11.0 5inch palm vein scanner

Brand:
Jepower
Item NO. :
JP762A-TX700
Product Origin:
Guangzhou
Color:
Black
Shipping Port:
guangzhou
Lead Time：
7

Features and Advantages

Palm Vein Payments 5. 0Inch desktop palm swiping payment device, palm vein scanner Hand vein scanner payment

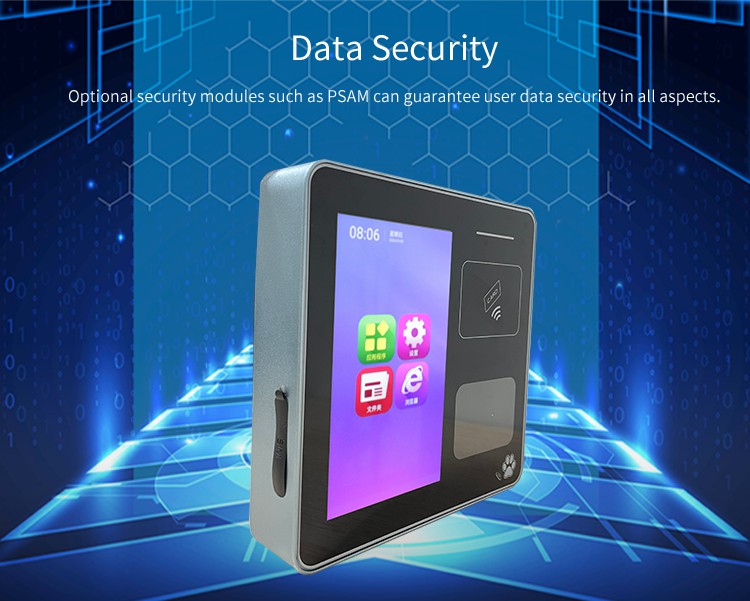

High security: Palmprint is a unique biometric feature, so swiping palm payment devices

provide high security and reduce the risk of fraud and identity theft. User biometric data

is usually stored in encrypted form, enhancing data security.

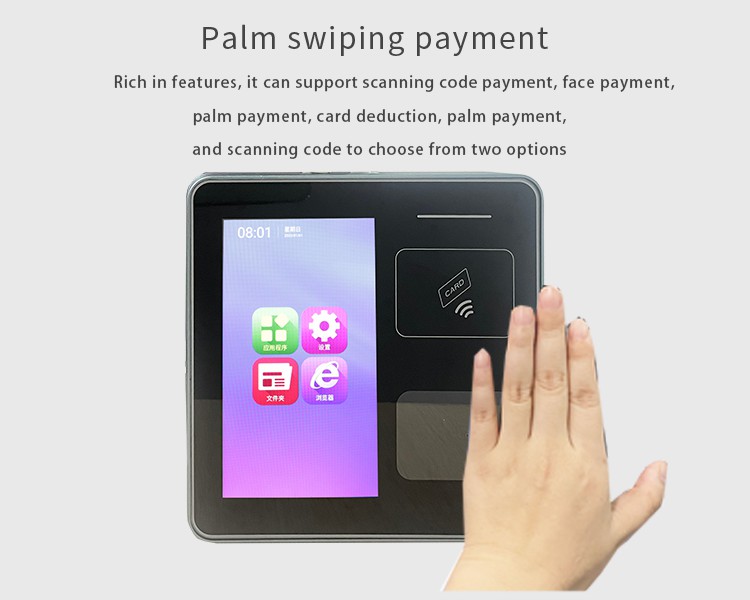

Convenience: No card or cash is required for palm swiping payment.

Users only need to scan with their palms to complete payment,

thereby improving the convenience of payment and reducing the burden on their wallets.

palm vein payment Fast transaction: Palm swiping payment is usually very fast,

and users can easily place their palms on the scanner to complete the transaction,

saving the waiting time of traditional payment methods.

Contactless payment: Especially during the outbreak of the epidemic

, contactless payment has become particularly important

. Palm swiping payment is a contactless payment method

that helps reduce exposure risks and makes users feel safer.

Multifunctionality: Some handheld payment devices not only support payment,

but can also be used for various applications such as identity verification,

access control, and time recording, making them multifunctional devices.

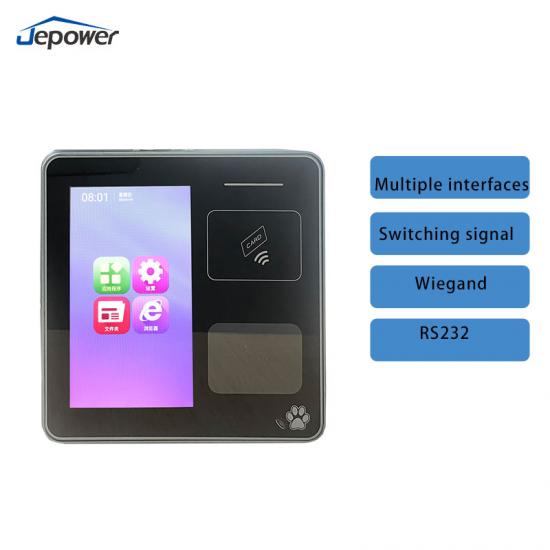

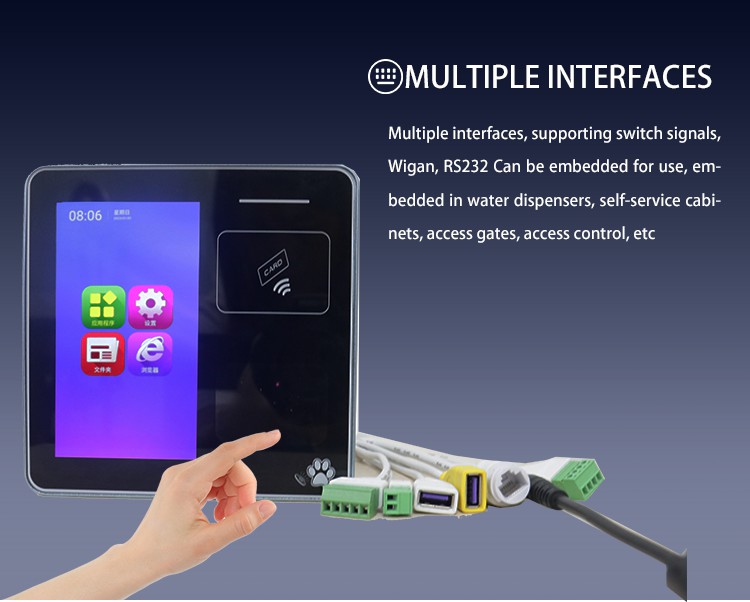

Easy integration:

A variety of interfaces, support switch signal, Wiegand, RS232

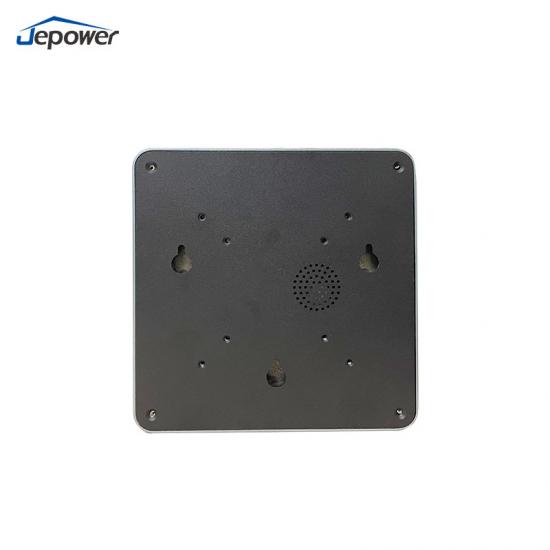

Strong and durable, aluminum alloy shell, strong and durable

Application Scenarios:

Can be used as a separate palm swiping consumption machine, suitable for campus, enterprises,

government agencies canteen, supermarkets, clubs and other charging occasions;

Embedded use, embedded into the water dispenser, self-service cabinet, access gate, access control, etc.

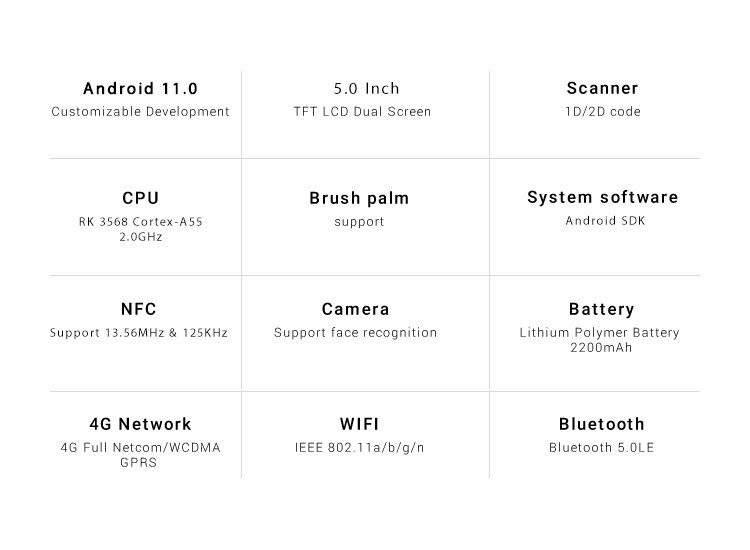

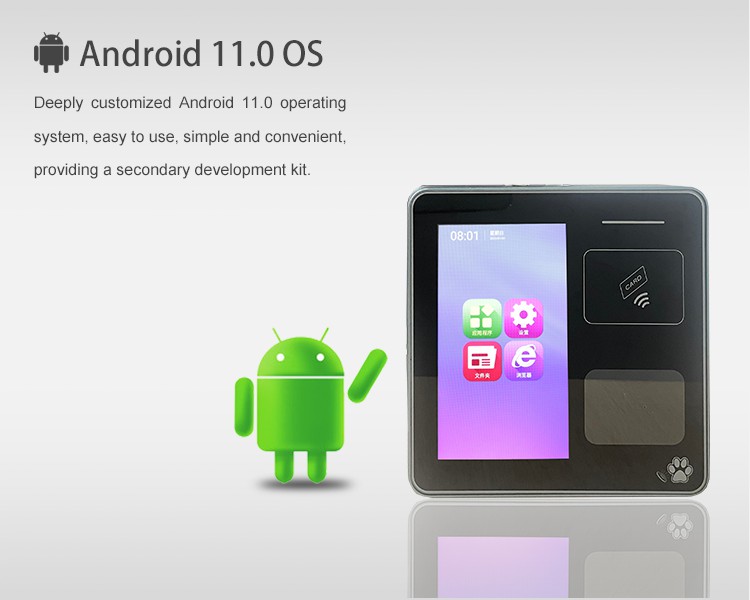

Basic configuration	Operating System	Android 11

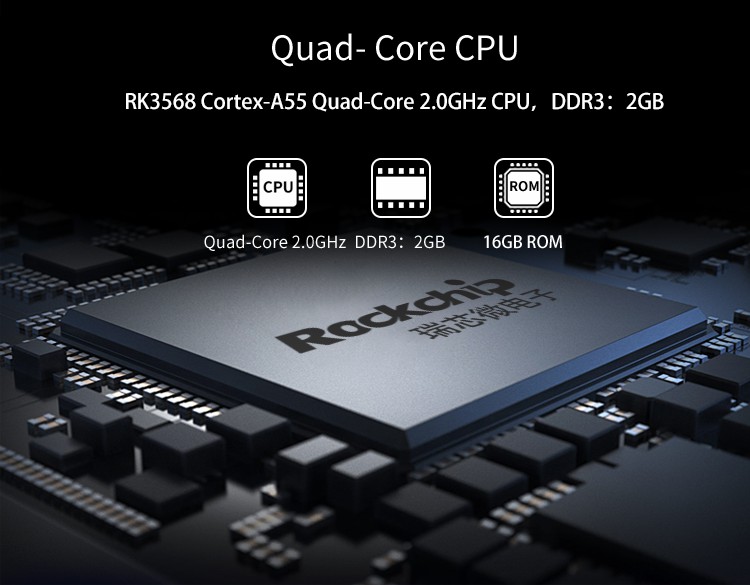

	CPU	RK3568,Cortex-A55 quad-core, frequency 2.0GHz
	ROM	2GB
	RAM	16GB

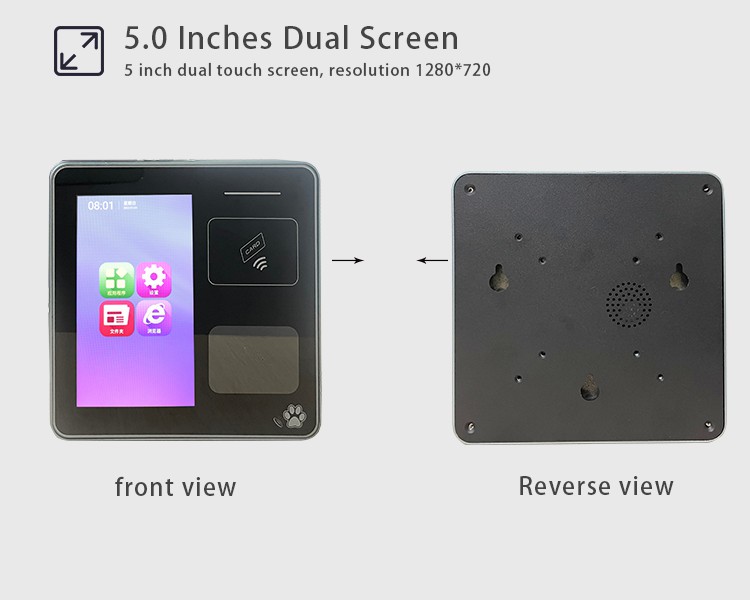

	Home screen	5 inches, LED backlight, 720*1280 resolution, with capacitive touch screen, support multi-touch operation

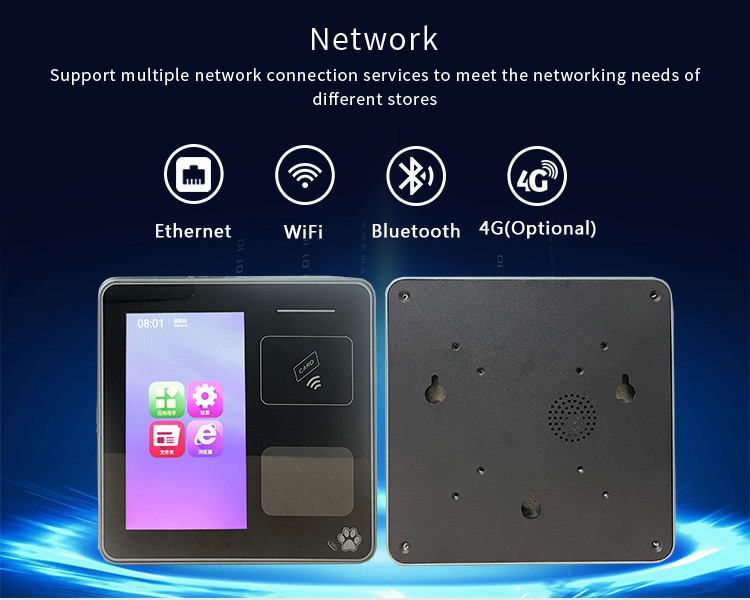

	Ethernet	1 * RJ45, support TCP/IP standard wired network communication, 10M/100M adaptive
	WIFI	Support IEEE 802.11b/g/n
	Power Adapter	12VDCPower Adapter
	Speaker	Large volume

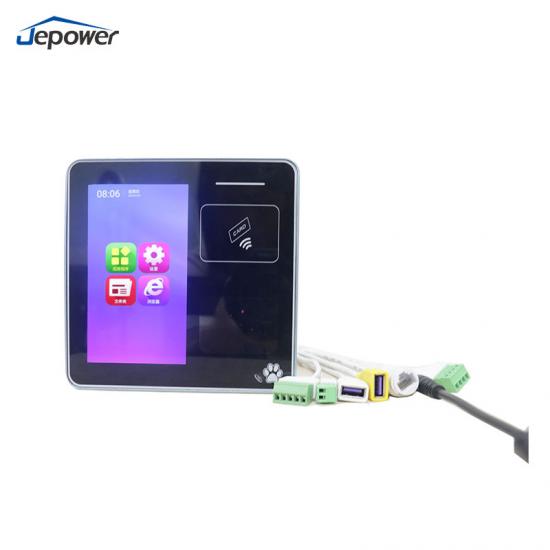

Peripheral Interface	USB2.0 interface	1 standard Type-A USB HOST interface (white) 1 standard Type-A USB OTG interface (yellow)）
	DC power supply port	1 DC power supply port, DC5521
	Ethernet interface	1 RJ45 Ethernet interface (10M/100M adaptive)
	Relay Interface	1 way to open the door signal output
	Wiegand interface	1 Wigan 26/34 output, 1 Wigan 26/34 input
	Serial port	1 RS232 interface

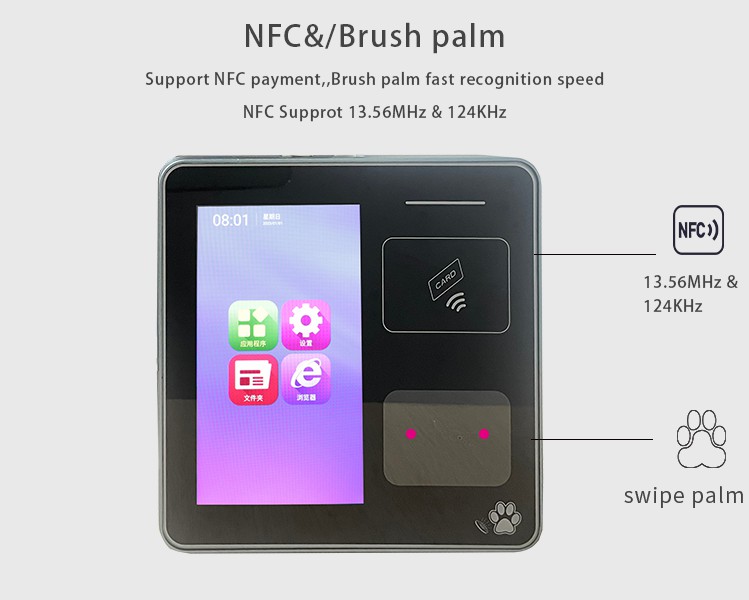

Optional function	Non-contact card reader module (NFC card reader)	13.56MHz High-frequency card reader module, support ISO/IEC 14443A、ISO/IEC14443B，FeliCa，Mifare 1K/4K，NFC Forum tag， ISO/IEC 15693/ICODE, NFCIP-1, NFCIP-2 agreement
	Palm vein identification palm paymentet	Support the collection and recognition of palm veins, and support palm payment. Verification method: Palmar vein Comparison mode: Upper computer comparison verification (backend comparison), 1:1 or 1: N Verification speed: backend comparison: 1:10000 ＜ 1 second Recognition distance: 15-30cm directly above the device Adaptation angle: Horizontal plane rotation 360 °, horizontal plane angle rotation ± 10 ° Verification accuracy: The rejection rate (FRR) shall not exceed 0.1%, and the false acceptance rate (FAR) shall not exceed 0.0001%.
	4GCommunication	4G full netcom module
