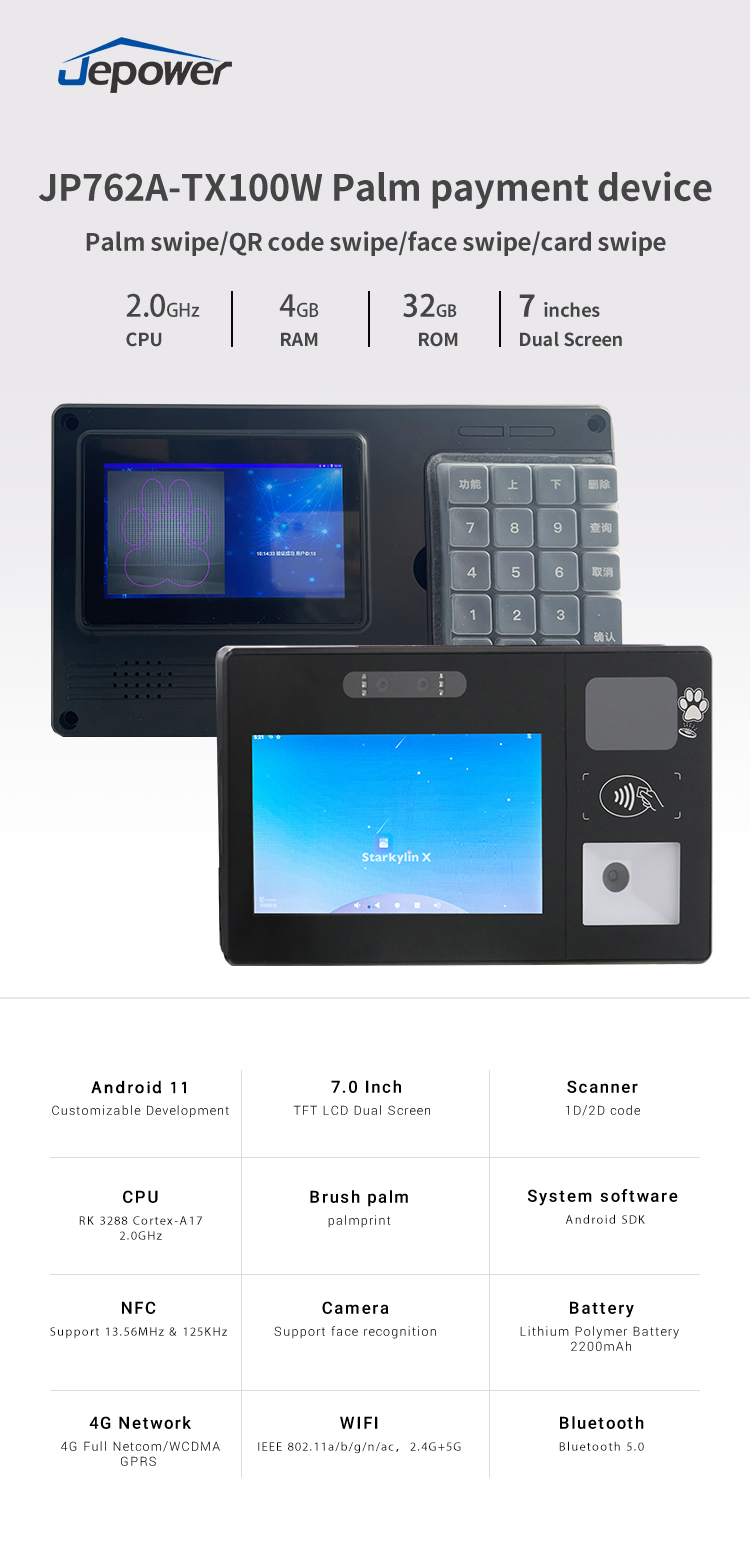

Product large model

TX100W

Sub model

TX100W-7

TX100W-8/ TX100W-9

TX100W-A

Basic configuration

operating system

Android 7.1

Android 11

Android 9.0

CPU

RK3288, Cortex-A17 quad core, maximum frequency 1.8GHz

RK3568, Cortex-A55 quad core, maximum frequency 2.0GHz

Qualcomm SDM450, Cortex-A53 octa core, maximum frequency 1.8GHz

Memory

DDR3：2GB

DDR4：2GB/4GB

DDR3：2GB

storage

16GB

16GB/32GB

16GB

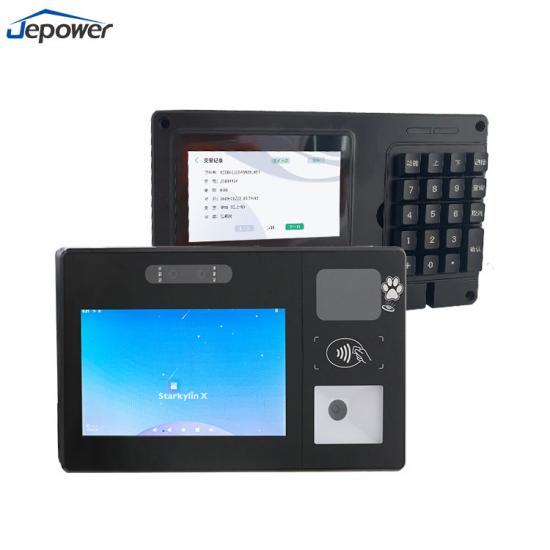

Main screen/operation screen

5 inches, LED backlight, resolution 1280 * 720

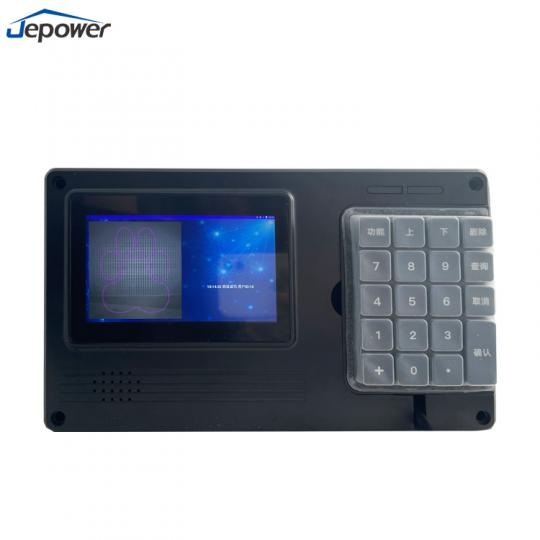

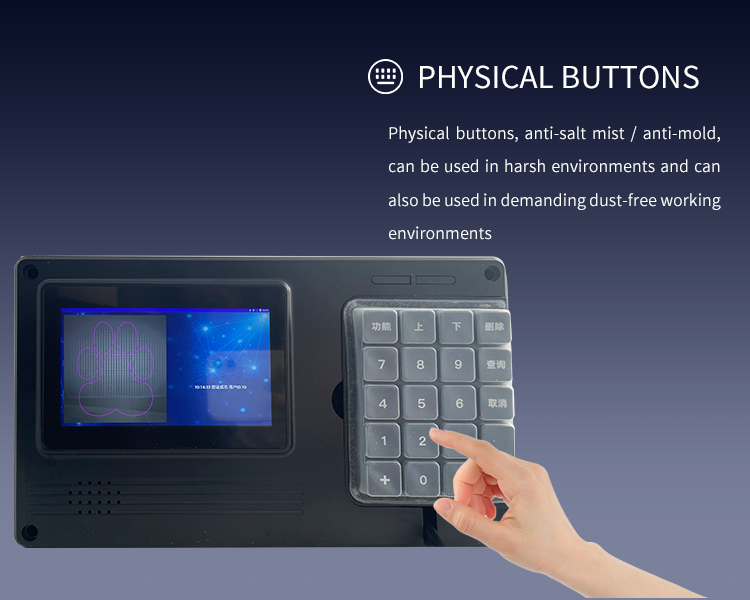

Key

19 key detachable waterproof and dustproof mechanical keyboard

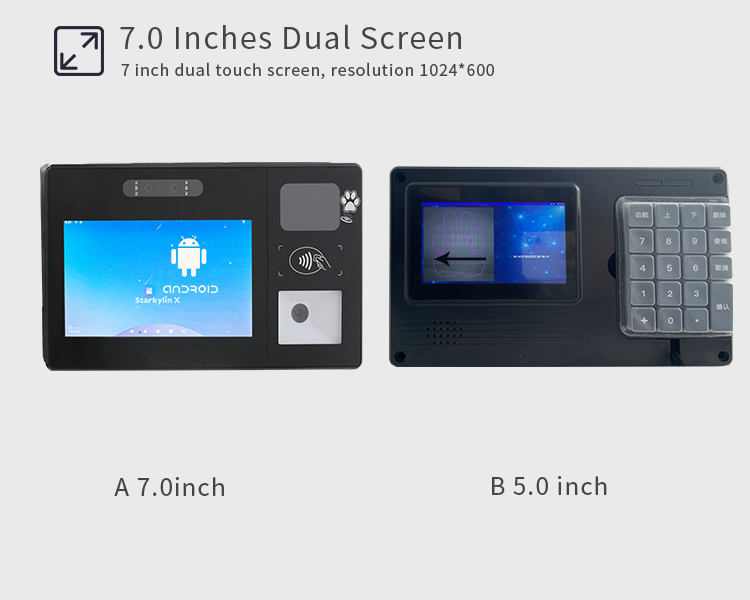

Secondary screen/customer screen

7-inch, LED backlight, optional capacitive touch screen, supports multi touch

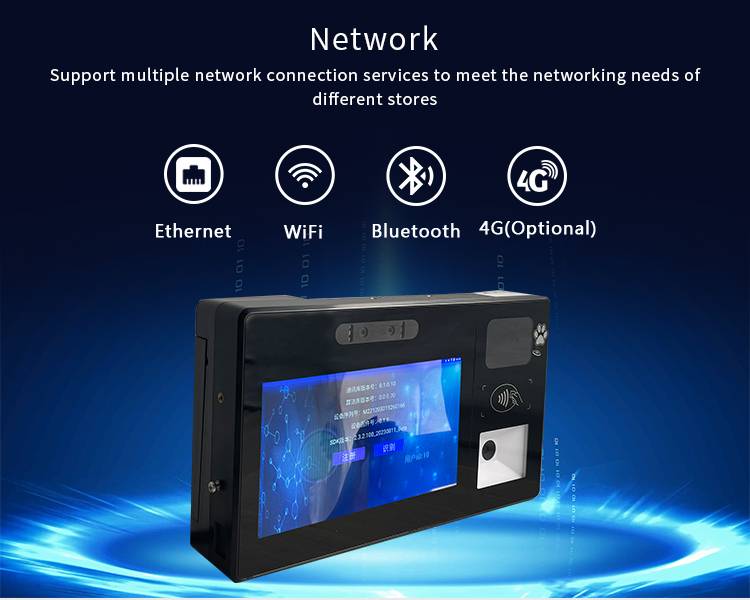

Ethernet

1 * RJ45, supports TCP/IP standard wired network communication, 10M/100M adaptive

1 * RJ45, supports TCP/IP standard wired Network communication, 10M/100M adaptive

1 * RJ45, supports TCP/IP standard wired Network communication, 10M/100M adaptive

WIFI

IEEE 802.11b/g/n

IEEE 802.11a/b/g/n/ac，2.4G+5G

IEEE 802.11a/b/g/n/ac，2.4G+5G

Bluetooth

4.2

5.0

4.2BLE

The power adapter

12VDC power adapter

speaker

High volume speaker with a power of 3W, supporting voice broadcasting

Card slot

SIM card slot x 1, optional PSAM card slot x 2

System software development

Android SDK

Application Environment

Support Java language

Peripheral interface

USB 2.0 interface

2 standard Type-A USB interfaces (including 1 USB debugging port)

Ethernet interface (RJ45)

1 (10M/100M adaptive)

1 (10M/100M adaptive)

1 (10M/100M adaptive)

parts

The power adapter

Standard configuration, 12V3A/medium standard plug-in wall DC5.5 * 2.5

Bracket

Optional hanging bracket, rotating hanging bracket, desktop bracket

Physical specifications

size

235(L)*190(W)*60(T)mm

Packaging size

330(L)*235(W)*110.63(T)mm

Net weight

The standard weight is about 1.2KG

optional function

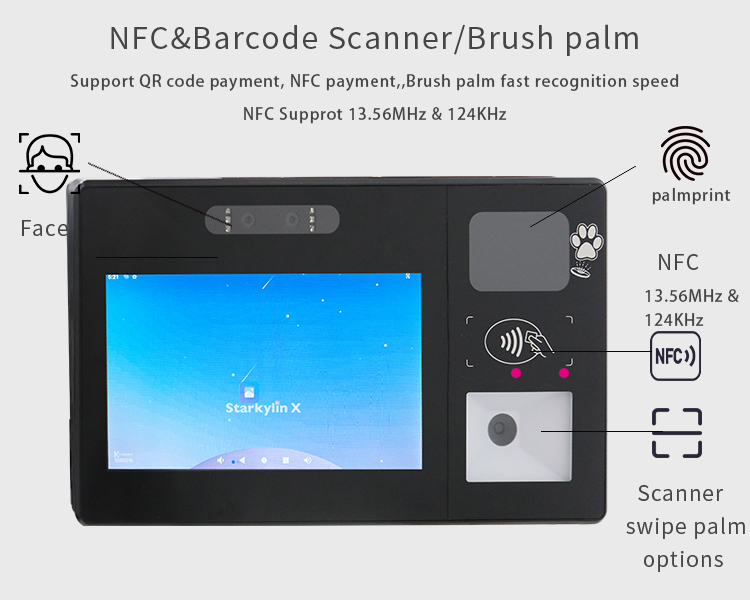

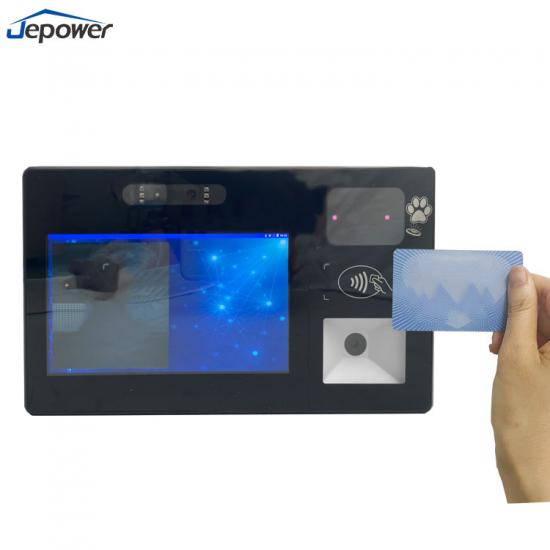

Non contact card reading module (NFC card reading)

13.56MHz high-frequency card reading module, supporting ISO/IEC 14443A, ISO/IEC 14443B, FeliCa, Mifare 1K/4K, NFC Forum tag, ISO/IEC 15693/ICCODE, NFCIP-1, NFCIP-2 protocols

2D scanning

Support mainstream one-dimensional/two-dimensional barcode scanning, support scanning payment

Secondary screen/customer screen touch screen

Capacitive touch screen, supporting multi touch

Main screen/operation screen touch screen

Capacitive touch screen, supporting multi touch

PSAM card module

Supports two PSAM card slots and ISO7816 standard

4G communication

Support China Mobile, China Telecom, China Unicom 4G full network, and support IoT cards

LTE FDD: B1/3/5/8

LTE TDD: B34/39/40/41

Built in battery

7.4V，2200mAh

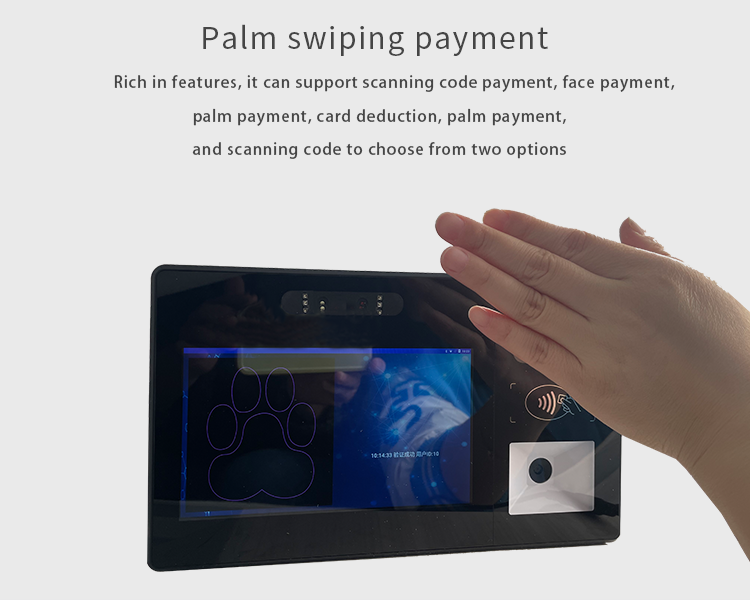

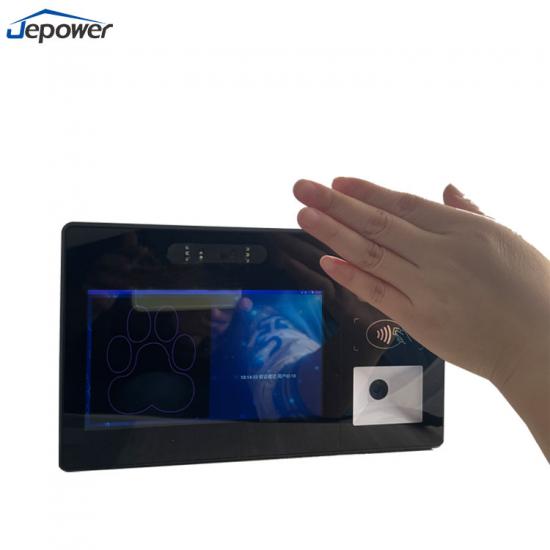

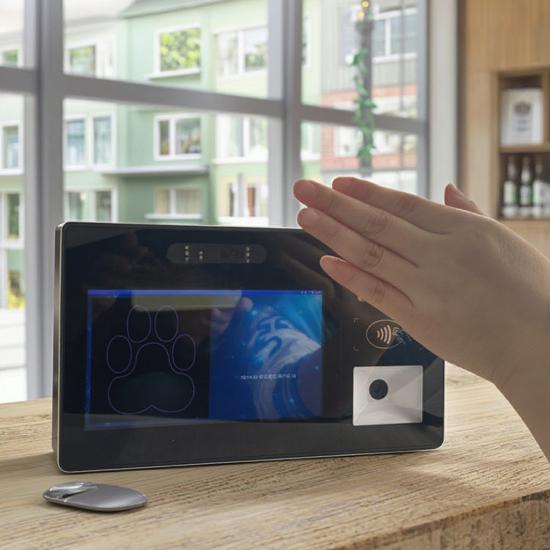

Palm swipe payment/palm vein recognition

Identification signs: palm veins, palm lines

Recognition mode: upper computer verification (post comparison) 1:1 or 1: N

Recognition speed: Upper computer verification (later ratio) 1:10000 less than 1 second

Recognition distance: 15-30 cm directly above the device

Adaptation angle: Horizontal rotation within ± 360 °, tilt within ± 10 °

The largest user

Determined by the storage capacity and performance of the upper computer

Recognition accuracy: False rejection rate FRR ≤ 0.1%, false recognition rate FAR ≤ 0.0001%

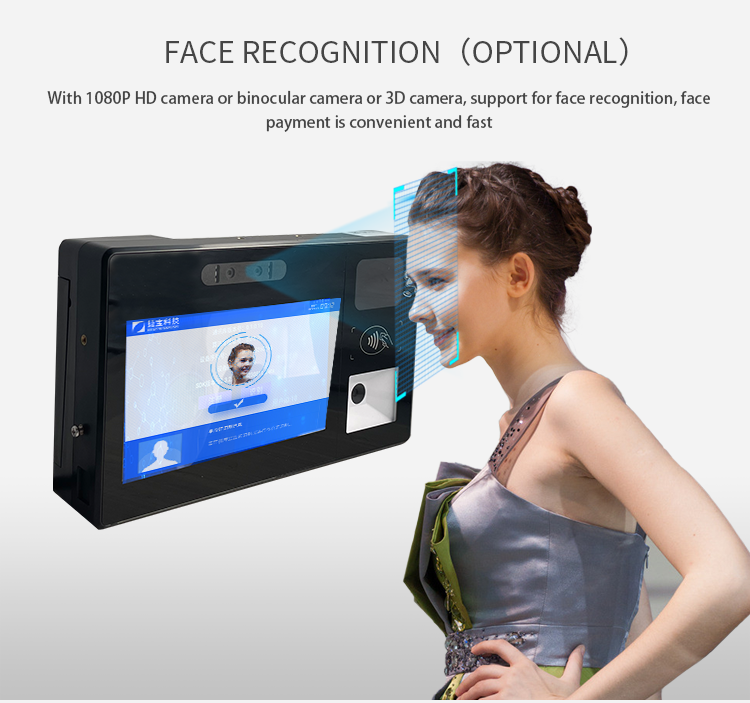

3D structured light camera

3D structured light camera, supporting facial recognition and WeChat face recognition payment

Binocular Camera (MIPI)

N/A

MIPI interface, supporting facial recognition and liveness detection

N/A

Dual camera (USB)

Hardware with wide dynamic range, supporting facial recognition and liveness detection

Monocular camera

2 million pixel monocular camera, supporting facial recognition

Note: 3D structured light camera, binocular camera (MIPI), binocular camera (USB), and monocular camera are four options.
