Palm vein payment device_palm reader payment_palm payment device

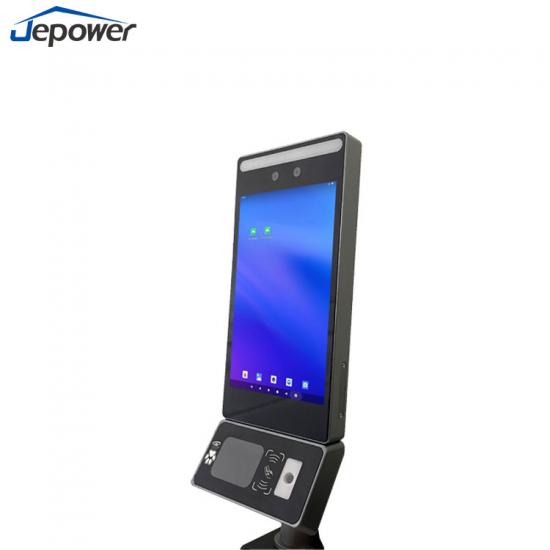

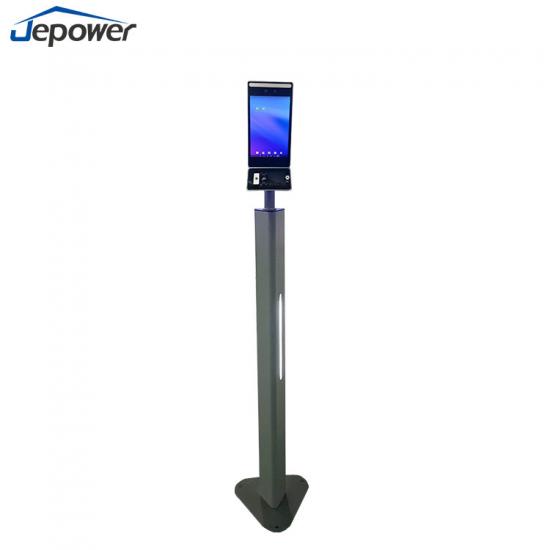

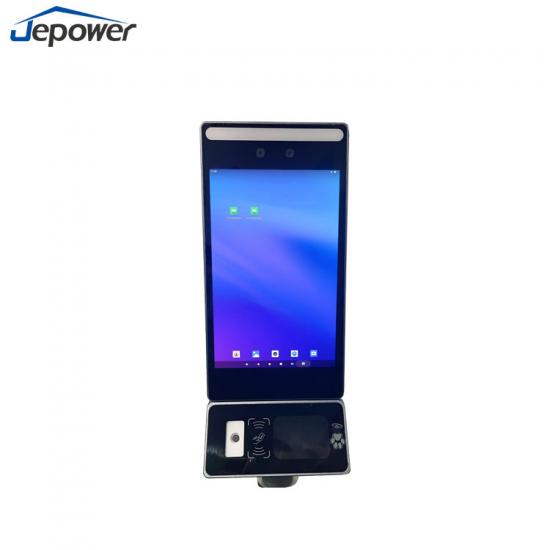

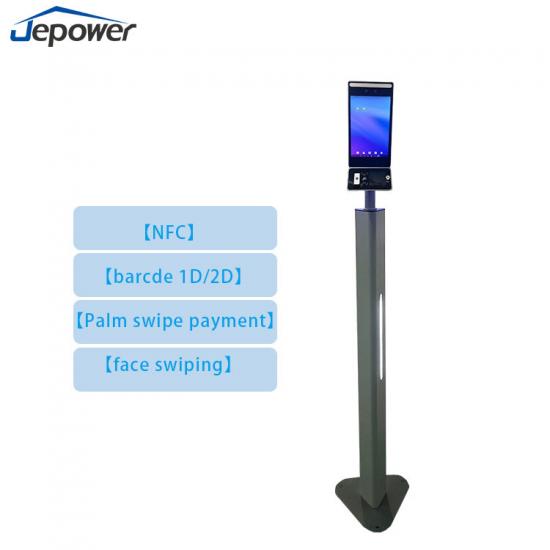

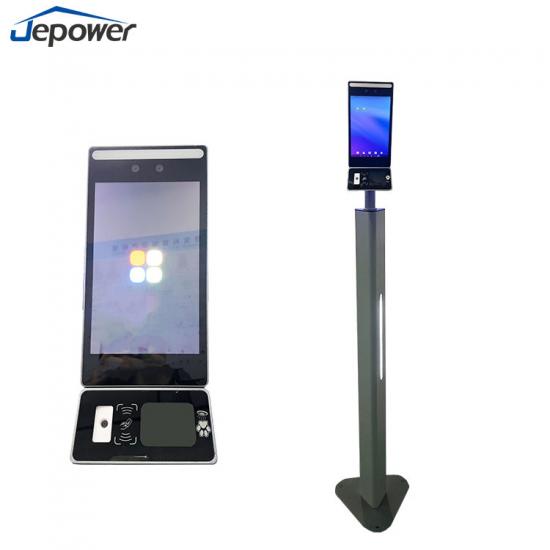

Channel based swipe Wall-mounted Palm Payment Terminal supports scanning NFC facial recognition payment Palm swiping payment device palm reader payment

model：TX101 Android11 Face swiping, Palm swiping payment devicemachine

Brand:
Jepower
Item NO. :
TX101
Product Origin:
Guangzhou
Color:
Black
Shipping Port:
Guangzhou
Lead Time：
7

Features and Advantages

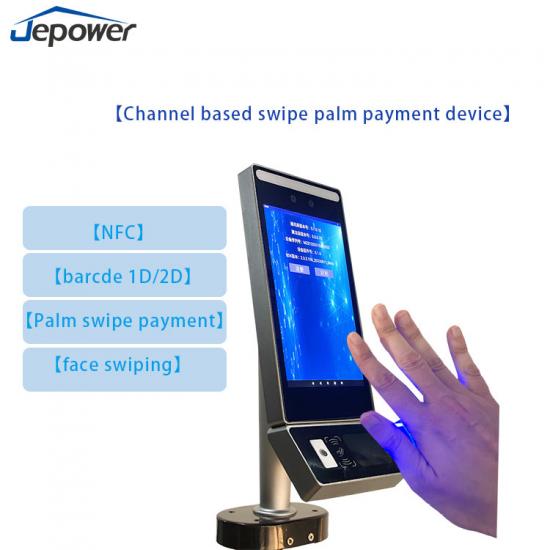

Channel based swipe palm payment device Android system 11

supports scanning NFC facial recognition payment Palm swiping payment device palm reader payment

TX101 channel type card code face palm integrated

consumer machine

Android multi-function card code face palm access control all-in-one machine

Product Features：

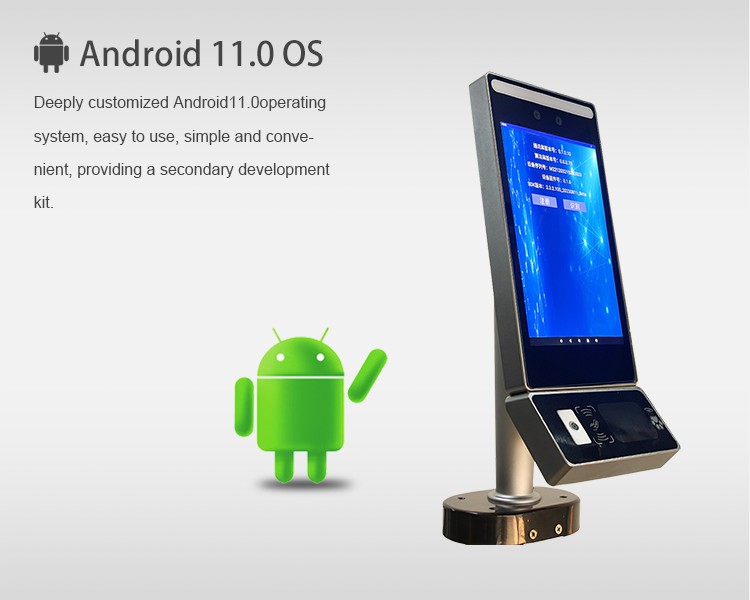

·Android system, easy to develop, good compatibility
·Four-proof design, dust-proof smoke-proof waterproof steam insect-proof, long service life
·Rich functions, can support credit card, scan code, brush palm, brush face
·A variety of interfaces, support switch signal, Wiegand, RS232

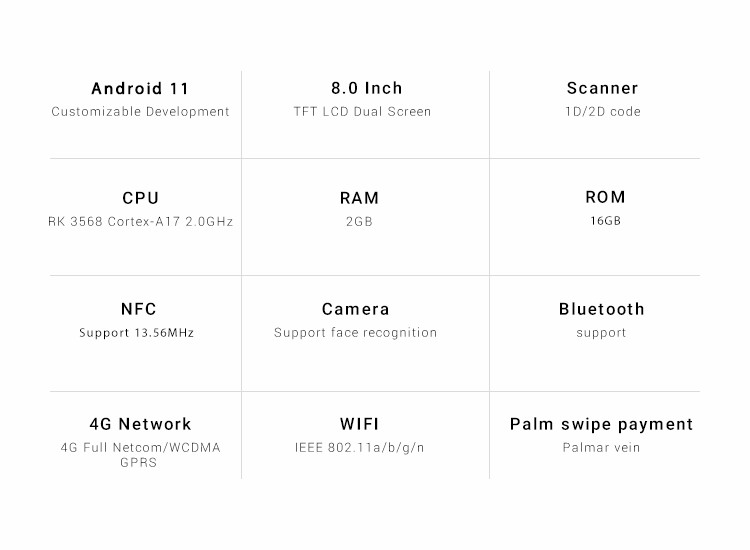

TX101 basic parameters

Basic configuration

Operating System

Android 11

CPU

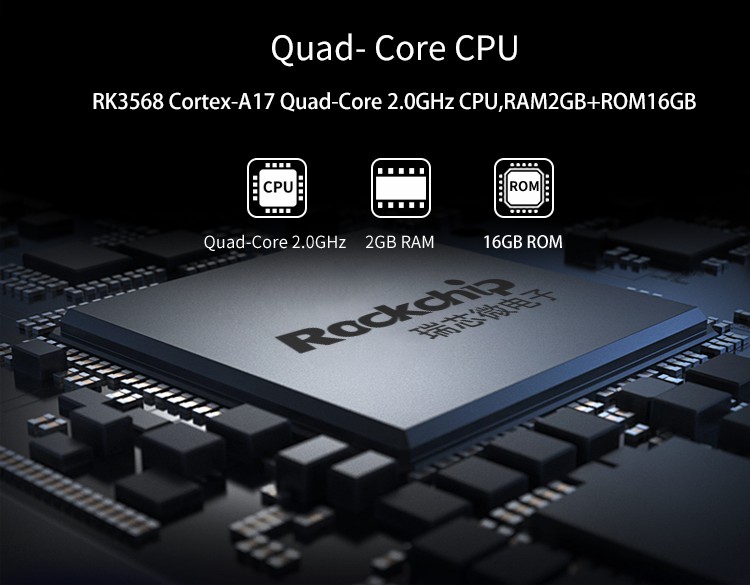

RK3568,Cortex-A55 quad-core, frequency 2.0GHz

ROM

2GB

RAM

16GB

Home screen

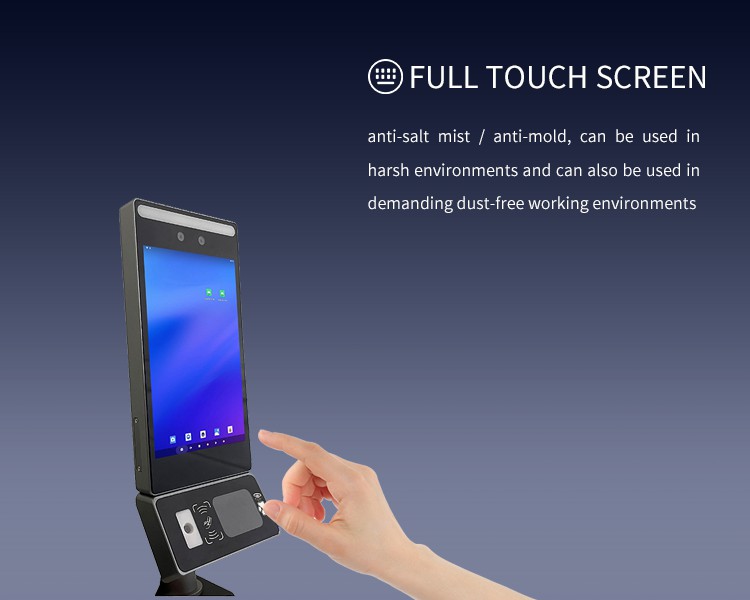

8 inches, LED backlight, 8001280 resolution, with capacitive touch screen, support multi-touch operation

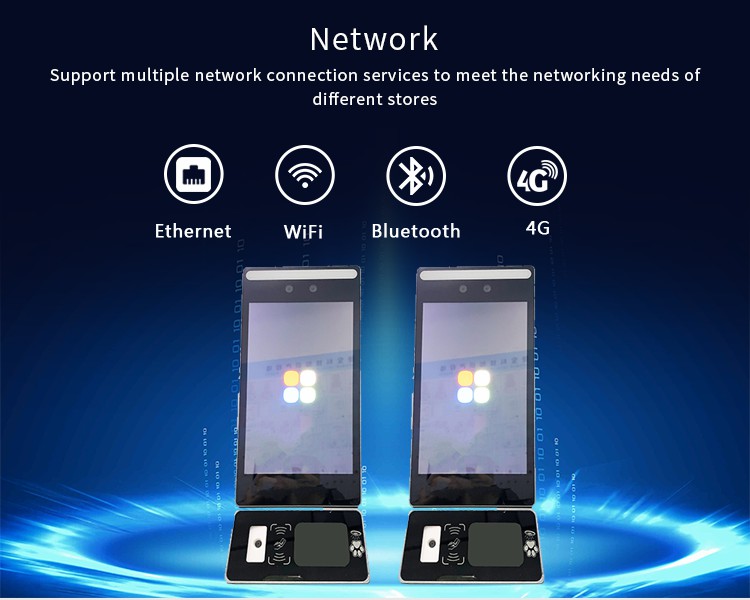

Ethernet

1 RJ45, support TCP/IP standard wired network communication, 10M/100M adaptive

WIFI

Support IEEE 802.11b/g/n

Power Adapter

12VDC power adapter

Speaker

Large volume speaker

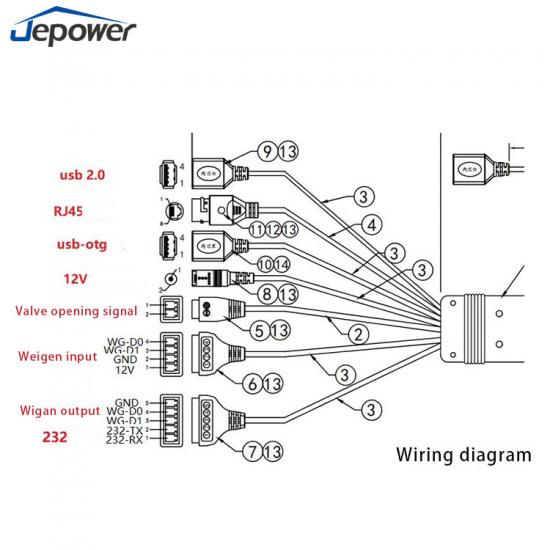

Peripheral Interface

USB2.0 interface

One standard Type-A USB HOST interface

1 standard Type-A USB OTG interface

Serial port

1 RS232 interface

Wiegand interface

1 Wigan 26/34 output, 1 Wigan 26/34 input

Relay Interface

1 way to open the door signal output

Ethernet interface

1 RJ45 Ethernet interface (10M/100M adaptive)

Optional function

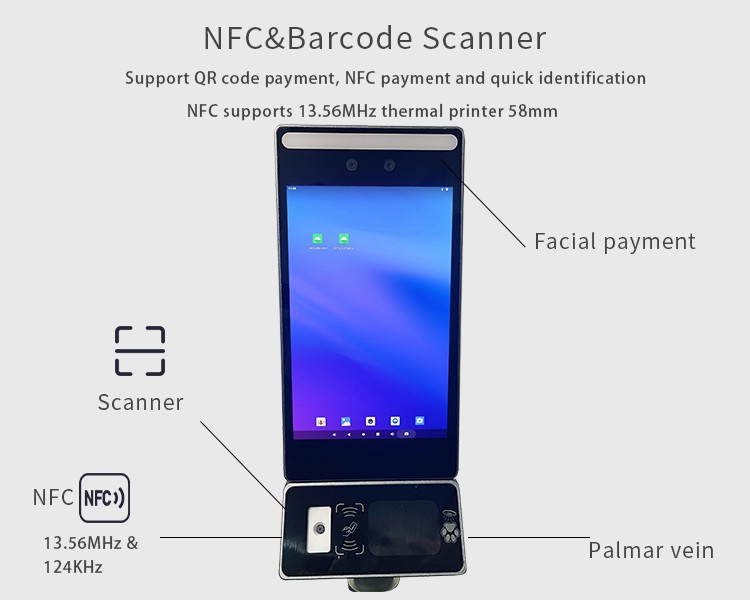

Non-contact card reader module (NFC card reader)

13.56MHzHigh-frequency card reader module, support ISO/IEC 14443A、ISO/IEC14443B，FeliCa，Mifare 1K/4K，NFC Forum tag， ISO/IEC 15693/ICODE, NFCIP-1, NFCIP-2 Agreement

two-dimensional scanning

Support mainstream one-dimensional/two-dimensional barcode scanning, support scan code payment

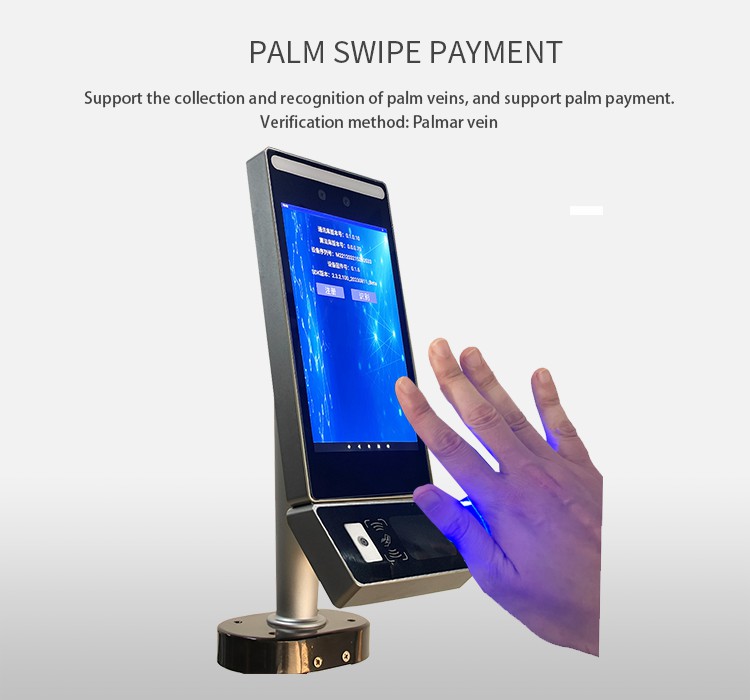

Palm vein identification/ Swipe palm payment

Support palm vein collection and identification, support swiping palm payment.

Verification method: palm vein

Comparison mode: host computer comparison verification (post-comparison),1:1 or 1:N

Verification speed: after ratio: 1:10000<1 second

Identification distance: 15-30cm directly above the equipment

Adaptation angle: horizontal plane rotation 360 °, horizontal plane angle rotation ± 10 °

Verification accuracy: the true rejection rate FRR is not more than 0.1%, and the false recognition rate FAR is not more than 0.0001%.

binocular camera

Binocular 200W pixels, support face recognition, support wide dynamic
