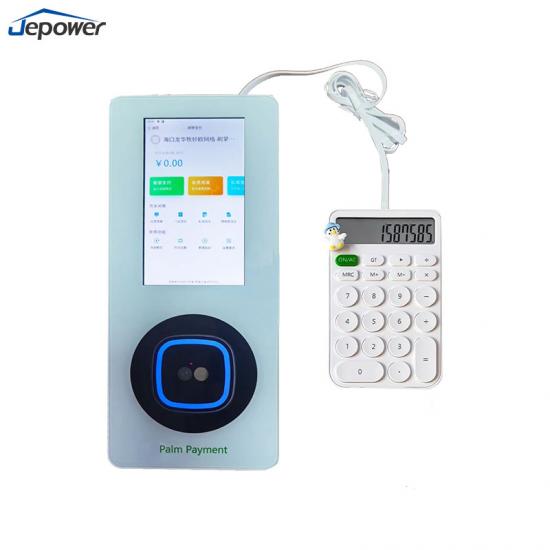

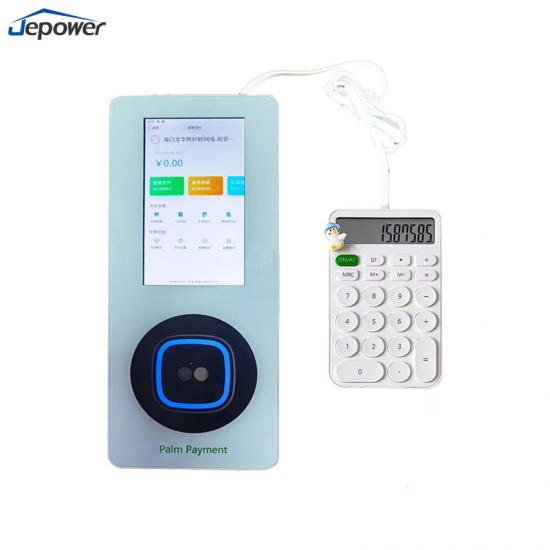

biometric vein scanne 5. 0Inch palm swiping payment device, biometric palm vein scanner Hand vein scanner payment Support QR-code scanning

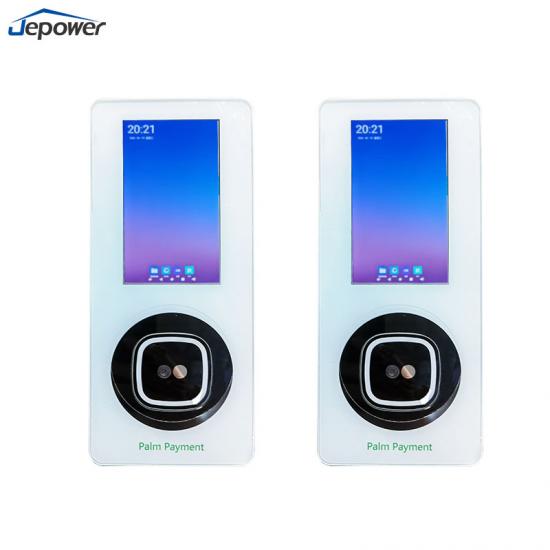

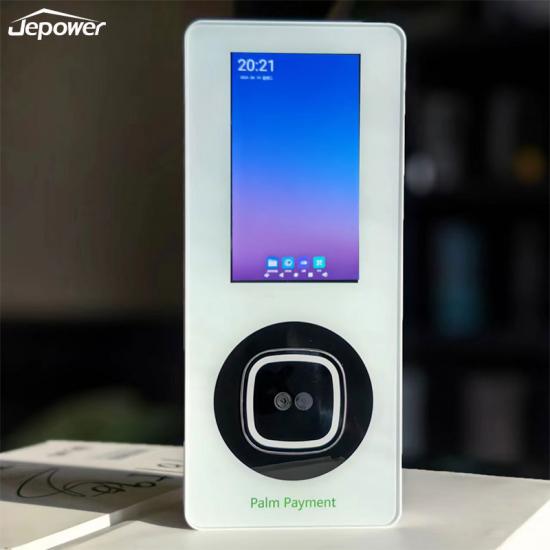

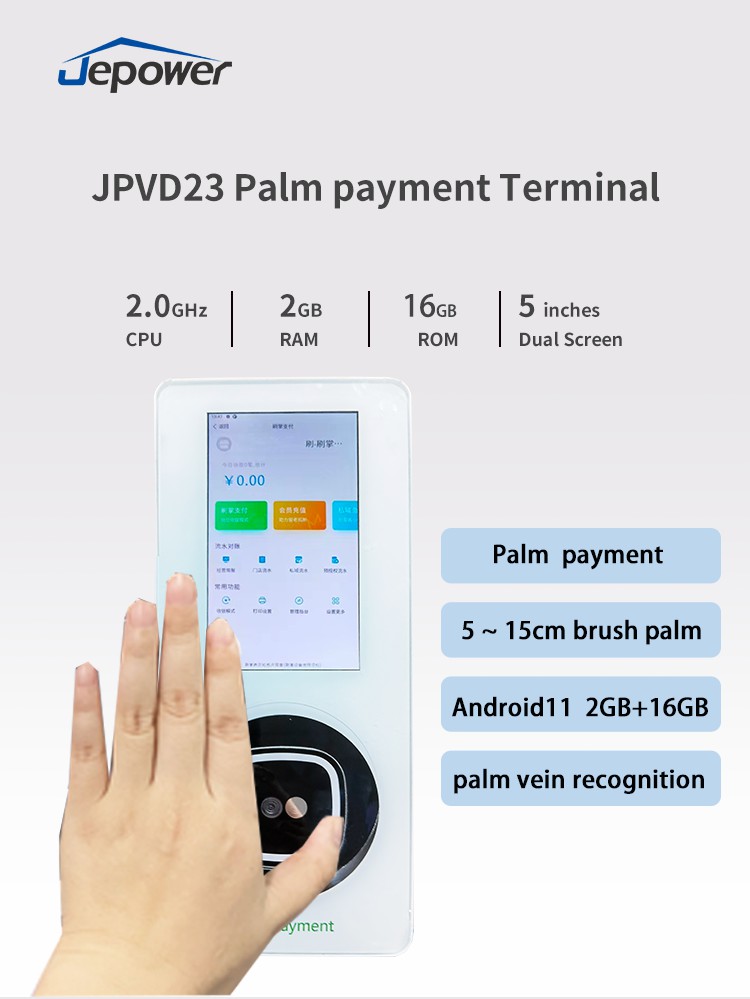

Model：JPVD23 Android11.0 5inch biometric palm vein recognition payment machine

biometric vein scanne 5. 0Inch palm swiping payment device, biometric palm vein scanner Hand vein scanner payment Support QR-code scanning

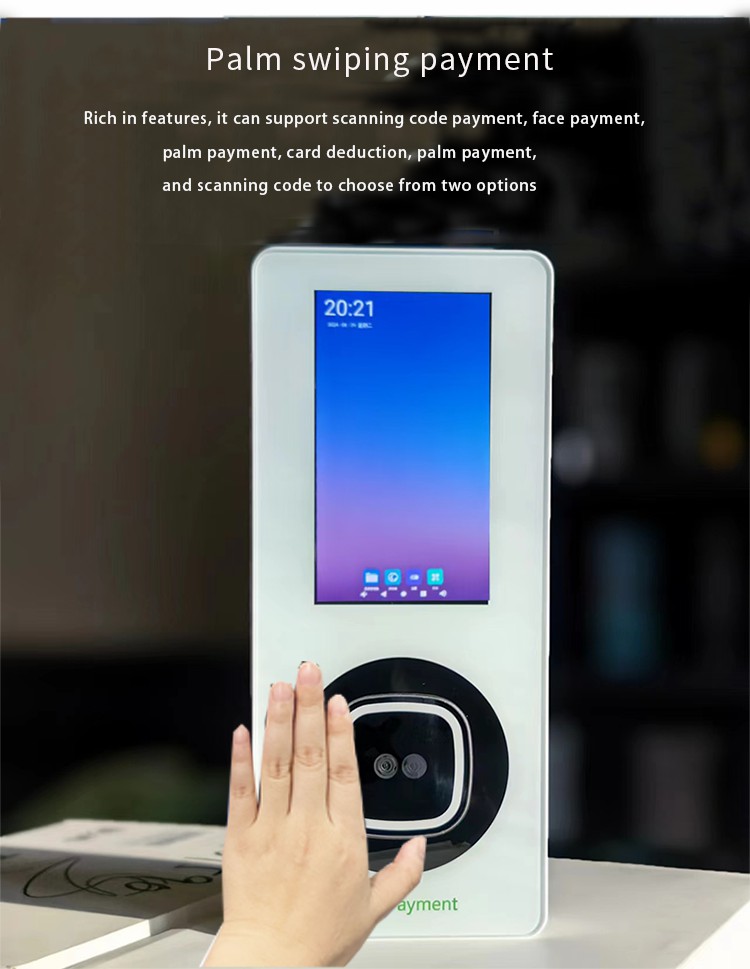

Convenience: No card or cash is required for palm swiping payment.

Users only need to scan with their palms to complete payment,

thereby improving the convenience of payment and reducing the burden on their wallets.

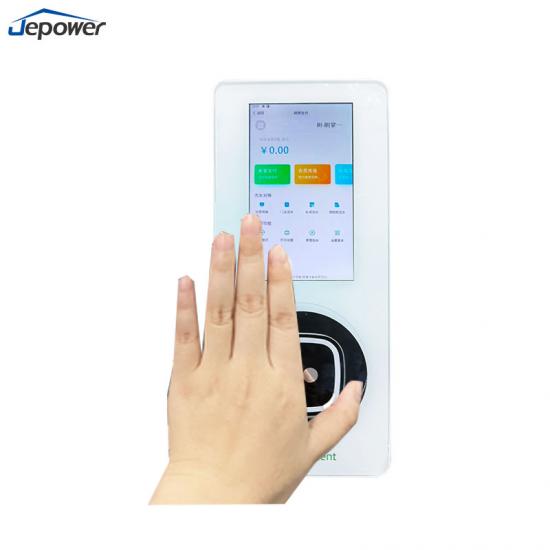

palm vein payment Fast transaction: Palm swiping payment is usually very fast,

and users can easily place their palms on the scanner to complete the transaction,

saving the waiting time of traditional payment methods.

Contactless payment: Especially during the outbreak of the epidemic

, contactless payment has become particularly important

. Palm swiping payment is a contactless payment method

that helps reduce exposure risks and makes users feel safer.

1:Product characteristics

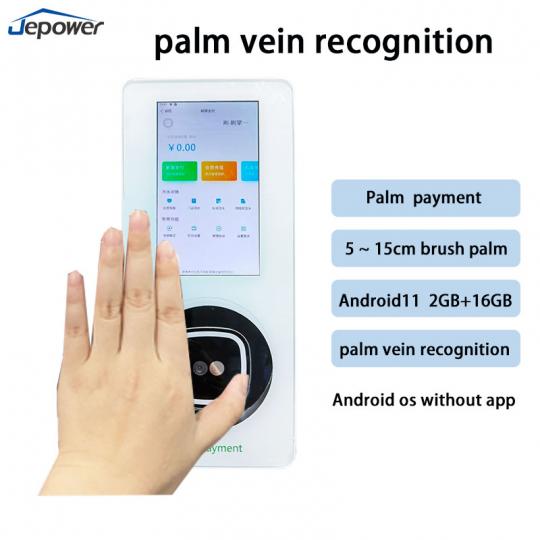

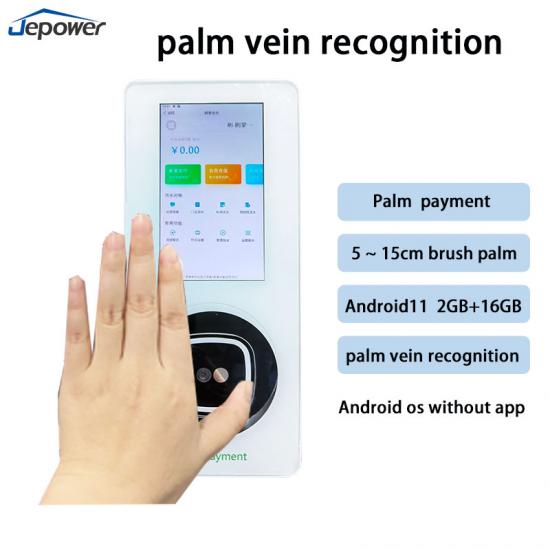

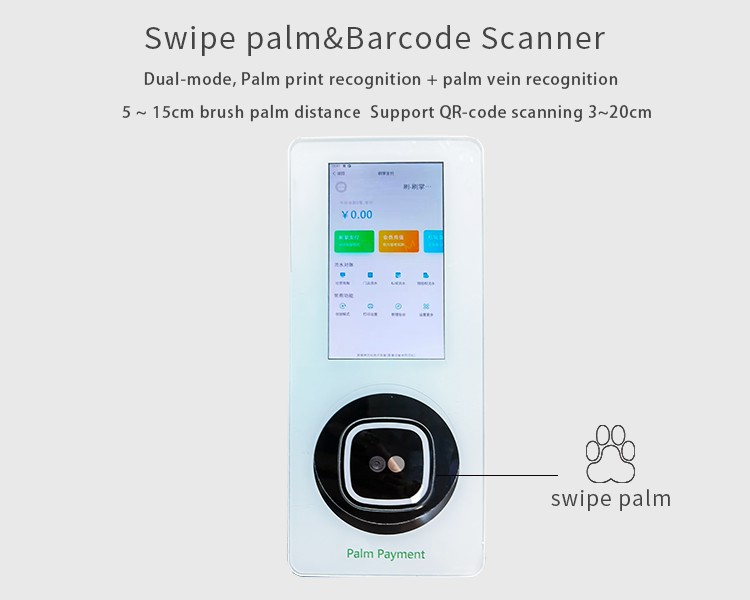

Dual-mode, Palm print recognition + palm vein recognition

Polarizing light system

RGB / IR image alignment，built-in Palm AE ，customized interactive lamp efficiency system large field of view (FOV), 5 ~ 15cm brush palm distance

2. Applicable scenarios

Palm ID Identity identification and permission control.

Subway access gate machine and retail payment.

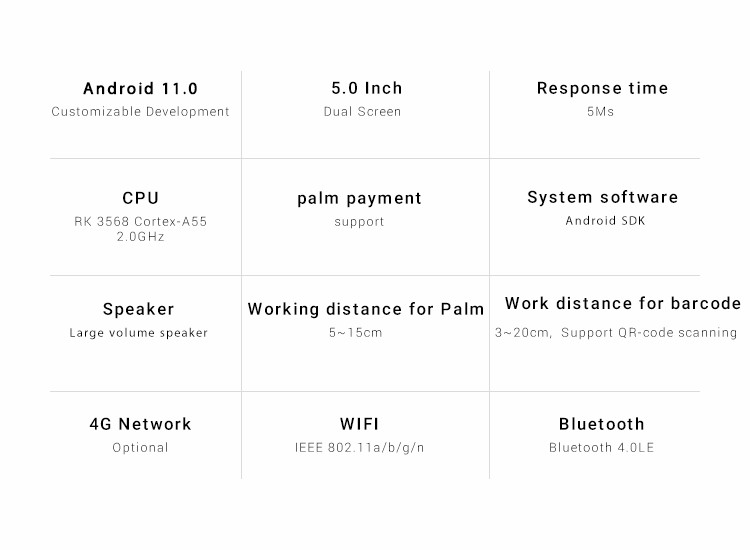

3: Basic parameters

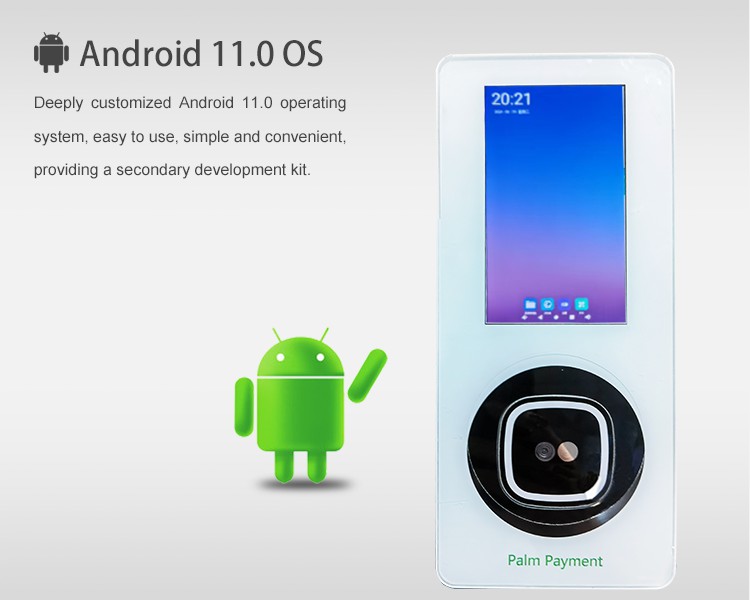

Basic configuration parameters	Operating System	Android 11

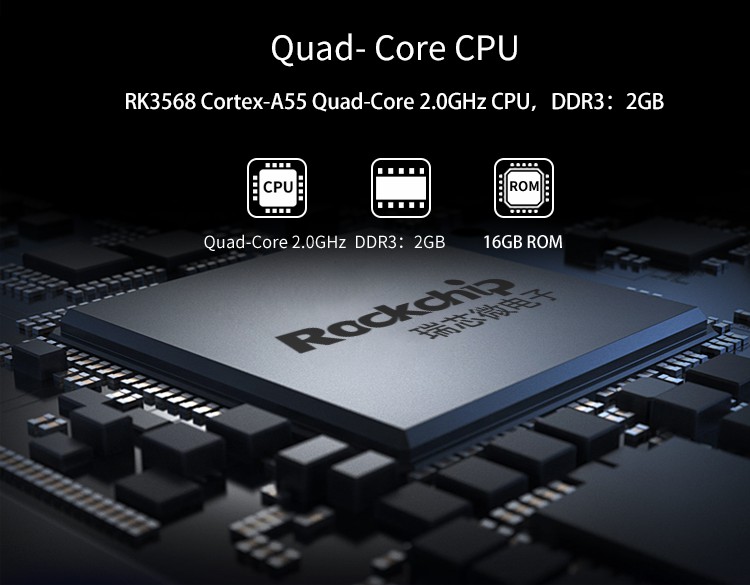

	CPU	RK3568,Cortex-A55 quad-core, frequency 2.0GHz
	GPU	Mali-G 52 2EE
	NPU	1Tops
	ROM	2GB
	RAM	16GB

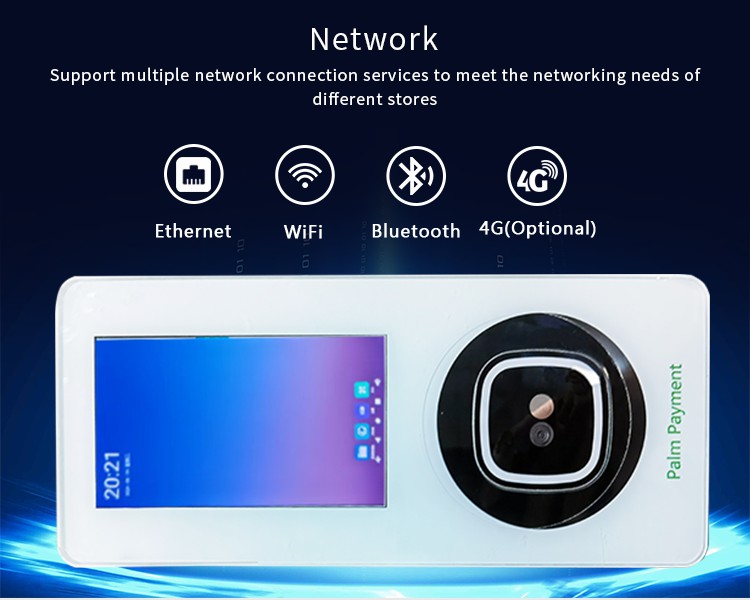

	Ethernet	1 * RJ45, support TCP/IP standard wired network communication, 10M/100M adaptive
	WIFI	Support IEEE 802.11a/b/g/n, dual-band
	4G	Optional
	Bluetooth	Bluetooth V4.0
	Power Adapter	12VDC power adapter
	Speaker	Large volume speaker
	Interface	USB 2.01 USB 2.0/OTG1 SIM card slot1 RJ451 DC-in*1

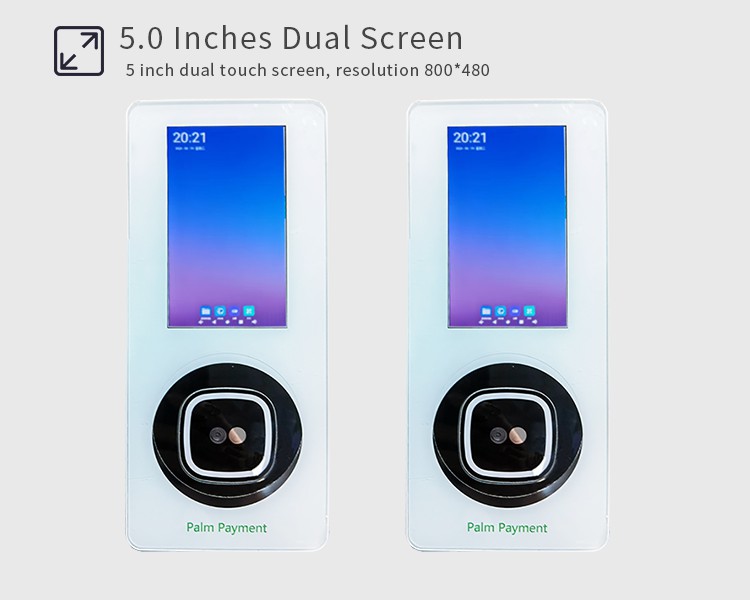

Technical parameters of LCD screen	Display size	5 inch
	Display scale	16:9
	Backlight	LED
	Pixel size	0.0642*0.1790mm
	Display area	Horizontal: 61.56 mm Vertical:109 53mm
	Optimum resolution	800*480@60Hz
	Response time	5ms
	Pigment	16.7million
	Luminance	200cd/m2 highlight
	Contrast ratio	1000:1
	Viewing angle	89/89/89/89 (Typ.)(CR≥10)

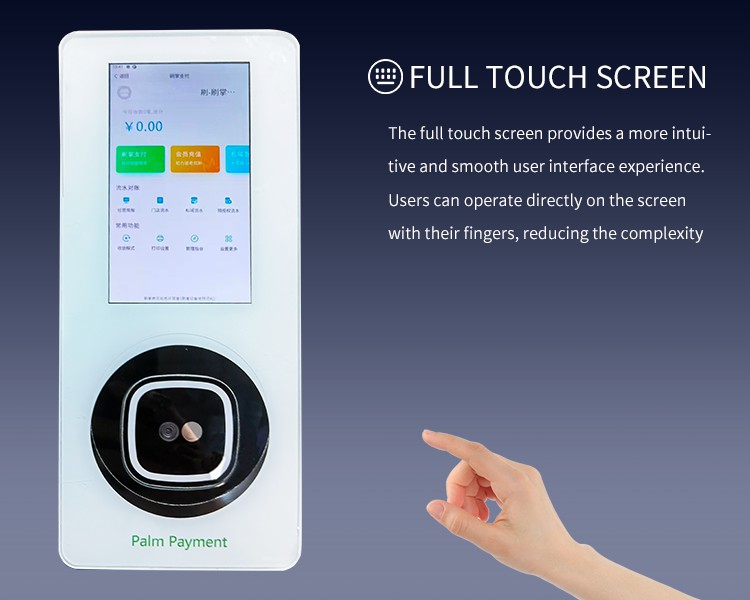

Technical parameters of touch screen	Touch screen type	Capacitance touch screen
	Cover-plate glass	2.4MM
	Light transmittance	87%
	Surface hardness	7H
	Touch points	10
	Touch reaction time	≤10ms
	Touch method	Finger/capacitance pens
	Single touch life	≥50000 thousands
Machine parameters	External dimensions	246.610857.3mm
	Power supply	DC:12V/2A
	Ambient temperature	working: 0℃-50℃ storage: -20℃-60℃
	Ambient humidity	working:20%-80% storage: 10℃-90℃
	Operating altitude	<3,000 m
	Warranty	1year

4, Specifications of the Palm module

Basic configuration parameters	Operating System	Android 11
	CPU	RK3568,Cortex-A55 quad-core, frequency 2.0GHz
	GPU	Mali-G 52 2EE
	NPU	1Tops
	ROM	2GB
	RAM	16GB
	Ethernet	1 * RJ45, support TCP/IP standard wired network communication, 10M/100M adaptive
	WIFI	Support IEEE 802.11a/b/g/n, dual-band
	4G	Optional
	Bluetooth	Bluetooth V4.0
	Power Adapter	12VDC power adapter
	Speaker	Large volume speaker
	Interface	USB 2.01 USB 2.0/OTG1 SIM card slot1 RJ451 DC-in*1
Technical parameters of LCD screen	Display size	5 inch
	Display scale	16:9
	Backlight	LED
	Pixel size	0.0642*0.1790mm
	Display area	Horizontal: 61.56 mm Vertical:109 53mm
	Optimum resolution	800*480@60Hz
	Response time	5ms
	Pigment	16.7million
	Luminance	200cd/m2 highlight
	Contrast ratio	1000:1
	Viewing angle	89/89/89/89 (Typ.)(CR≥10)
Technical parameters of touch screen	Touch screen type	Capacitance touch screen
	Cover-plate glass	2.4MM
	Light transmittance	87%
	Surface hardness	7H
	Touch points	10
	Touch reaction time	≤10ms
	Touch method	Finger/capacitance pens
	Single touch life	≥50000 thousands
Machine parameters	External dimensions	246.610857.3mm
	Power supply	DC:12V/2A
	Ambient temperature	working: 0℃-50℃ storage: -20℃-60℃
	Ambient humidity	working:20%-80% storage: 10℃-90℃
	Operating altitude	<3,000 m
	Warranty	1year
